Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:

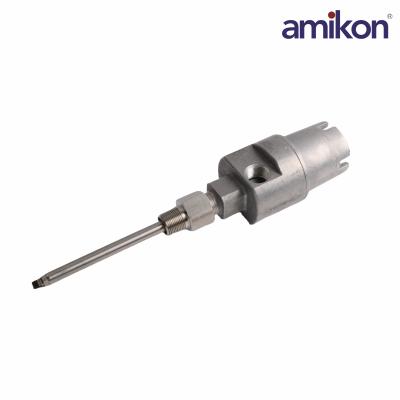

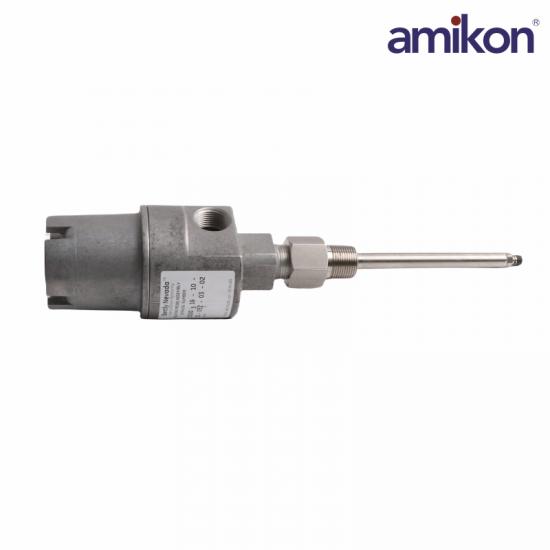

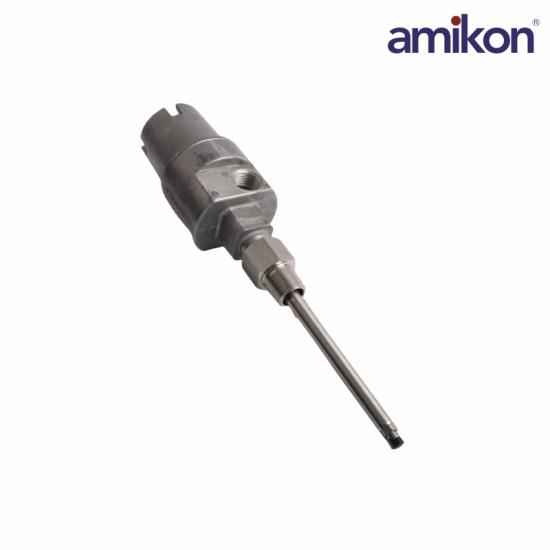

CooModel: 21000-16-05-00-040-03-02
Series: 21000 Proximity Probe Housing Assembly
Probe Type: 5 mm eddy current proximity probe (Code 16)
Probe Cable Length: 5 feet (~1.5 meters)
Extension Cable Length: 40 feet (~12.2 meters)
Total Cable Length: 45 feet (~13.7 meters)
Output Configuration (Code 03): +24 VDC input, –18 VDC output
Shield Grounding (Code 02): Shield grounded at monitor end
Sensitivity: 200 mV/mil (7.87 mV/μm) typical
Measurement Range: ~1.25 mm (depends on system setup)
Operating Temperature: –35°C to +120°C
The21000, 24701, and 164818 Proximity Probe Housing Assembliesare available with Canadian Standards Association (CSA) approvals. They are rated explosion proof for hazardous areas.
You can order hazardous area approved proximity probes with 21000 aluminum and 24701 stainless steel housings for intrinsically safe applications. Both housings are certified as CSA Type 4 enclosures and are fully compliant with the American Petroleum Institute's (API) 670 Standard for externally mounted proximity probe housings.
The 164818 Compact Proximity Probe Housing is also available for applications with space restrictions. Ceramic capped probes are available with the 164818 housing. Sleeve length is determined by the location in which the probe and housing are installed. The probe lead must be longer than the sleeve.
Sleeve lengths longer than 304 mm (12 inches) require additional sleeve support to reduce the vibration associated with unsupported long sleeve lengths.
