Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooClaim Your Exclusive Savings – Get in Touch with Sales Manager Lisa Lin Now
: +86-18965423501
: sales7@amikon.cn
:AMKPLC
|
Manufacturer |
Bently Nevada |
|
Product No. |

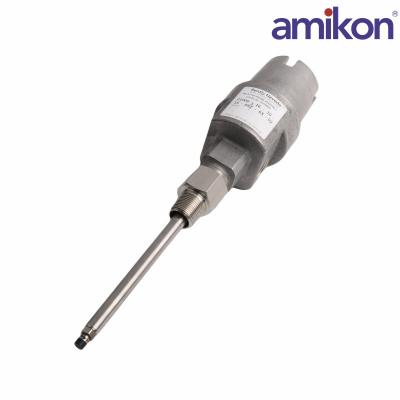

21000-28-05-00-085-03-02 |
|
Probe with Connector ( 28) |
3300 XL 8mm probe, selectable hazardous area approvals |
|
Probe Cable Length ( 05) |
0.5 m (20 in) |
|
Standoff Adapter ( 00) |
No standoff adapter |
|
Probe Penetration ( 085) |
8.5 in |
|
Fittings ( 03) |
One 3/4-14 NPT plug |
|
One 3/4-14 to 1/2-14 NPT reducer |
|
|
One cable seal grip with grommets for the following cable sizes: |
|
|
• 1/8 to 3/16 inches |
|
|
• 1/4 to 5/16 inches |
|
|
• 5/16 to 3/8 inches |
|
|
Mounting Thread ( 02) |
3/4-14 NPT |
The 21000, 24701, and 164818 Proximity Probe HousingAssemblies are available with Canadian StandardsAssociation (CSA) approvals. They are rated explosion prooffor hazardous areas.
You can order hazardous area approvedproximity probes with 21000 aluminum and24701 stainless steel housings for intrinsicallysafe applications. Both housings are certifiedas CSA Type 4 enclosures and are fullycompliant with the American PetroleumInstitute's (API) 670 Standard for externallymounted proximity probe housings.
The 164818 Compact Proximity Probe Housing isalso available for applications with spacerestrictions. Ceramic capped probes areavailable with the 164818 housing.
Sleeve length is determined by the location inwhich the probe and housing are installed. Theprobe lead must be longer than the sleeve.Sleeve lengths longer than 304 mm (12 inches)require additional sleeve support to reduce thevibration associated with unsupported longsleeve lengths.
Frequently Asked Questions
Q : What is the primary purpose of the Bently Nevada 21000?
A : It is a heavy-duty, explosion-proof housing system designed to protect reverse-mount proximity probes in harsh industrial environments.
Q : Should I use thread sealant on the 3/4-14 NPT mounting threads?A : Use a high-quality anti-seize compound or Teflon tape while ensuring compliance with local plant hazardous area codes.
Q : What is the target DC voltage for a standard 3300 XL 8 mm probe gap setup?
A : It is typically gapped near the center of its linear range, which corresponds to roughly -10.0 VDC.
Q : What is the total linear range of the integrated 3300 XL 8 mm probe?
A : The standard linear range is 2.0 mm (80 mils), spanning from -2 VDC to -18 VDC of sensor output.
Product Applications
Oil & Gas: Large centrifugal compressors, reciprocating compressors, natural gas pipeline turbines.
Power Generation: Thermal power turbine generator sets, nuclear power main pumps, pumped storage turbine units.
Petrochemicals: High-power cracked gas compressors, high-pressure crude oil transfer pumps, large fans.
Steel & Heavy Industries: Blast furnace blowers, large rolling mill drive chains, large mining crushers.
