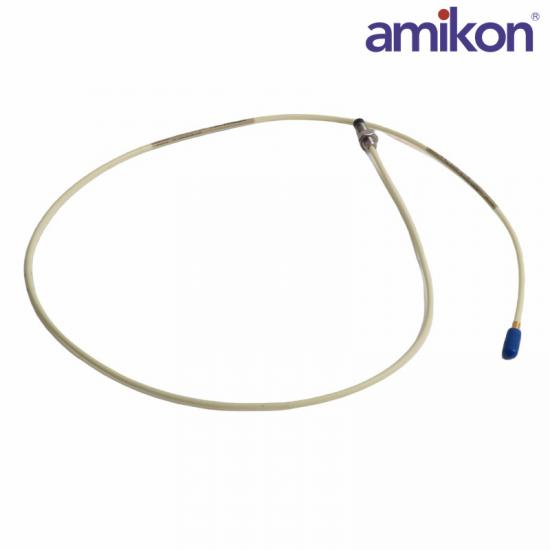

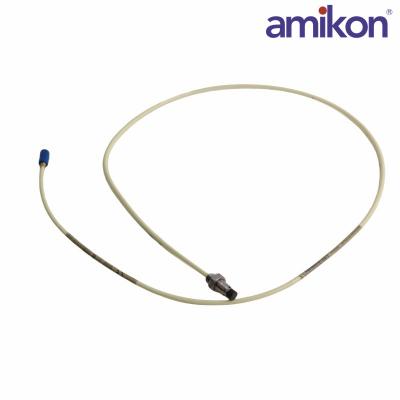

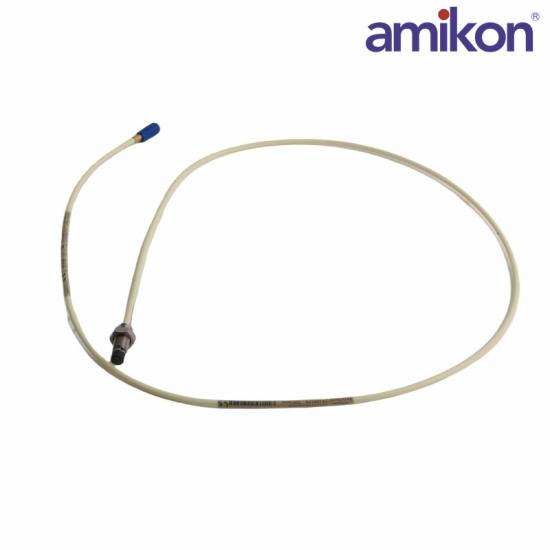

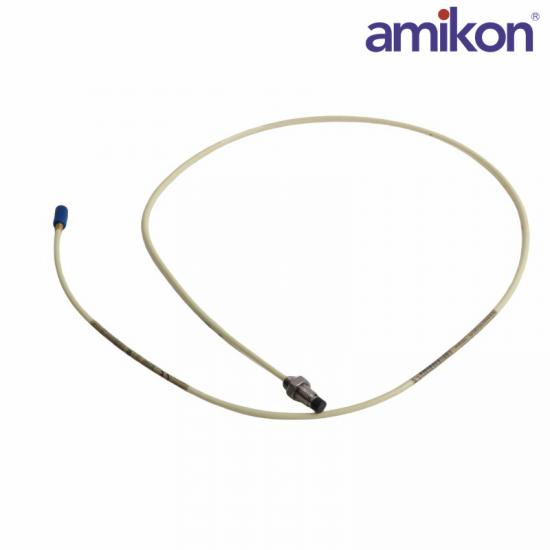

Bently Nevada  21504-000-016-10-02 is a 3300 XL 8 mm Reverse Mount Probe manufactured by Bently Nevada and used in Proximitor Probe Sensor. The  Proximitor Probe Sensor and Sensors of the 3300 XL series work with replaceable probes of different lengths, armor, and connectors made by Bently Nevada.

The Bently Nevada 21504-000-016-10-02 Proximity Transducer Systems are non-contacting, gap-to-voltage transducer systems that measure static and dynamic distances between the probe tip and the observed object. The general application is in any situation where an accurate, noncontact displacement measurement is required.

However, the most prevalent application is for shaft position and vibration measurements on rotating and reciprocating machinery.

They are intended for use with nearly any machine type, including gas and steam turbines, compressors, pumps, centrifuges, electric motors, and generators. The system has an 80 mil (2mm) linear measuring range and is API 670 compliant.

Part Number: 21504-000-016-10-02

Manufacturer: Bently Nevada

Country of Origin: United States(USA)

Unthreaded Length: 0.0 inches

Overall case length: 0.8 inches

Total length: 1.0 metre. Tolerance : +.25 metre, -.10 metre.

Connector: With miniature male coaxial connector.

21504-000-016-10-02 Diameter: 8mm

Configurations type and thread: Standard, 3/8-24

Input power : -17.5 Vdc to -26 Vdc at 12 mA Max consumption.

Output calibrated range: 80mils (2.0 mm). Begins at approximately 10 mils (0.25 mm) from the probe face.

Total length option : 10 = 1.0 metre (3.3 feet)

Storage Temperature : -51 °C to +177 °C (-60 °F to +351 °F)

21504-000-016-10-02 Weight: 0.20 lbs

21504-000-016-10-02 Dimensions: 9.75 x 8.75 x 1.50
