Manufacturer : Bently Nevada

Product Number :21504-000-024-10-02

Connector Type: Miniature male coaxial connector

Operating Temperature Range: -40°C to +177°C (-40°F to +350°F)

Sensing Tip Diameter: 8 mm

Mounting Thread: 3/8-24 UNF

Unthreaded Length: 0.0 mm

Overall Case Length: 240 mm

Total Cable Length: 1.0 meter (39 inches)

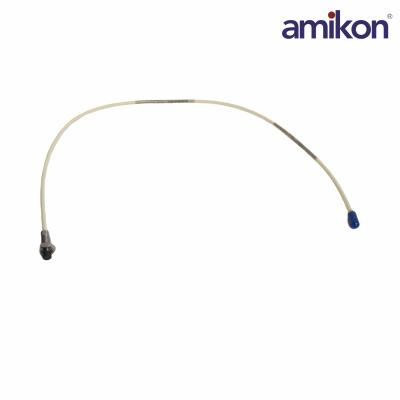

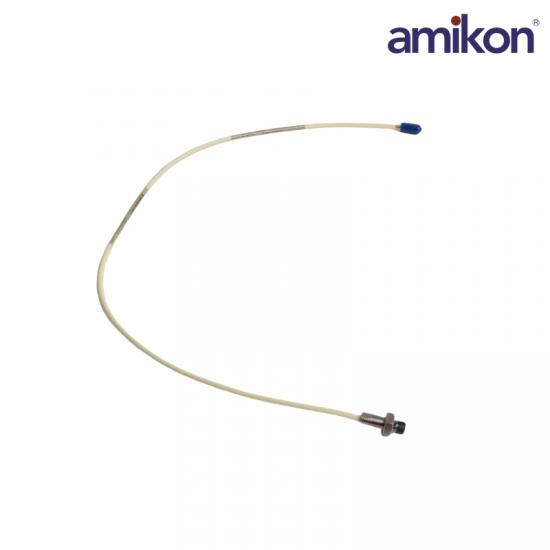

The Bently Nevada 21504-000-024-10-02 Proximity Sensor is a high-performance, non-contact eddy current proximity probe engineered for precise measurement of shaft vibration, position, and displacement in rotating machinery. This sensor is part of Bently Nevada’s trusted lineup of condition monitoring and machinery protection solutions, widely used in critical applications such as turbines, compressors, pumps, and motors across industries like oil & gas, power generation, and petrochemicals.

With a rugged stainless-steel housing and excellent resistance to temperature, vibration, and environmental contaminants, the 21504-000-024-10-02 is ideal for harsh industrial environments. It features a 1-meter integral cable, offering flexibility in installation, and is typically used in conjunction with matching extension cables and Proximitor® sensors to form a complete transducer system. The sensor provides an analog output signal that is directly proportional to the distance between the probe tip and the observed surface, enabling real-time monitoring and early fault detection.
