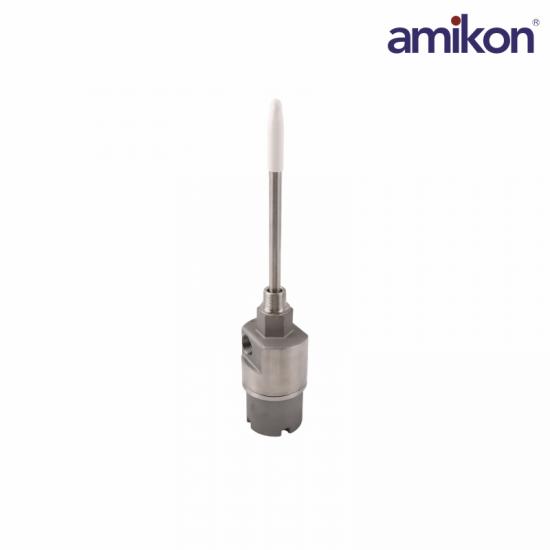

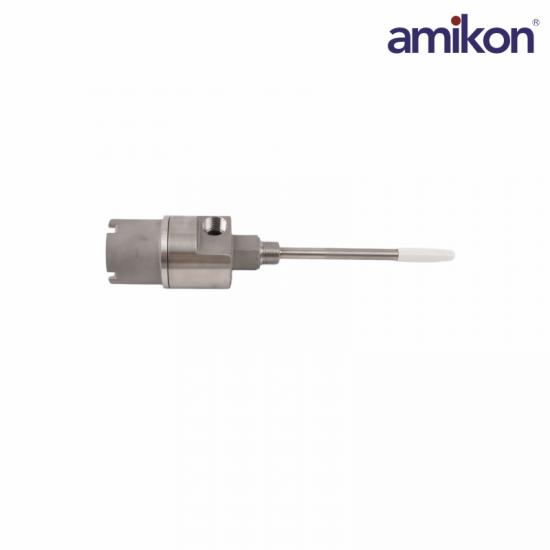

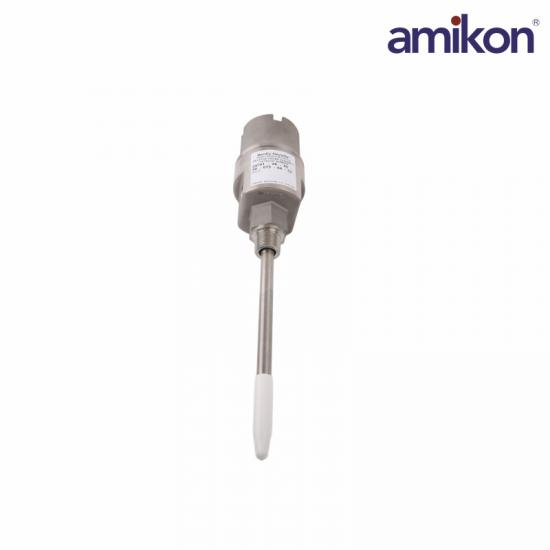

Bently Nevada 24701-28-05-00-070-04-02 24701 Stainless-Steel Proximity Probe Housing Assembly

24701-28-05-00-070-04-02
24701-28-05-00-070-04-02
24701-28-05-00-070-04-02

Bently Nevada 24701-28-05-00-070-04-02 24701 Stainless-Steel Proximity Probe Housing Assembly

✉  INQUIRE NOW

BENTLY NEVADA · 24701 Probe Housing Assembly

24701-28-05-00-070-04-02

24701 Stainless-Steel Proximity Probe Housing Assembly

MANUFACTURERBently Nevada
MODEL24701-28-05-00-070-04-02
PART NUMBER24701-28-05-00-070-04-02
PRODUCT TYPE24701 Stainless-Steel Proximity Probe Housing Assembly
SYSTEM FAMILY24701 Probe Housing Assembly
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    24701-28-05-00-070-04-02
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    Bently Nevada
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

Bently Nevada 24701 Probe Housing Assembly

24701-28-05-00-070-04-02

Price and Availability Inquiry

The Bently Nevada 24701-28-05-00-070-04-02 is a 24701 stainless-steel probe housing assembly configured for a 3300 XL 8 mm probe with 0.5 m lead, no standoff, 7.0 in base-order-code penetration and 3/4-14 NPT mounting.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 24701-28-05-00-070-04-02 and required quantity in your inquiry.

Bently Nevada 24701-28-05-00-070-04-02

Technical Specifications

Official order-code, mechanical, cable, interface and system-reference data for 24701-28-05-00-070-04-02.

01Product IdentityHousing assembly identification
ManufacturerBently Nevada
Part number24701-28-05-00-070-04-02
ComponentProbe housing assembly
System family24701 with 3300 XL 8 mm probe
02Probe & InterfacePublished order-code options
Probe option28 — 3300 XL 8 mm, approval option
Probe lead05, 0.5 m
Fittings option04 — 3/4-14 NPT plug × 1
Mounting thread02, 3/4-14 NPT
03Installation GeometryBase order-code dimensions
Standoff adapter00 — none
Base-order-code penetration070, 7.0 in (178 mm)
Housing dimension B151.9 mm (5.97 in)
Housing dimension A78.2 mm (3.08 in)
04Materials & SupportPublished housing data
Housing body303 stainless steel
Sleeve304 stainless steel
Standard housing mass, without fittings1.8 kg (4.1 lb), typical
C + D support threshold>12 in (300 mm)

Bently Nevada 24701-28-05-00-070-04-02 Product Support

Frequently Asked Questions

Product-specific configuration, installation and ordering guidance for 24701-28-05-00-070-04-02.

01

Which order-code fields control this installed assembly?

The 28/05/00/070/04/02 fields separately specify probe, lead, standoff, base penetration, fittings and mounting thread.

02

Does the 00 field include a standoff adapter?

No. In the manufacturer ordering table, 00 means no standoff adapter.

03

How should the 070 penetration be interpreted?

It identifies a nominal 7.0 in base-order-code penetration; confirm final installed gap and adjustment per the manufacturer instructions.

04

Which fitting is supplied under option 04?

One 3/4-14 NPT plug only. The option does not list a reducer or cable seal grip.

05

Which connection thread is selected by the last 02 field?

It specifies 3/4-14 NPT mounting for this standard, non-modified order code.

06

Does probe option 28 establish a particular hazardous-area approval?

No. Confirm the approval option on the supplied probe label and its certificate before use in a classified area.

07

When is extra sleeve support required?

The published rule is C + D greater than 12 in. This base order code gives 7.0 in, but check actual installed geometry.
