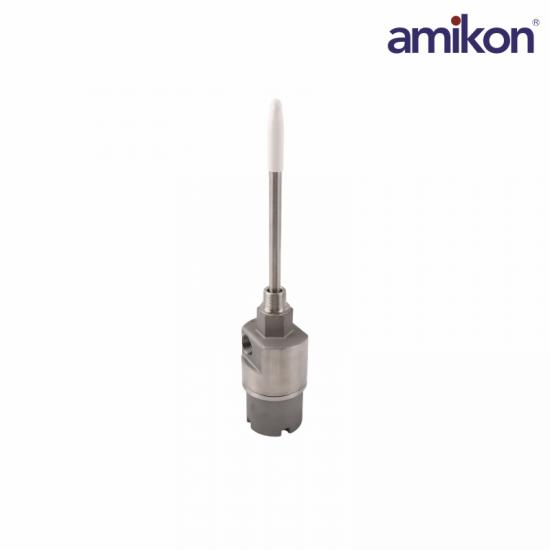

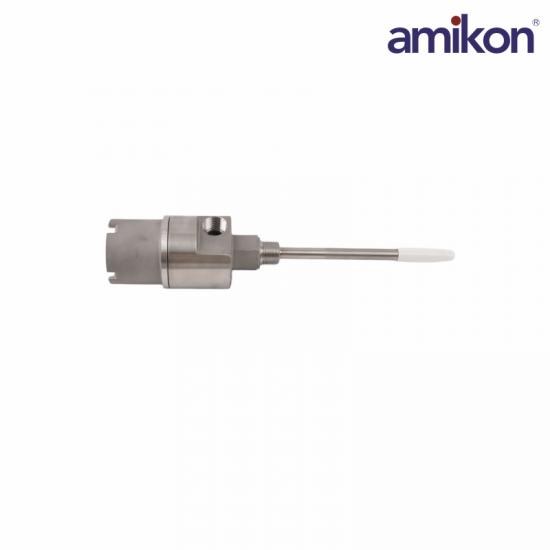

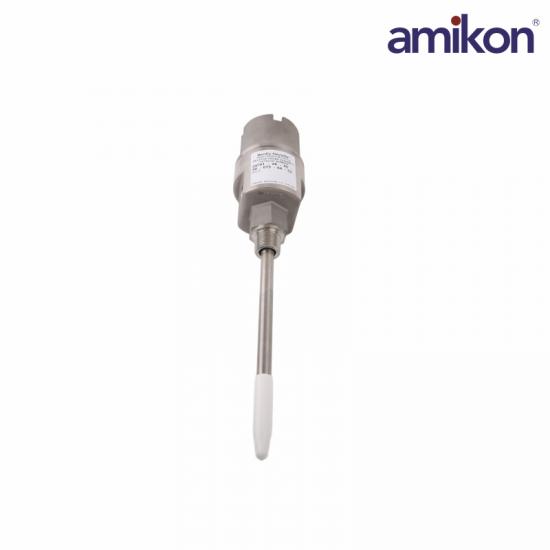

Bently Nevada 24701-28-05-XX-117-03-XX MOD：323933-00-02 24701 Modified Probe Housing Assembly

24701-28-05-XX-117-03-XX MOD：323933-00-02
24701-28-05-XX-117-03-XX MOD：323933-00-02
24701-28-05-XX-117-03-XX MOD：323933-00-02

Bently Nevada 24701-28-05-XX-117-03-XX MOD：323933-00-02 24701 Modified Probe Housing Assembly

✉  INQUIRE NOW

BENTLY NEVADA · 24701 Probe Housing Assembly

24701-28-05-XX-117-03-XX MOD：323933-00-02

24701 Modified Probe Housing Assembly

The XX options and 323933-00-02 modification are not decoded by the public ordering table; confirm the supplied drawing and nameplate before installation.

MANUFACTURERBently Nevada
MODEL24701-28-05-XX-117-03-XX MOD：323933-00-02
PART NUMBER24701-28-05-XX-117-03-XX MOD：323933-00-02
PRODUCT TYPE24701 Modified Probe Housing Assembly
SYSTEM FAMILY24701 Probe Housing Assembly
ORDER SUPPORTVerify modification drawing

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    24701-28-05-XX-117-03-XX MOD：323933-00-02

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    Bently Nevada

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

Bently Nevada 24701 Probe Housing Assembly

24701-28-05-XX-117-03-XX MOD：323933-00-02

Price and Availability Inquiry

The Bently Nevada 24701-28-05-XX-117-03-XX MOD：323933-00-02 is a modified 24701 stainless-steel probe housing assembly with a 3300 XL 8 mm probe, 0.5 m probe lead, 117, 11.7 in (297 mm) base-order-code penetration and fitting option 03. The XX fields and MOD 323933-00-02 require the supplied modification drawing for final dimensions and mounting.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 24701-28-05-XX-117-03-XX MOD：323933-00-02 and required quantity in your inquiry.

Bently Nevada 24701-28-05-XX-117-03-XX MOD：323933-00-02

Technical Specifications

Official order-code, mechanical, cable, interface and system-reference data for 24701-28-05-XX-117-03-XX MOD：323933-00-02.

01Product IdentityModified assembly identification
ManufacturerBently Nevada
Part number24701-28-05-XX-117-03-XX MOD：323933-00-02
ComponentModified probe housing assembly
System family24701 with 3300 XL 8 mm probe
02Probe & InterfaceVerified published options
Probe option28 — 3300 XL 8 mm, approval option
Probe lead05, 0.5 m
Fittings option03 — 3/4-14 NPT plug × 1; 3/4-14-to-1/2-14 NPT reducer × 1; cable seal grip × 1
Probe cable construction75 Ω triaxial; FEP insulation
03Order-Code GeometryMOD drawing governs final assembly
Base-order-code penetration117, 11.7 in (297 mm)
Standoff adapter codeXX
Mounting thread codeXX
MOD drawing reference323933-00-02
04Materials & InstallationPublished standard housing data
24701 standard body materialAISI 303 stainless steel
24701 standard sleeve materialAISI 304 stainless steel
Max. C + D (0.5 m probe lead)13.5 in (343 mm)
C + D support threshold>12 in (300 mm)

Bently Nevada 24701-28-05-XX-117-03-XX MOD：323933-00-02 Product Support

Frequently Asked Questions

Product-specific configuration, installation and ordering guidance for 24701-28-05-XX-117-03-XX MOD：323933-00-02.

01

Does the 117 penetration alone require extra sleeve support?

At 11.7 in it is close to the 12 in C + D threshold; an unknown standoff may push the total over it. Check the drawing.

02

Which parts are included under fitting 03?

A 3/4-14 NPT plug, reducer to 1/2-14 NPT and cable seal grip with listed grommets.

03

May the MOD 323933-00-02 reference be omitted when sourcing?

No. The public option table does not decode the modification, so retain it and request the corresponding drawing.

04

Which probe lead is specified here?

Code 05 denotes 0.5 m. Verify that the delivered lead accommodates the actual sleeve geometry.

05

Is the final mounting thread fixed by the fitting code?

No. The final XX remains unresolved and must be read from the modification drawing.

06

How are standard housing materials specified?

The published 24701 body is 303 stainless steel and the sleeve is 304 stainless steel; verify the modified BOM.

07

Which checks belong in commissioning?

Check installed gap, sleeve support, sensor-system length and the supplied probe approval.
