Description：

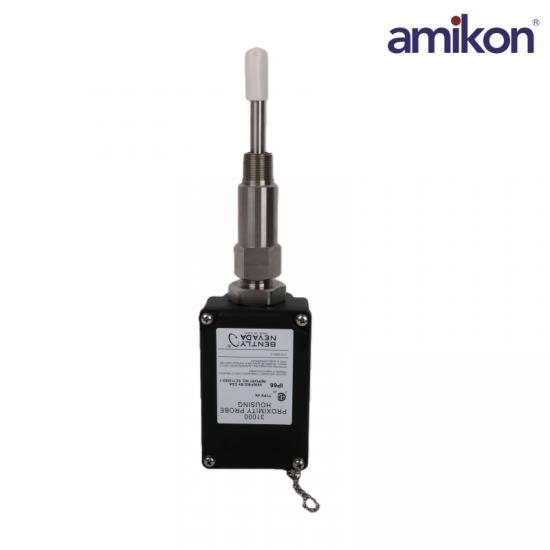

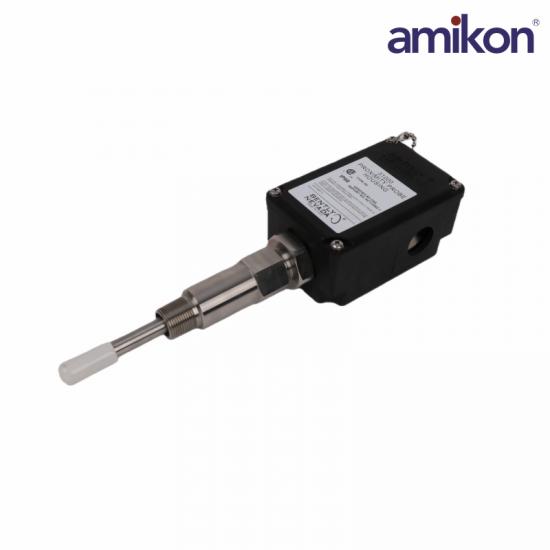

The Dual Probe Transducer System consists of a proximity probe and a seismicor Velomitor* transducer installed at approximately the same point in a commontransducer housing. This transducer system is capable of making four separate measurements:

Shaft relative radial position (displacement) relative to the probe mountinglocation, measured by the proximity probe;Shaft relative radial dynamic motion (vibration) relative to the probe mountinglocation, measured by the proximity probe;Machine casing absolute vibration measured by the seismic vibration; andShaft absolute motion represented by the summation of the seismic signal (afterintegration to displacement) and the shaft relative displacement.

The Dual Probe Transducer System provides the best measurement data whentransducer housing is mounted on a portion of the bearing housing or cover thatis mechanically referenced to the bearing.

For complete machinery monitoring diagnostics using orbit analysis and shaftcenterline position information, two Dual Probe assemblies in an X-Yconfiguration are required per radial bearing.

A probe support/oil sleeve is available as an option. It protects the transducersystem from oil and provides additional support for the probe sleeve.

Specification：

Frequently asked questions

Q1: What is the Bently Nevada 26530-12-10-03-018-085-24-03-00 used for?

A1: Bently Nevada 26530-12-10-03-018-085-24-03-00 is a Dual Probe Transducer System used for monitoring shaft vibration, position, and relative movement in rotating machinery. It is commonly applied in machinery protection and condition monitoring systems.

Q2: What is the 26530-12-10-03-018-085-24-03-00 probe cable length of this transducer system?

A2: The 26530-12-10-03-018-085-24-03-00 probe cable length is 1.0 meter, providing flexible installation for industrial monitoring applications.

Q3: What adapter thread type does the system use?

A3: The 26530-12-10-03-018-085-24-03-00 system uses a 3/4-14 NPT adapter thread for secure mounting and installation.

Q4: What is the 26530-12-10-03-018-085-24-03-00 adapter length of the transducer system?

A4: The 26530-12-10-03-018-085-24-03-00 adapter length is 1.8 inches.

Q5: What is the 26530-12-10-03-018-085-24-03-00 probe penetration length?

A5: The 26530-12-10-03-018-085-24-03-00 probe penetration length is 8.5 inches.

Product Applications

1. Power Generation: Conventional Thermal/Nuclear Power: Bearing and rotor monitoring for supercritical steam turbines, gas turbines, generators, large-capacity feedwater pumps, and forced and induced draft fans.

Hydropower: Monitoring the main shaft runout, axial thrust, and vibration of upper/lower guide bearings in hydro-generator units.

Wind Power: Condition monitoring of large wind turbine main shafts and speed-increasing gearboxes.

2. Oil & Gas: Upstream Extraction and Transportation: LNG (Liquefied Natural Gas) compressors, gas-driven/electric-driven compressor units for long-distance pipeline booster stations.

Downstream Refining: Catalytic cracking units (large three-unit/extra-large four-unit), hydrogenation feed pumps, high-pressure reciprocating compressors.

3. Metallurgy & Steel: Vibration protection for core rotating equipment such as blast furnace blowers (TRT top-pressure generators), large exhaust fans, and rolling mill main drive systems.

4. Large-scale chemical and petrochemical industries: Used for core and critical equipment such as ethylene three-unit (cracking gas compressor, propylene compressor, ethylene compressor) and ammonia synthesis units.
