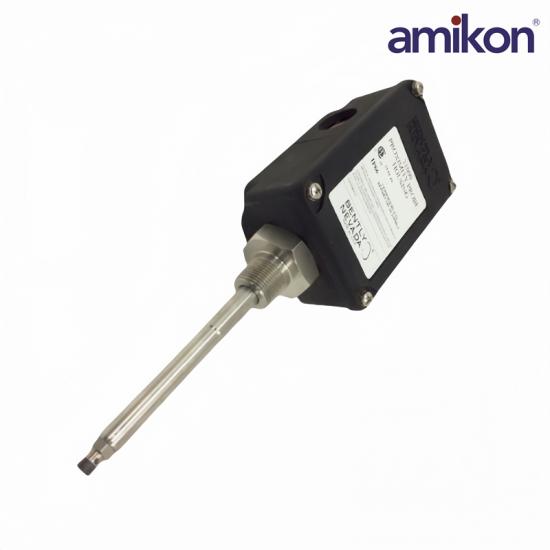

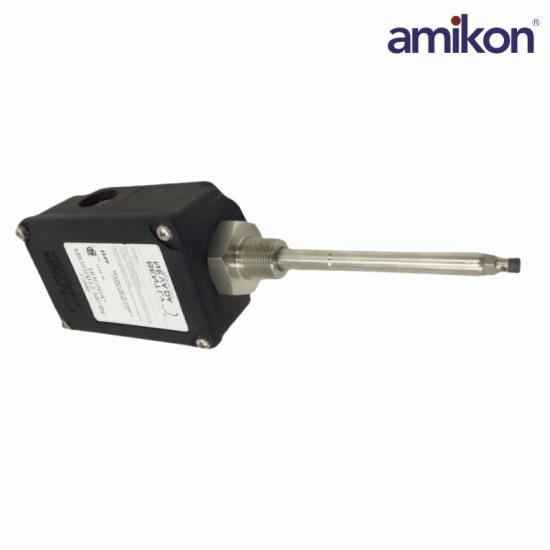

Bently Nevada 31000-00-00-00-000-00-00 Proximity Probe Housings

A: Probe with Connector

00 Probe not required

16 3300 XL 8 mm probe

26 3300 XL NSv probe

27 3300 XL NSv probe, multiple approvals

28 3300 XL 8 mm probe, multiple approvals

29 3300 XL 8 mm probe, with connector protector

B: Probe Cable Length

00 Probe cable not required

05 0.5 m (20 in)

10 1.0 m (39 in)

C: Standoff Adapter Length (Option C Dimension)

15 Minimum length 1.5 in (38 mm)

75 Maximum length 7.5 in (191 mm) Recommendation

Order in increments of 0.5 in (13 mm) Examples

1.5 in (38 mm) = 15

No standoff adapter = 00

The 31000/32000 Proximity Probe Housing Assemblies are recommended when mounting proximity probes through the machine case and are typically used for radially mounted transducers, whether vibration or Keyphasor measurements.

Use of a Proximity probe housing allows external access to the proximity probe and its extension cable, permitting gap adjustment or probe replacement without disassembly of the machine. The 31000/32000 Proximity Probe Housing Assembly is made of polyphenylene sulfide (PPS), an advanced, highstrength, thermoplastic with excellent corrosion resistance. Other elements of the housing assembly are made of corrosion-resistant stainless steel. The housing can be ordered with installed 3300 XL Proximity Probes and a variety of conduit fittings.

The 31000/32000 Proximity Probe Housing Assembly is fully compliant with the American Petroleum Institute's (API) 670 Standard for externally mounted proximity probe housings.
