The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface. It is capable of measuring both static (position) and dynamic (vibration) values. The system’s primary applications include vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Frequently Asked Questions

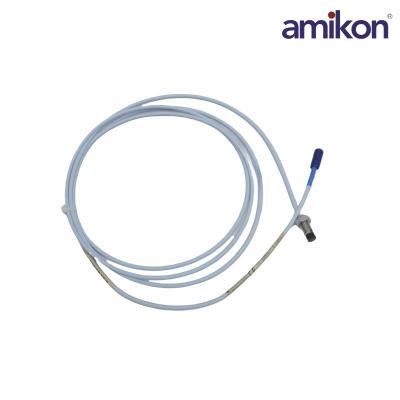

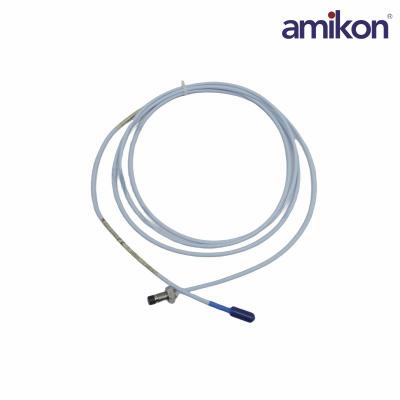

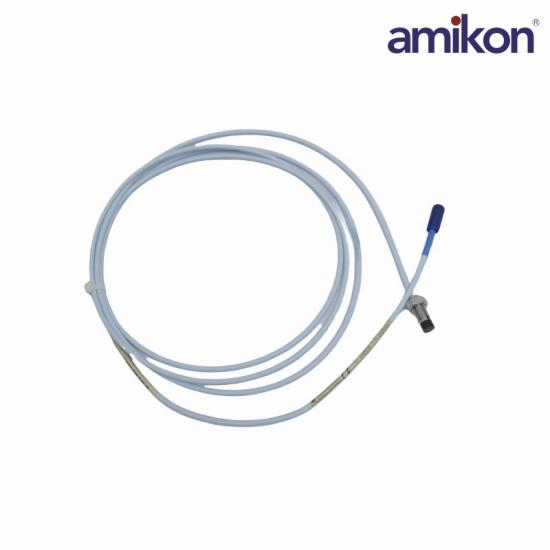

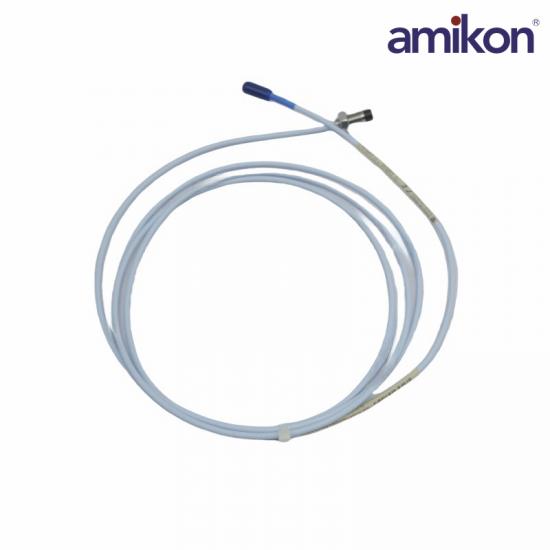

Q1: What is the Bently Nevada 330101-00-08-15-02-CN Proximity Probe?

A1: It is a 3300 XL 8 mm proximity probe used for non-contact vibration and displacement measurement in rotating machinery monitoring systems.

Q2: What is the 330101-00-08-15-02-CN overall case length of this probe?

A2: The 330101-00-08-15-02-CN overall case length option “08” corresponds to 0.8 inches.

Q3: What is the 330101-00-08-15-02-CN total cable length?

A3: The 330101-00-08-15-02-CN total length option “20” indicates a cable length of 2.0 meters (6.6 feet).

Q4: What connector type is used?

A4: It uses a Miniature coaxial ClickLoc connector with standard cable (option 02).

Product Applications

Power Industry: Vibration monitoring of steam turbines, water turbines, and generator sets in power plants.

Oil and Gas: Oil refineries, natural gas compressor units, and oil pumps.

Chemical and Petrochemical Industries: Compressors, reactor agitators, and refrigeration units.

Metallurgy and Steel: Blowers, centrifuges, and rolling mills.

Industrial Manufacturing and Water Treatment: Water pumps, industrial fans, and air separation units.
