Bently Nevada 3300 XL Proximity Transducer System

330101-00-15-05-01-00

Price and Availability Inquiry

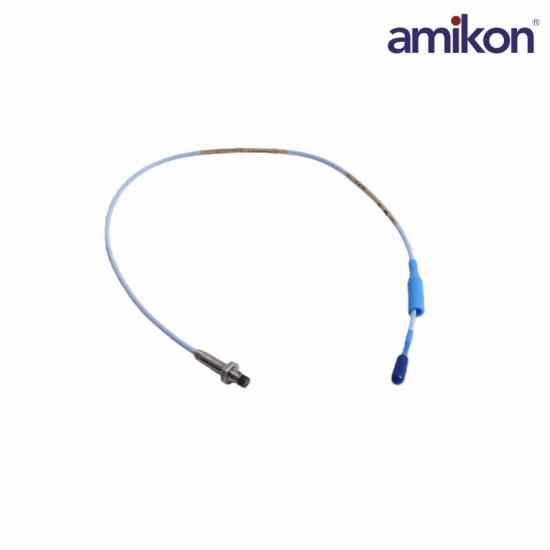

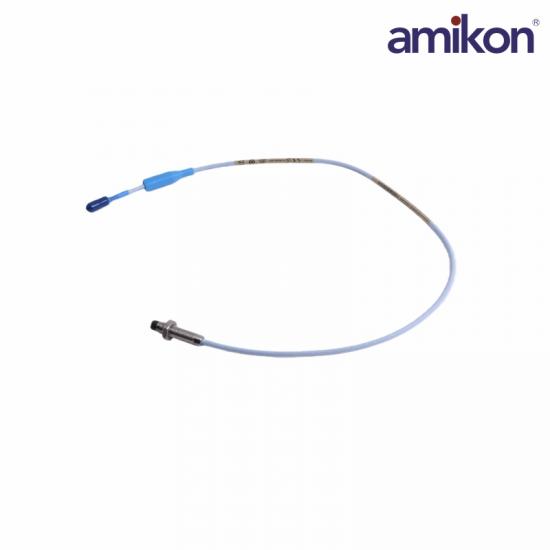

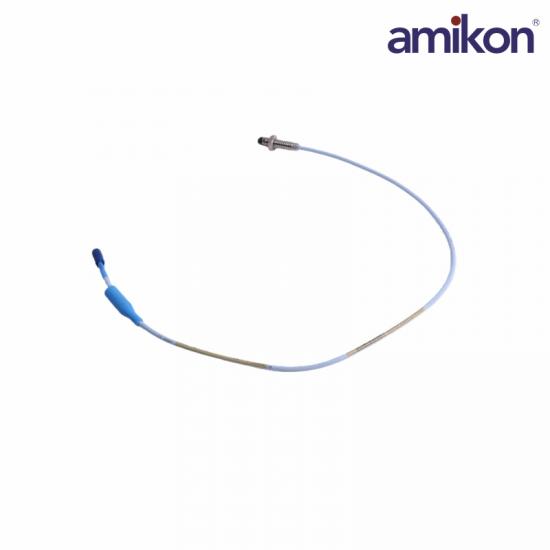

The Bently Nevada 330101-00-15-05-01-00 is a 3300 XL 8 mm proximity probe with 3/8-24 UNF-2A mounting, an unarmored probe lead, a 0.5 m (1.6 ft) total probe length and miniature coaxial clickloc, with connector protector.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 330101-00-15-05-01-00 and required quantity in your inquiry.

Bently Nevada 330101-00-15-05-01-00

Technical Specifications

Official order-code, mechanical, interface, performance and environmental data for this 3300 XL 8 mm probe variant.

01Product IdentityExact probe identification

ManufacturerBently Nevada

Order number330101-00-15-05-01-00

Product designation3300 XL 8 mm Proximity Probe

Product family3300 XL Proximity Transducer System

02Mechanical ConfigurationOrder-code dimensions and construction

Mounting thread3/8-24 UNF-2A

Cable armorWithout armor

Unthreaded length0.0 in

Overall case length1.5 in

03Cable & InterfaceProbe lead and connection data

Total probe length0.5 m (1.6 ft)

ConnectorMiniature coaxial ClickLoc, with connector protector

Approval optionNot required

Cable construction75 Ω triaxial, FEP-insulated standard cable

04Performance & Environment3300 XL system-level ratings

Linear range2 mm (80 mils), approx. 0.25–2.3 mm

Nominal scale factor7.87 V/mm (200 mV/mil)

Frequency response0–10 kHz, +0/−3 dB

Probe temperature−52 to +177 °C (standard probe)

Bently Nevada 330101-00-15-05-01-00 Product Support

Frequently Asked Questions

Variant-specific application, replacement, installation and ordering guidance for 330101-00-15-05-01-00.

What distinguishes the 330101-00-15-05-01-00 compact-lead variant?

It combines a 1.5 in case with a 0.5 m (1.6 ft) total probe length, 3/8-24 UNF-2A mounting, no armor and a miniature coaxial ClickLoc connector with a connector protector.

Is a hazardous-area approval option included in this order code?

No. The final 00 code means the agency approval option is not required. Do not substitute this variant where the project specification requires the 05 CSA, ATEX and IECEx approval option.

What protection is supplied at the cable connection?

The 01 connector option includes the miniature coaxial ClickLoc connector and its connector protector on the standard 75 ohm triaxial FEP-insulated cable. Keep the mating surfaces clean and fully seated.

How should the 1.5 in case be installed without thread binding?

Verify the mounting-hole depth and limit 3/8-24 thread engagement to the official 0.563 in maximum. Set probe position from the target gap rather than tightening the full case length into the bracket.

Can this probe replace an older non-XL 3300 component?

The official data states that 3300 XL 8 mm components are electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components when the minimum cable bend radius is observed. The complete calibrated system length and component combination must still be verified.

What performance should be checked during commissioning?

With a complete standard 3300 XL 8 mm system, verify the approximately 1.27 mm gap setting, 2 mm linear range, nominal 7.87 V/mm scale factor and 0 to 10 kHz frequency response.

What information prevents ordering the wrong 0.5 m version?

Provide the exact model 330101-00-15-05-01-00, quantity, 1.5 in case requirement, 0.5 m total length, connector-protector requirement and confirmation that agency approvals are not required.
