Description：

The system provides an output voltage that is directlyproportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system'sprimary applications are vibration and position measurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advancedper formance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (APi)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Specification：

Frequently asked questions

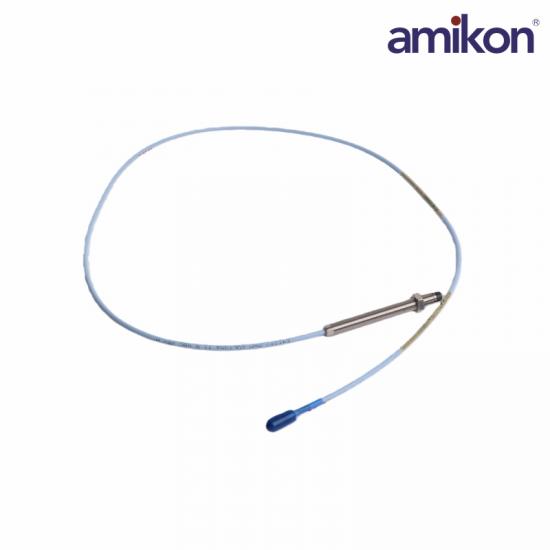

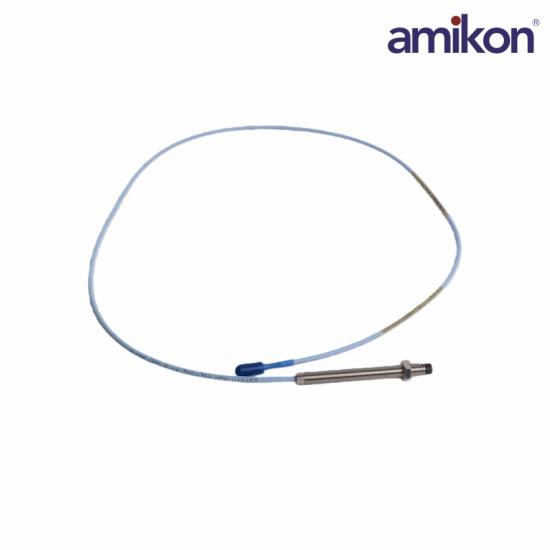

Q1: What is the Bently Nevada 330101-00-16-10-01-05 Proximity Probe used for?

A1: It is used for non-contact vibration and shaft position monitoring in rotating machinery protection systems.

Q2: What is the overall case length of the 330101-00-16-10-01-05 probe?

A2: Overall Case Length Option 16 is 1.6 inches.

Q3: What is the total length of the 330101-00-16-10-01-05 probe?

A3: Total Length Option 10 is 1.0 meter (3.3 feet).

Q4: What is the 330101-00-16-10-01-05 scale factor of the standard 9-meter system?

A4: The scale factor is 7.87 V/mm (200 mV/mil) ±6.5%.

Q5: What measurements can this 330101-00-16-10-01-05 probe provide?

A5: It can measure shaft vibration, shaft displacement, and shaft position in rotating equipment.

Product Applications

Petrochemical and Refinery Plants: Condition monitoring of large centrifugal compressor units, reciprocating compressors, and large pumps.

Coal and Nuclear Power Plants: Critical safety protection for the shaft systems of steam turbine generator units, main feedwater pumps, and induced draft fans.

Metallurgical and Steel Plants: Operational diagnostics of the drive shafts of heavy-duty rolling mills and the bearings of large dust collector fans.

Large Air Separation/Modern Manufacturing Plants: Ensuring the high-reliability continuous operation of critical power source equipment.
