The system provides an output voltage that is directlyproportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system'sprimary applications are vibration and positionmeasurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (APi)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Frequently Asked Questions

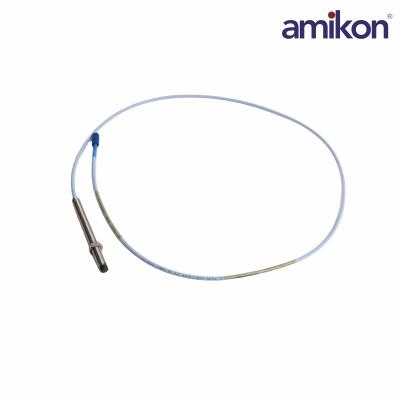

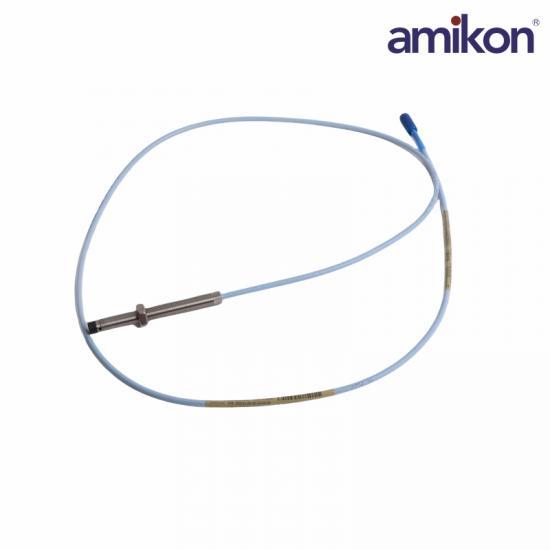

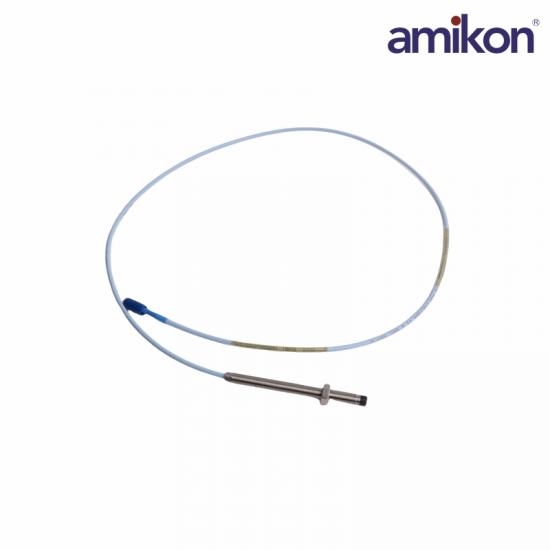

Q1: What is the Bently Nevada 330101-00-18-50-02-05 Proximity Probe used for?

A1: The 330101-00-18-50-02-05 is a proximity probe designed for non-contact measurement of shaft vibration, shaft position, displacement, and runout in rotating machinery monitoring and protection systems.

Q2: What is the overall case length of the 330101-00-18-50-02-05 probe?

A2: Overall Case Length Option -18 corresponds to 1.8 inches.

Q3: What is the total length of the 330101-00-18-50-02-05 probe cable?

A3: Total Length Option -50 corresponds to 5.0 meters (16.4 feet).

Q4: What connector type does this 330101-00-18-50-02-05 probe use?

A4: Connector and Cable-Type Option -02 includes a miniature coaxial ClickLoc connector with a standard cable, providing a secure and reliable connection.

Product Applications

Oil and Gas / Refining: Catalytic cracking blowers, hydrocracking compressors, high-power centrifugal pumps for crude oil transportation, and compressor units for long-distance natural gas pipelines.

Power and Energy: Steam turbine generator sets for thermal power plants/nuclear power plants, gas turbines, hydroelectric generators for pumped storage power stations, and boiler feed pumps.

Coal Chemicals and Chemicals: Large syngas compressors, cracked gas compressors, and refrigeration compressors for ammonia/methanol synthesis units.

Metallurgy and Iron & Steel: Blast furnace blowers, blast furnace gas residual pressure generator (TRT) units, and large exhaust fans.

Large-scale Air Separation and Compressed Air: Centrifugal air compressors, industrial oxygen/nitrogen generator units, and large air separation main compressors.
