Brand: Bently Nevada

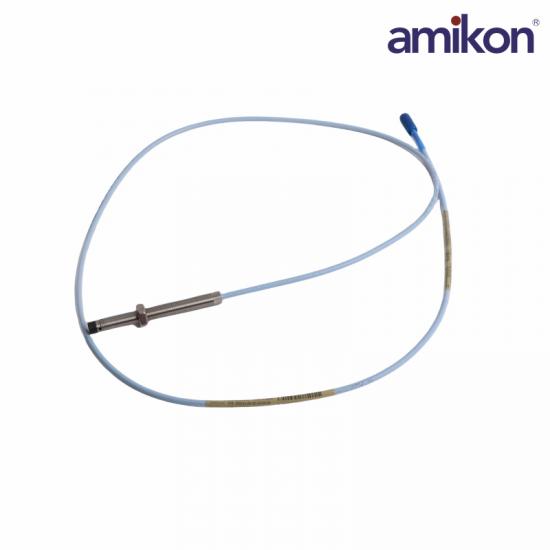

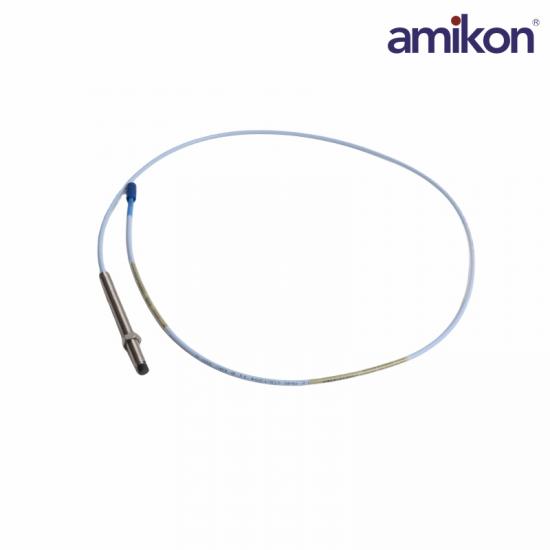

Type: 3300 XL 8mm Proximity Probes

Product Number : 330101-00-24-05-02-05

Total Length: 0.5 m (1.6 ft)

Overall Case Length: 2.4 in

DC Resistance (0.5 m): 7.45 ± 0.50 Ω

Capacitance: 69.9 pF/m

Linear Range: 2 mm

Radial Vibration: -9 Vdc [1.27 mm]

Incremental Scale Factor: 5/1 m: 7.87 V/mm ± 5%, others:7.87 V/mm ± 6.5%

Standard: -52°C to +177°C

Extended:Tip -52°C to +218°C,Cable/Connector-51°C to +260°C

The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
