The system provides an output voltage directly proportional to the distance betweenthe probe tip and the observed conductive surface. It is capable of both static(position) and dynamic (vibration) measurements, and is primarily used for vibrationand position measurement applications on fluid-film bearing machines, as well asKeyphasor@ and speed measurement applications2.

The 3300 XL 8 mm system represents our most advanced performance in an eddycurrent proximity transducer system. The standard 3300 XL 8 mm 5 metre systemis also 100% compliant with the American Petroleum Institute's (APl) 670 Standard(4th Edition) for mechanical configuration, linear range, accuracy, and tempera turestability. All 3300 XL 8 mm Proximity Transducer Systems achieve this level ofperformance while allowing complete interchangeability of probe, extension cable,and Proximitor@ Sensor without the need for individual component matching orbench calibration.

Each component of the 3300 XL 8 mm Transducer System is backward compatible and interchangeable3 with other non-XL 3300 series 5 and 8 mm transducer systemcomponents4. This includes the 3300 5 mm probe, which is used when an 8 mm probe is too large for the available mounting space56.

Frequently Asked Questions

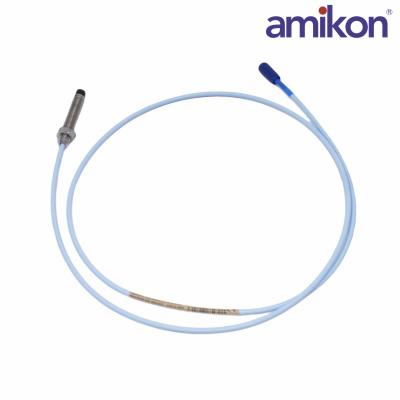

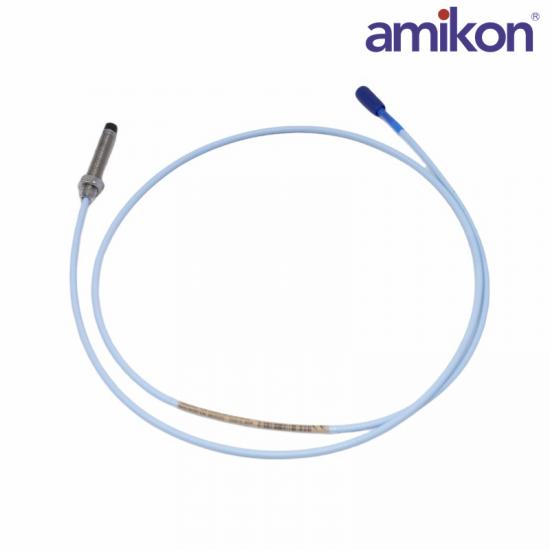

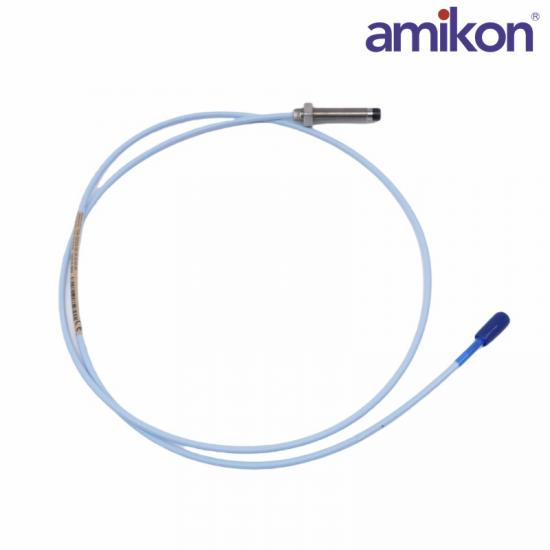

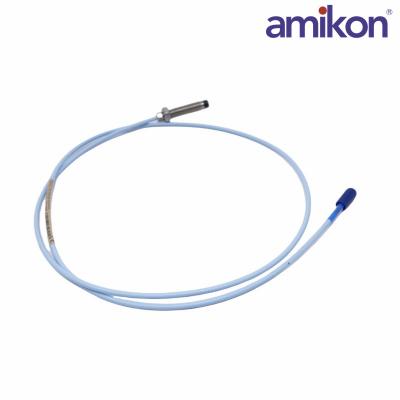

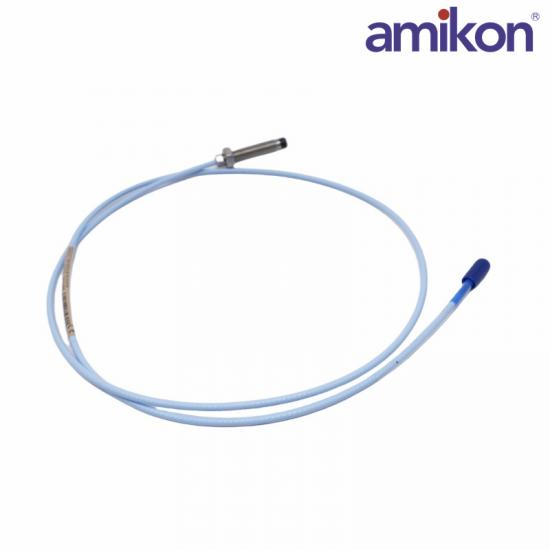

Q : What exactly is the Bently Nevada 330101-00-27-50-02-05?

A: It is a 3300 XL 8 mm eddy current proximity probe with a 3/8-24 UNF thread, 0.0-inch unthreaded length, 2.7-inch overall case length, 5.0-metre total cable length, miniature ClickLoc connector, and multi-agency hazardous area approvals

Q : What is the significance of the "-50" option?

A: It specifies that the probe has an integrated 5.0-metre cable

Q : What is the Average Scale Factor (ASF) of this system?

A: The standard scale factor is 7.87 V/mm (200 mV/mil) when paired with a matching 3300 XL Proximitor Sensor.

Q : What is the thread size of the 330101 model?

A: It uses an English thread size of 3/8-24 UNF. If you need metric threads (M10x1), you must use the 330103 model

Product Applications

Oil and Gas (Refineries and Gas Fields): Monitoring bearing vibration and displacement in reciprocating or centrifugal compressors and large industrial pumps.

Power Generation (Thermal, Nuclear, and Hydropower): Monitoring bearing condition, shaft displacement, and eccentricity measurement in steam turbine generator sets.

Petrochemical and Chemical Industries: Large blowers, extruders, and fans installed in hazardous areas containing flammable and explosive gases.

Metallurgy & Mining: Monitoring bearings in large blast furnace blowers, oxygen generators, and heavy rolling mills in steel plants.

Water Treatment & Marine: Monitoring centrifugal pumps and large blowers in large urban water supply and drainage pumping stations and sewage treatment plants.
