330101-00-34-10-02-05 3300 XL 8 mm probes are designed to seal differential pressure between the probe tip and case. The probe sealing material consists of a Viton® O ring. Probes are not pressure tsted prior to shipment. Contact our custom design department if you require a test of the pressure seal for your application.

Over a probe temperature range of –35°C to +120°C (-31°F to +248°F) with the Proximitor sensor and extension cable between 0°C to +45°C (+32°F to +113°F), the ISF remains within ±10% of 7.87 V/mm (200 mV/mil) and the DSL remains within ±0.076 mm(±3 mils).

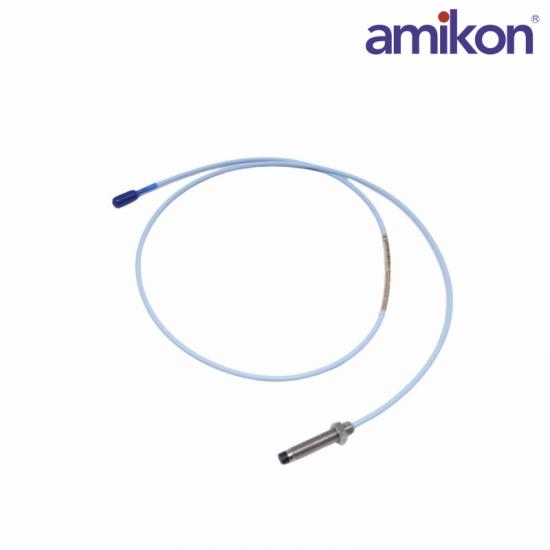

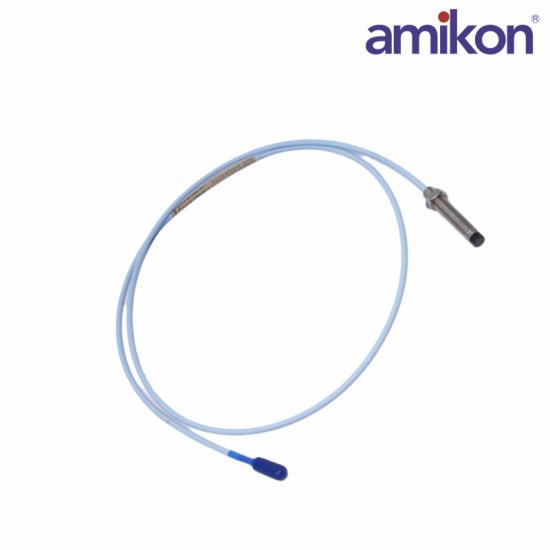

he Bently Nevada 330101-00-34-10-02-05 3300 XL 8 mm Proximity Probe is a highly reliable sensor designed for monitoring vibration and position in rotating machinery. This probe is part of the 3300 XL series, known for its durability and precision, making it suitable for various industrial applications, including oil and gas, power generation, and manufacturing.

The 330101-00-34-10-02-05 proximity probe is engineered to provide accurate and real-time measurements of shaft displacement and vibration, facilitating predictive maintenance and enhancing the operational reliability of critical machinery. Its robust design and advanced sensing technology make it a vital component for condition monitoring systems.

Model Number: 330101-00-34-10-02-05

Probe Tip Diameter: 8 mm, suitable for a variety of industrial applications

Cable Length: 10 feet

Total System Length: Approximately 9 meters

Nominal Output Sensitivity: 7.87 V/mm (±15%)

Sensing Range: Typically 0.25 to 2.0 mm

Operating Temperature Range: -40°C to +120°C

330101-00-34-10-02-05 Gap Voltage: -18 to -24 VDC
