Description：

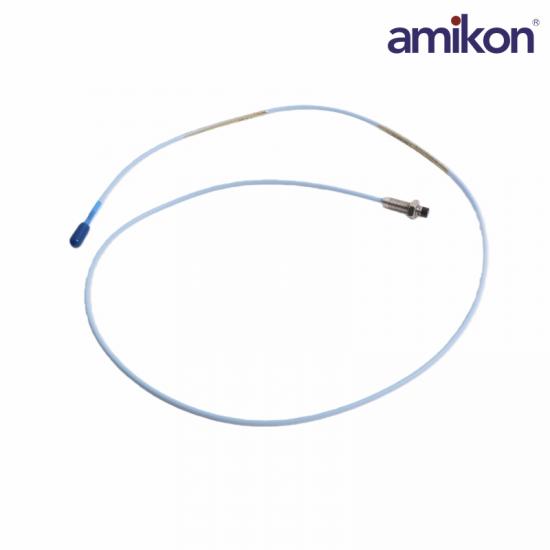

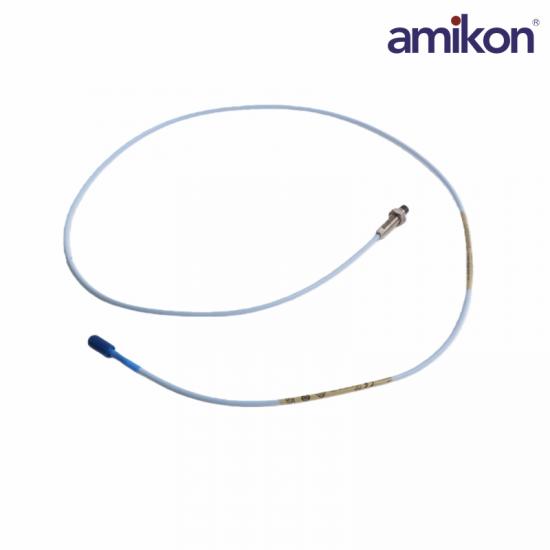

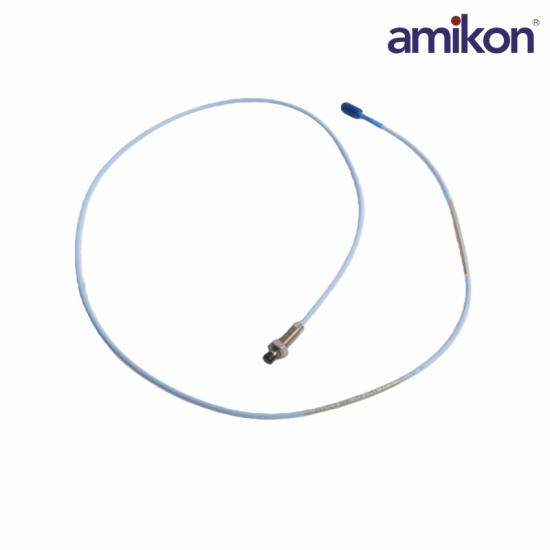

The 3300 XL 8 mm Proximity Transducer System consists of:

One 3300 XL 8 mm probe,

One 3300 XL extension cablel, and

One 3300 XL Proximitor Sensor2.

The system provides an output voltage that is directlyproportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system'sprimary applications are vibration and position measurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurements3.

Specification：

Frequently asked questions

Q1: What is the Bently Nevada 330101-00-44-15-02-05 Proximity Probe?

A1: It is a 3300 XL 8 mm proximity probe used for non-contact vibration and shaft displacement monitoring in rotating machinery systems.

Q2: What is the 330101-00-44-15-02-05 overall case length of this probe?

A2: The 330101-00-44-15-02-05 overall case length option “44” corresponds to 440 mm.

Q3: What is the 330101-00-44-15-02-05 total probe length?

A3: The 330101-00-44-15-02-05 total length option “15” corresponds to 1.5 meters.

Q4: What is the 330101-00-44-15-02-05 frequency response of this probe?

A4: The 330101-00-44-15-02-05 frequency response range is 0 to 10 kHz.

Q5: What is the 330101-00-44-15-02-05 operating temperature range?

A5: The 330101-00-44-15-02-05 standard probe temperature range is -52°C to +177°C (-62°F to +350°F).

Product Applications

Oil and Gas (Petrochemical): Hydrogenation compressors, cracking gas compressors, and large pump sets used in refineries, natural gas pipelines, and offshore drilling platforms.

Power Industry (Power Generation): Heavy-duty gas turbines, steam turbines, generator sets, and turbine main shafts deployed in thermal power, nuclear power, hydropower, and wind power plants.

Heavy Industrial Manufacturing (Iron and Metallurgy): Operational protection for blast furnace blowers, large rolling mill shafts, and exhaust fans.

Chemical and Fertilizer Industries: Complex turbine machinery operating at high pressure and high speed in processes such as ammonia synthesis and methanol production.

Water Treatment and Environmental Protection: Status monitoring of large centrifugal blowers and main booster pumps for wastewater treatment.
