The 3300 XL 8 mm system delivers the most advanced performance in our eddycurrent proximity transducer systems. The standard 3300 XL 8 mm 5-metresystem also fully complies with the American Petroleum Institute's (APl) 670Standard (4th Edition) for mechanical configuration, linear range, accuracy, andtemperature stability. All 3300 XL 8 mm proximity transducer systems providethis level of performance and support complete interchangeability of probes,extension cables, and Proximitor sensors, eliminating the need to match orbench calibrate individual components.

Each 3300 XL 8 mm Transducer System component is backward-compatible and interchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducersystem components5. This compatibility includes the 3300 5 mm probe, forapplications in which an 8 mm probe is too large for the available mounting Space6.7.

Frequently Asked Questions

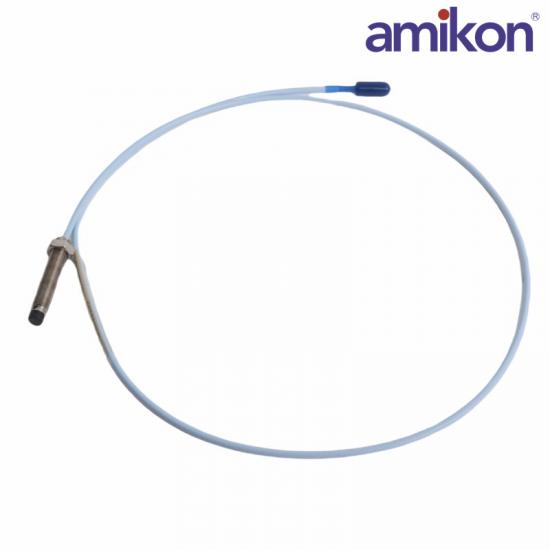

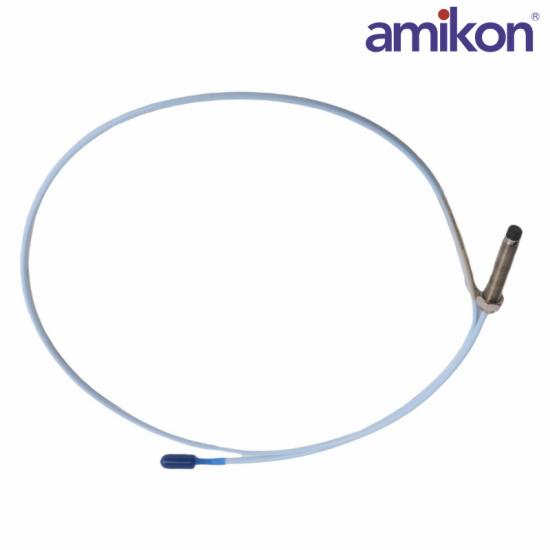

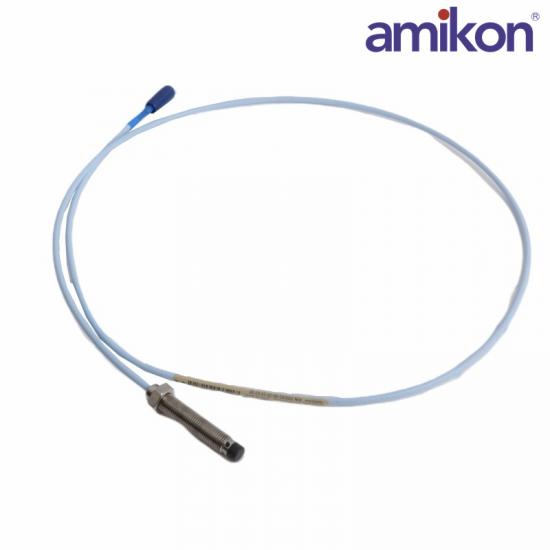

Q : What is the Bently Nevada 330101-00-48-05-02-00?

A: It is a non-contact eddy current proximity probe belonging to the 3300 XL 8mm series, designed for critical rotating machinery monitoring.

Q : What is the linear range of the 3300 XL 8mm system?

A: The standard linear range is 2.0 mm (80 mils), typically spanning from a gap of 0.25 mm (10 mils) to 2.25 mm (90 mils).

Q : What is the standard Scale Factor (sensitivity) of this system?

A: The nominal sensitivity is 7.87 V/mm (200 mV/mil) when calibrated against standard AISI 4140 steel.

Q : What does the third suffix option "-05" mean?

A: It represents a Total Cable Length of 0.5 meters (1.6 feet) from the probe tip to the connector.

Product Applications

Power Industry: Dynamic vibration and axial displacement monitoring of rotors in large steam turbines, hydro turbines, nuclear power generator sets, and boiler feed pumps.

Oil and Gas: Upstream drilling and production lines, midstream long-distance pipeline compressor units, and cracked gas compressors and heavy-duty centrifugal pumps in refineries.

Petrochemicals and Chemical Fibers: Large turbine compressors, blowers, and various key high-speed pumps in continuous production lines.

Metallurgy and Mining: Condition monitoring of bearing support systems for heavy-duty rolling mills, large ventilation fans, and industrial motors in steel plants.
