CooBrand: Bently Nevada

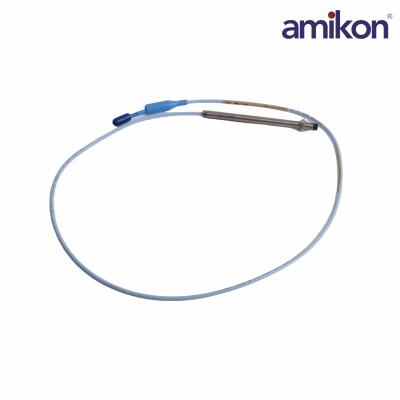

Model: 330101-00-50-10-01-00
Series: 3300 XL 8 mm Proximity Probe
Tip Diameter: 8 mm
Cable Length: 5.0 meters (00 = unarmored)
Connector: Standard coaxial connector
System Length: 10.0 meters (probe + extension cable)
Threaded Case: 3/8-24 UNF thread
Target Material: Calibrated for AISI 4140 steel
Sensitivity: 7.87 mV/μm (200 mV/mil)
Linear Range: 2 mm (80 mils)
Temperature Range: –35°C to +120°C (–31°F to +248°F)
Power Supply: –24 Vdc
The 3300 XL 8 mm Proximity Transducer System consists of:
One 3300 XL 8 mm probe,
One 3300 XL extension cable1, and
One 3300 XL Proximitor Sensor2.
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3.
