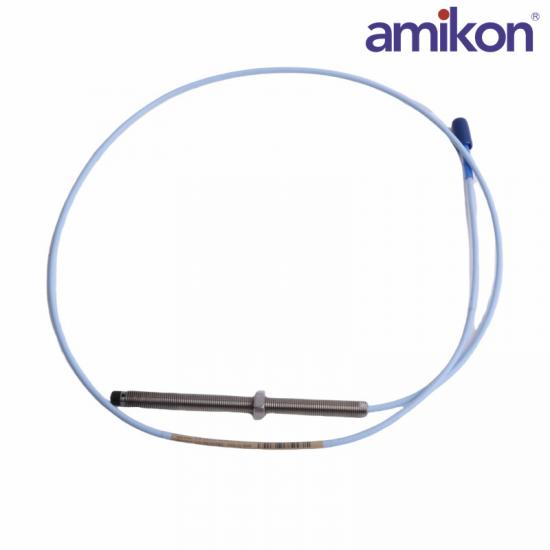

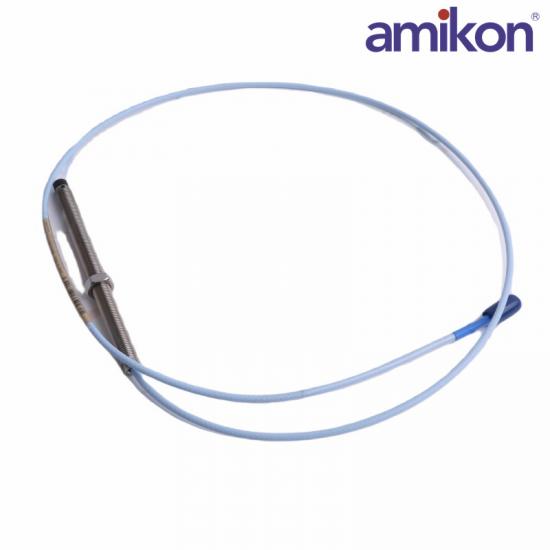

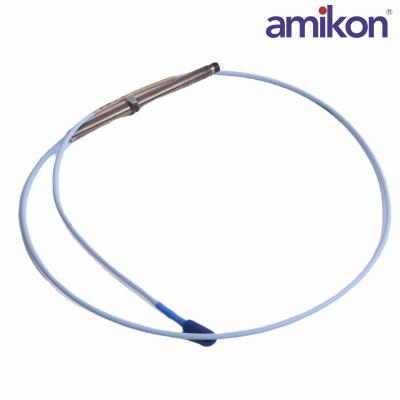

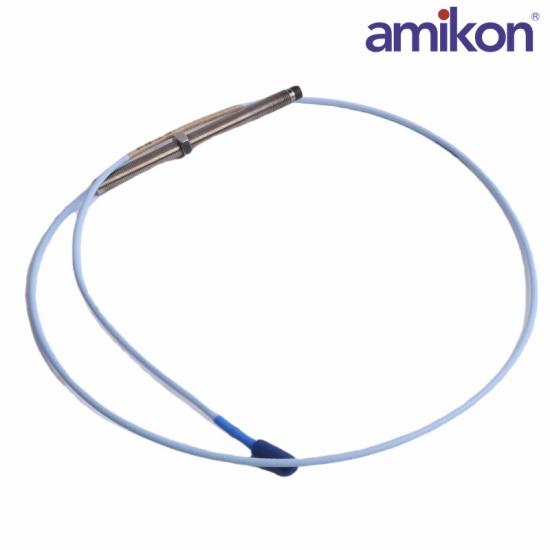

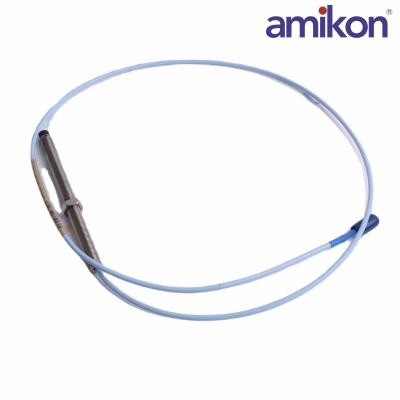

The Bently Nevada 330101-00-50-10-02-05 Proximity Probe is part of the Bently Nevada 3300 series, specifically designed for high-accuracy vibration measurement and condition monitoring of rotating machinery. The probe is highly sensitive and typically works in conjunction with signal conditioning equipment like the Bently Nevada 3500 series for comprehensive machine health diagnostics.

The 330101-00-50-10-02-05 Proximity Probe is a displacement sensor used to monitor the vibration and position of rotating machinery, specifically measuring shaft displacement. These probes are essential for detecting mechanical faults like misalignment, unbalance, bearing wear, and shaft displacement.

 The 330101-00-50-10-02-05 probe operates on the principle of eddy current technology, providing non-contact displacement measurements to avoid wear and reduce the potential for mechanical failures.

Works with the Bently Nevada 3300 series signal conditioning equipment to provide a complete vibration monitoring solution.

Model Number: 330101-00-50-10-02-05

Sensing Principle: Eddy current

Output Signal: Provides an analog signal, typically 4-20 mA or a voltage output that is used by signal conditioning units to evaluate machine health.

Probe Length: Typically around 100-200 mm depending on the specific probe design.

Measurement Range: Typically ±1.5 mm to ±10 mm (displacement range, depending on the application and signal conditioning equipment).

Resolution: High resolution with precise displacement measurements down to microns (depending on system calibration).

Temperature Range:

Operating Temperature:  -40°C to +120°C

Storage Temperature: -50°C to +125°C

Output Impedance: 2-4 kΩ
