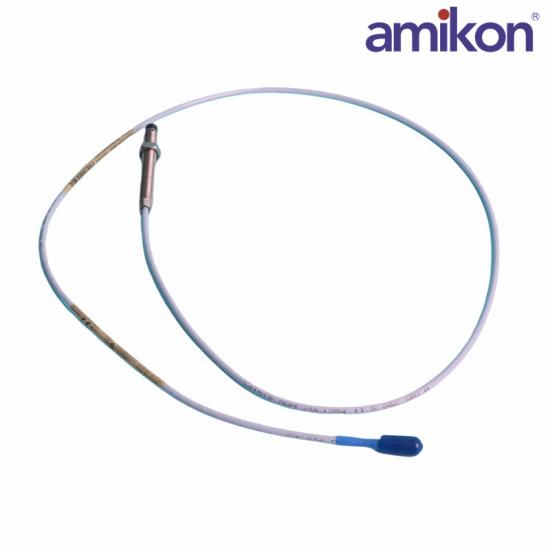

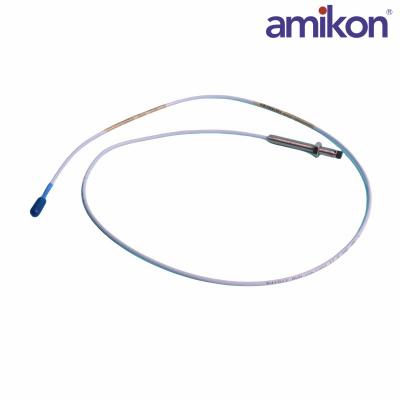

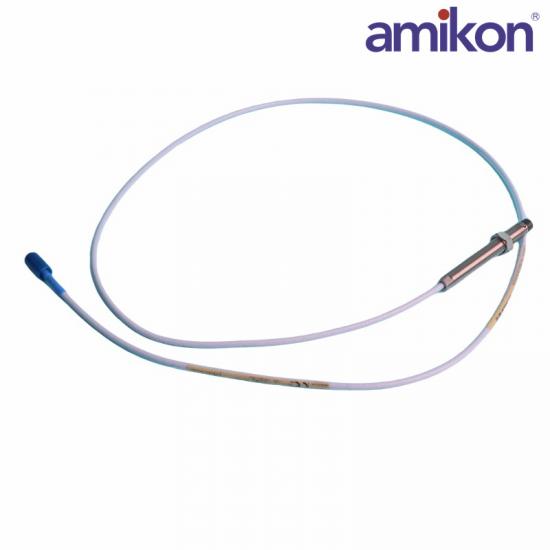

The Bently Nevada 330101-00-50-15-02-05 Proximity Probe is part of the 3300 XL 8 mm Proximity Transducer System, a trusted solution for monitoring and protecting critical rotating machinery. This proximity probe delivers precise, non-contact measurements of vibration and displacement, providing essential data for equipment diagnostics, fault detection, and protection systems.

This 330101-00-50-15-02-05 probe uses eddy current technology to measure the distance between the probe tip and a conductive surface, such as a rotating shaft, ensuring accurate vibration and displacement readings without physical contact.

The 330101-00-50-15-02-05 probe is designed for use in harsh industrial environments, withstanding high temperatures, pressures, and corrosive conditions. Its robust materials and build ensure long-term reliability and stable performance.

The probe meets the rigorous requirements of API 670, making it suitable for use in safety-critical machinery monitoring systems.

With a sensitivity of 7.87 mV/µm (200 mV/mil), the 330101-00-50-15-02-05 probe provides precise linear output across a wide measurement range, ensuring dependable diagnostics and machinery protection.

Model: 330101-00-50-15-02-05

Probe Tip Diameter: 8 mm

System Linear Range: ±2 mm (80 mils)

System Sensitivity: 7.87 mV/µm (200 mV/mil)

Cable Length:

Total length: 15 ft (4.57 m)

Operating Temperature:

Probe: -35°C to +177°C

Cable: -51°C to +177°C

Material:

Probe Tip: PEEK (Polyetheretherketone) for durability and resistance to industrial conditions.

Cable Jacket: Tefzel for protection against harsh environments.

Connector Type: Click-Lok for secure and robust connections.

Measurement Range: Precise linear output across a range of 2 mm.
