Description：

The system provides an output voltage that is directlyproportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system'sprimary applications are vibration and positionmeasurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (APi)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Specification：

Frequently asked questions

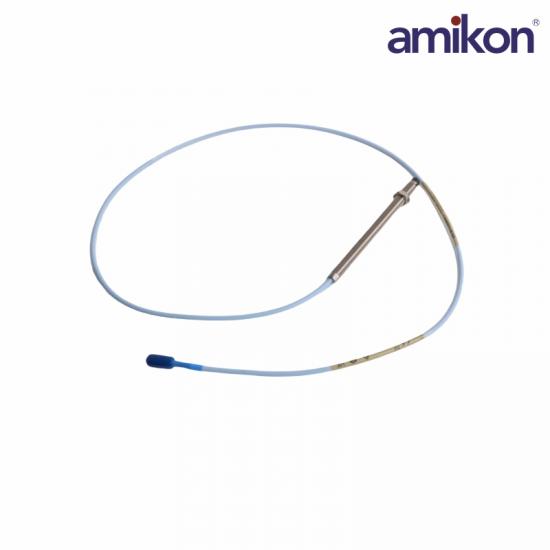

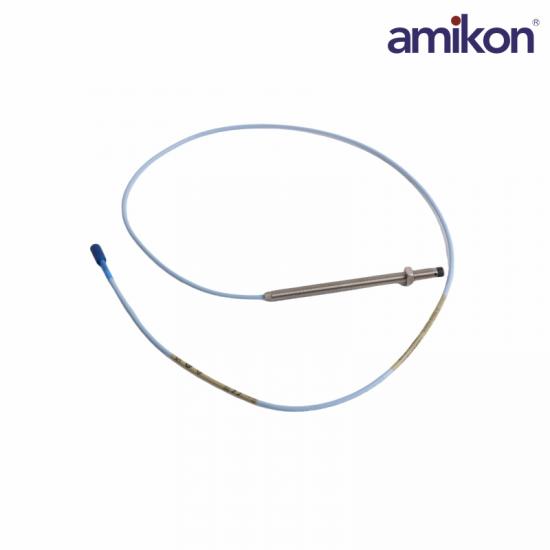

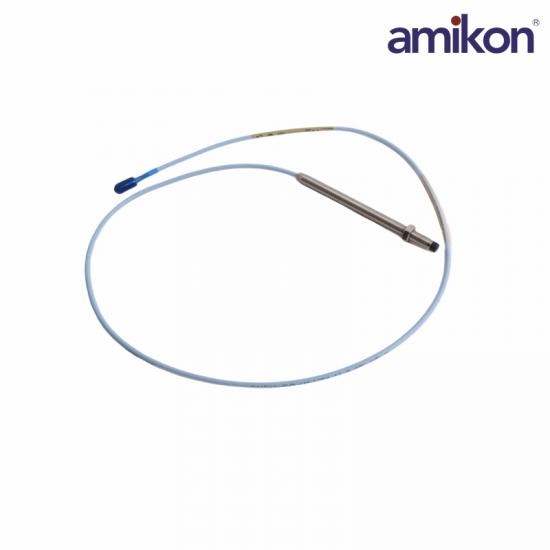

Q1: What is the Bently Nevada 330101-00-52-05-01-05?

A1: It is a 3300 XL 8 mm proximity probe designed for non-contact shaft vibration and displacement measurement in rotating machinery monitoring systems.

Q2: What thread type does this probe use?

A2: The 330101-00-52-05-01-05 probe uses 3/8-24 UNF threads and is supplied without armor.

Q3: What does the 330101-00-52-05-01-05 overall case length option “-52” represent?

A3: The “-52” option specifies an overall case length of 5.2 inches.

Q4: What does the 330101-00-52-05-01-05 total length option “-05” indicate?

A4: The “-05” option corresponds to a total cable length of 0.5 meters (approximately 1.6 feet).

Q5: What connector and cable type are included?

A5: The “-01” option includes a miniature coaxial ClickLoc connector with connector protector and a standard cable.

Product Applications

Oil and gas: Used in refineries, petrochemical plants and gas processing equipment.

Power generation: Monitors the operation status of gas turbines and steam turbines.

Chemical industry: Applicable to hazardous areas requiring explosion-proof certification (such as ATEX/IECEx)
