Manufacturer |
Bently Nevada |
|
Product No. |

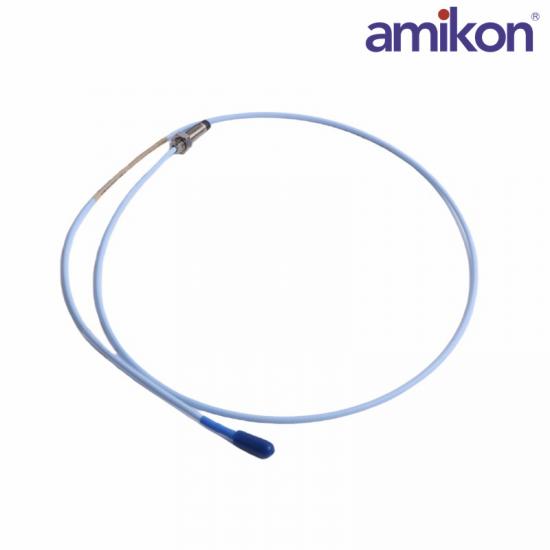

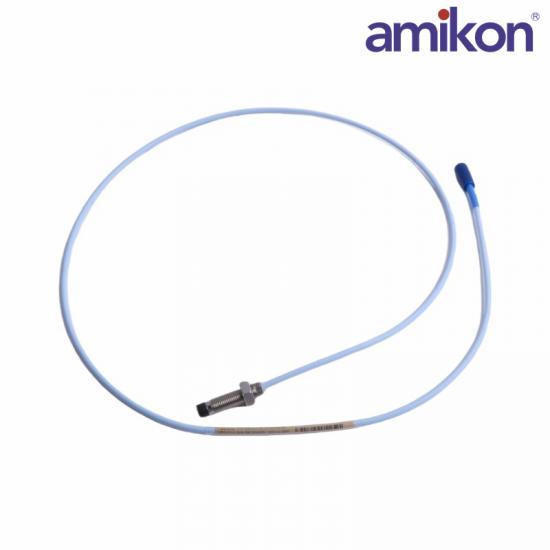

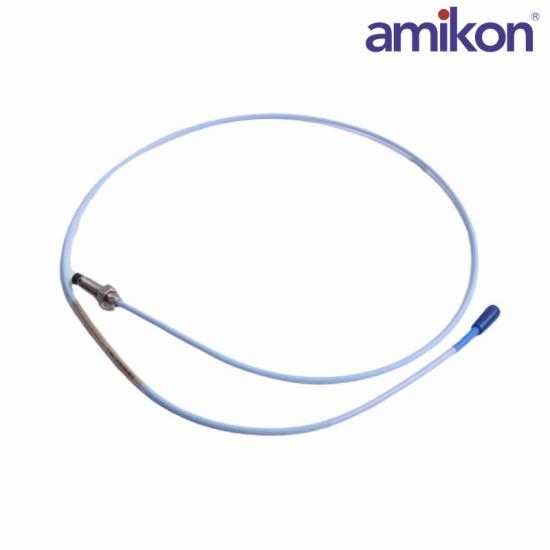

330101-00-57-10-02-05 |
|
Unthreaded Length Option (00) |
0.0 in |
|
Overall Case Length Option (57) |
5.7 in |
|
Total Length Option (10) |
1.0 m (3.3 ft) |
|
Connector & Cable-Type Option (02) |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option (05) |
CSA, ATEX, IECEx approvals |
The system provides an output voltage that is directly proportional to thedistance between the probe tip and the observed conductive surface and canmeasure both static (position) and dynamic (vibration) values. The system'sprimary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor' reference and speed measurements3.
The 3300 XL 8 mm system delivers the most advanced performance in our eddycurrent proximity transducer systems. The standard 3300 XL 8 mm 5-metresystem also fully complies with the American Petroleum Institute's (APl) 670Standard (4th Edition) for mechanical configuration, linear range, accuracy, andtemperature stability. All 3300 XL 8 mm proximity transducer systems providethis level of performance and support complete interchangeability of probes,extension cables, and Proximitor sensors, eliminating the need to match orbench calibrate individual components.
Frequently Asked Questions
Q : What does the base part number 330101 represent?
A: It designates a 3300 XL 8 mm probe with a 3/8-24 UNF English thread and no armor.
Q : What is the base part number for a probe with fluid-tight stainless steel armor?
A: The standard English thread model with armor is 330102.
Q : What is the standard linear measuring range of the 3300 XL 8 mm probe?
A: The standard linear range is 2.0 mm (80 mils).
Q : What is the scale factor or sensitivity of this proximity probe system?
A: The system sensitivity is 7.87 V/mm (200 mV/mil) when matched with a 3300 XL Proximitor sensor and target.
Product Applications
Power Industry: Steam turbines and generator sets for thermal power plants, hydropower plants, and nuclear power plants.
Oil and Gas: Centrifugal compressors and large fans for oil refineries, natural gas processing plants, and long-distance pipelines.
Petrochemicals: Industrial pumps and reactor agitators in large chemical plants such as ethylene and synthetic ammonia plants.
Metallurgy and Mining: Blast furnace blowers and main drive gearboxes for large rolling mills in steel plants.
Papermaking and Water Treatment: High-load large water supply and drainage pumps and calendering rolls for papermaking machinery.
|
