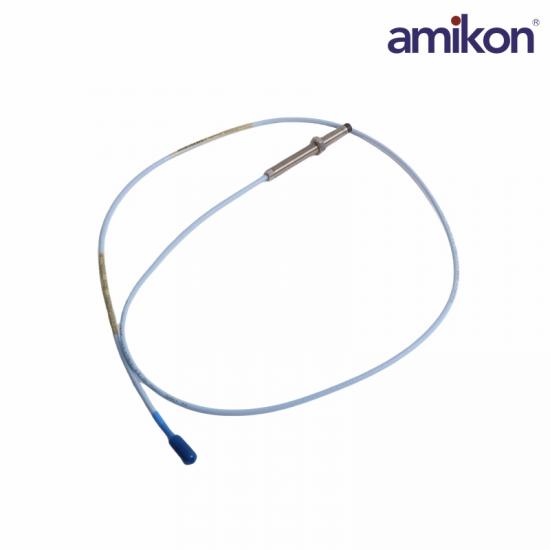

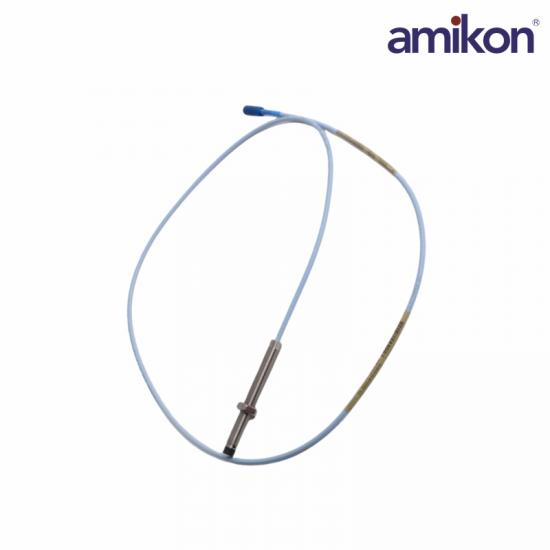

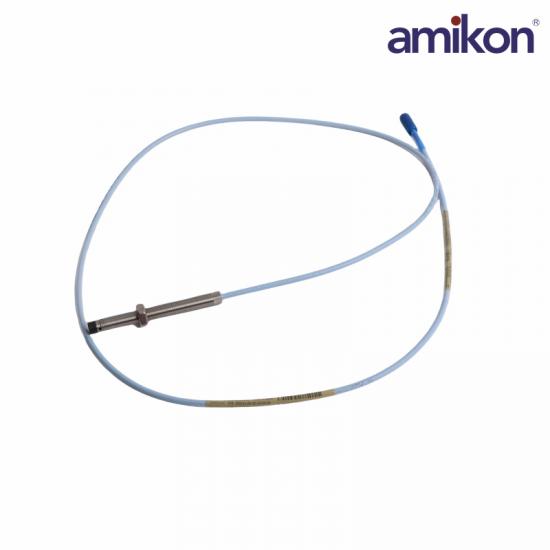

The 3300 XL 8 mm system delivers the most advance dperformance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (APi)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component isbackward compatible and interchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducer systemcomponents5. This compatibility includes the 3300 5 mmprobe, for applications in which an 8 mm probe is too largefor the available mounting space6,7.

Frequently Asked Questions

Q : What does the complete part number 330101-00-64-10-12-05 represent?

It breaks down to: 3300 XL 8mm probe, 3/8-24 UNF thread, no reverse thread, 6.4-inch unthreaded length, 1.0-meter total length, with fluid-resistant armor, and multiple approvals/hazardous area certifications.

Q : What is the operating temperature range for the probe tip?

The temperature range is -51 °C to +177 °C (-60 °F to +350 °F).

Q: What is the scale factor of this proximity system?

The scale factor is 200 mV/mil (7.87 V/mm).

Product Applications

Power sources: use large thermal power stations, nuclear power stations, train cars, electric cars, radial movement of cars.

Petroleum and chemical industry: Guangnan equipped with large-scale separate-type compressor, reciprocating type compressor, industrial wind machine, core factory, etc.

Metallurgy and Cishan: use of large drum machines, blast furnace machines and heavy-duty motors to monitor the situation and troubleshooting.
