The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.

Frequently Asked Questions

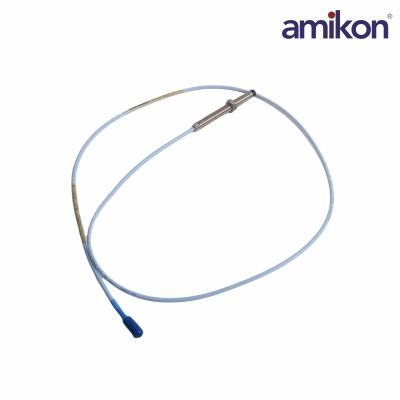

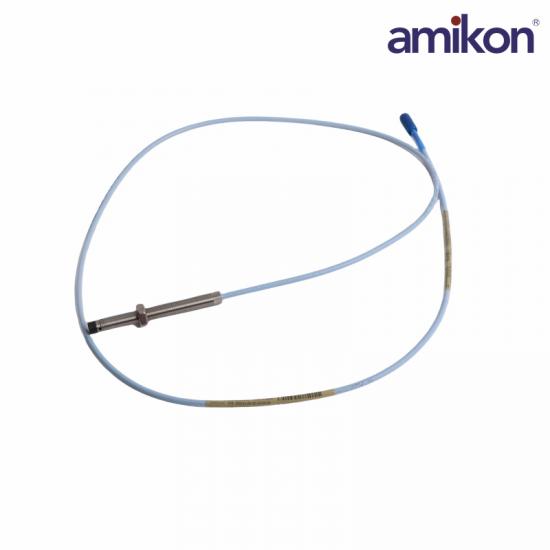

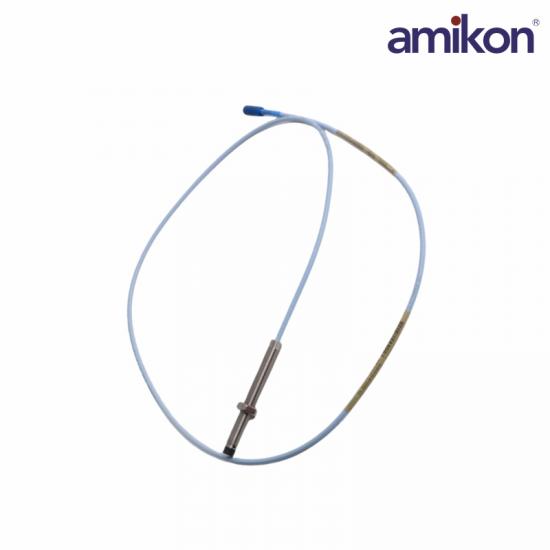

Q1: What is the Bently Nevada 330101-02-12-15-01-CN?

A1: It is a proximity probe from the 3300 series, designed for non-contact measurement of vibration and shaft displacement in rotating machinery.

Q2: What does the “02” option indicate?

A2: “02” specifies a non-threaded shell length of 20 mm.

Q3: What does the “12” option represent?

A3: “12” indicates a total shell length of 120 mm.

Q4: What does the “15” option represent?

A4: “15” refers to a total cable length of 1.5 meters (approximately 4.9 feet).

Q5: What does the “01” connector option indicate?

A5: “01” denotes a miniature coaxial ClickLoc connector with protector and standard cable.

Product Applications

Electricity industry: Steam turbines and power generation units of thermal power plants, hydropower stations, and nuclear power plants.

Petroleum and natural gas: Compressors and pumps used in petroleum exploration, refining, and liquefied natural gas (LNG) processing.

Chemistry and petrochemicals: Large centrifugal compressors, ammonia synthesis fans, air separation units.

Metallurgy and metal processing: Large blowers, oxygen compressors, blast furnace fans.
