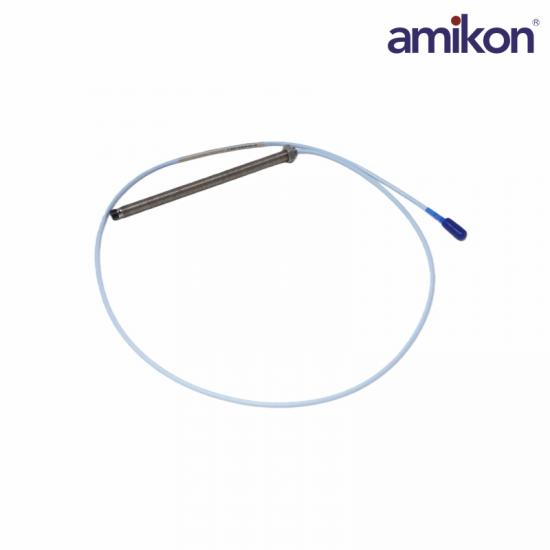

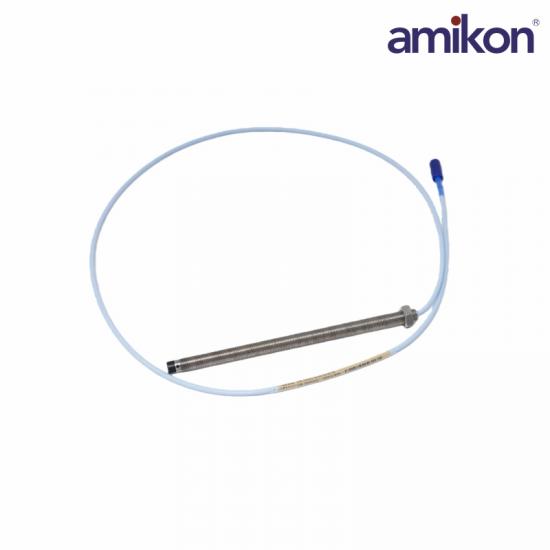

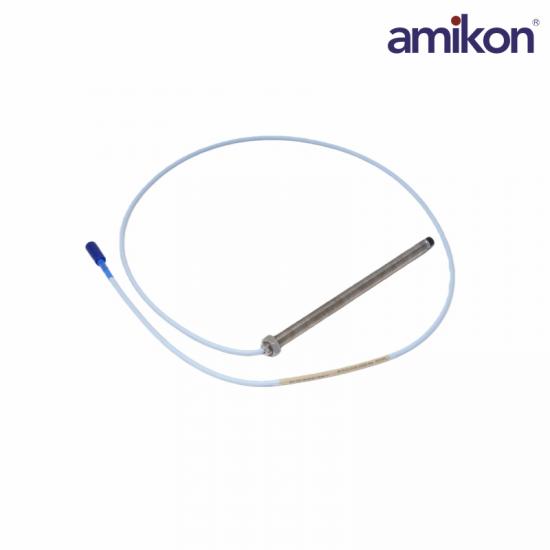

Bently Nevada 330101-02-60-05-01-05 3300 XL 8 mm Proximity Probe

330101-02-60-05-01-05
330101-02-60-05-01-05
330101-02-60-05-01-05

Bently Nevada 330101-02-60-05-01-05 3300 XL 8 mm Proximity Probe

✉  INQUIRE NOW

BENTLY NEVADA · 3300 XL 8 MM

330101-02-60-05-01-05

3300 XL 8 mm Proximity Probe

MANUFACTURERBently Nevada
MODEL330101-02-60-05-01-05
PART NUMBER330101-02-60-05-01-05
PRODUCT TYPEThreaded Eddy-Current Probe
SYSTEM FAMILY3300 XL 8 mm
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    330101-02-60-05-01-05
  • Product Origin:

    USA
  • Brand/Manufature:

    Bently Nevada
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

Bently Nevada 3300 XL 8 mm

330101-02-60-05-01-05

Price and Availability Inquiry

The 330101-02-60-05-01-05 is Official dimensional, connector, approval and measurement data for the 330101-02-60-05-01-05 proximity probe..

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 330101-02-60-05-01-05 and required quantity in your inquiry.

330101-02-60-05-01-05

Technical Specifications

Official ordering-code, mechanical and performance data decoded from Baker Hughes 3300 XL 8 mm datasheet 141194 Rev. AM.

01Product IdentityOfficial probe identification
ManufacturerBently Nevada
Article Number330101-02-60-05-01-05
Product Designation3300 XL 8 mm Probe, 3/8-24 UNF, without armor
Datasheet Reference141194 Rev. AM
02Ordering ConfigurationDecoded probe options
Unthreaded Length0.2 in (option 02)
Overall Case Length6.0 in (option 60)
Total Probe Length0.5 m (option 05)
Connector / ApprovalClickLoc with protector, standard cable / multiple approvals
03Mechanical DataPublished probe construction
Case Thread3/8-24 UNF-2A
Probe Tip8.0 mm PPS
Probe CaseAISI 303 or 304 stainless steel
Probe Cable75 ohm triaxial, FEP insulated
04Measurement PerformancePublished standard 3300 XL 8 mm data
Linear Range2.0 mm (80 mils)
Recommended Gap1.27 mm (50 mils)
Scale Factor7.87 V/mm (200 mV/mil), +/-5%
Frequency Response0 to 10 kHz (+0, -3 dB)

330101-02-60-05-01-05 Product Support

Frequently Asked Questions

Product-specific compatibility, application, installation, commissioning and ordering guidance for 330101-02-60-05-01-05.

01

Which case dimensions identify this version?

The probe has a 0.2 in unthreaded section and a 6.0 in overall 3/8-24 UNF case.

02

Is a connector protector included?

Yes. Connector option 01 provides the standard cable and ClickLoc connector with protector.

03

Which Proximitor length should be selected?

Pair the 0.5 m probe with an extension cable so their combined length equals the calibrated Proximitor system length.

04

How should the connector protector be installed?

Inspect and fully engage the ClickLoc connector before seating the protector to prevent moisture or oil contamination.

05

Which electrical output should be expected at the recommended gap?

At approximately 1.27 mm from an AISI 4140 steel target, the system output should be near -9 Vdc.

06

Which certificates apply to suffix 05?

Suffix 05 denotes CSA, ATEX and IECEx approvals; the installation must still follow the applicable control drawing.

07

Which measurements should be recorded before replacement?

Record the threaded insertion depth, probe gap, system length, output voltage and full label code.
