Description：

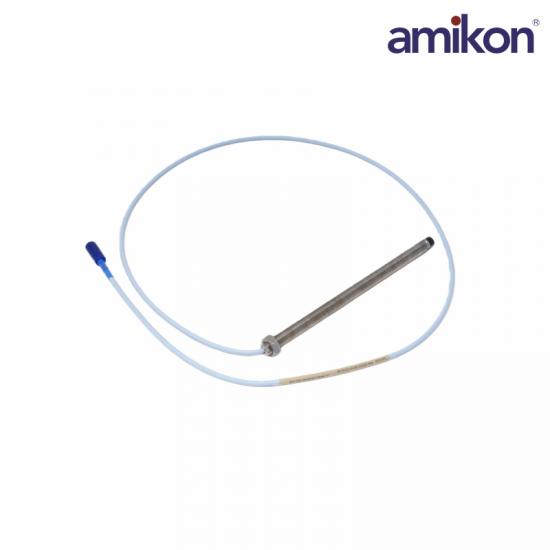

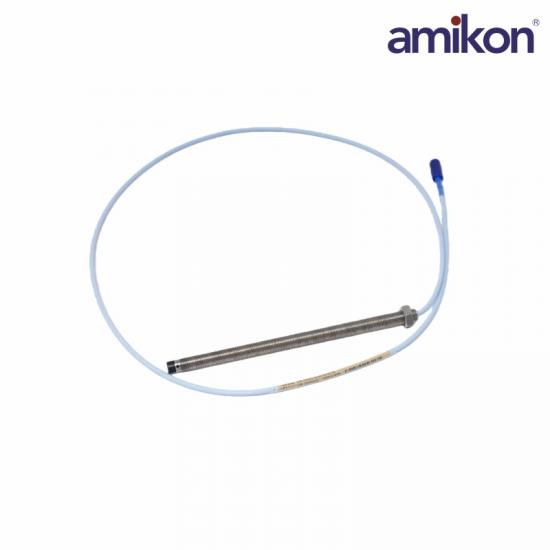

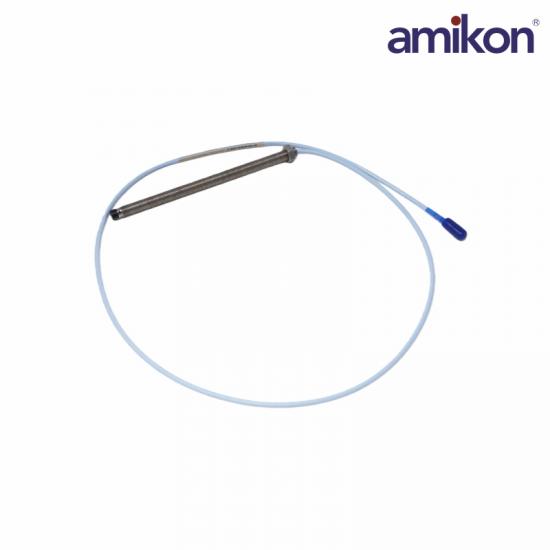

The Bently Nevada 330101-04-30-05-01-05 is a 3300 XL 8 mm Proximity Probe used for continuous shaft vibration and displacement monitoring in industrial rotating machinery. As a key element of the 3300 XL 8 mm Proximity Transducer System, the probe operates with a compatible extension cable and Proximitor Sensor to deliver precise, non-contact measurements for machinery protection and condition monitoring applications.

The probe is built on the 3300 XL platform, which is recognized for its excellent measurement stability, repeatability, and environmental performance. When integrated into the standard 3300 XL 8 mm 5-meter transducer system, it meets the requirements of API 670 for mechanical configuration, linear operating range, accuracy, and temperature stability. These characteristics make it suitable for machinery protection systems used on high-value rotating assets operating under demanding process conditions.

Specification：

Frequently asked questions

Q : What does the 330101-04-30-05-01-05 base model number "330101" signify?

It designates a 3300 XL 8mm proximity probe with standard English threads (3/8-24 UNF).

Q : What does the "-04" option represent in this part number?

It means the probe case has an unthreaded length of 0.4 inches at the front tip.

Q : What is the Average Scale Factor (ASF) of this system?

The ASF is 7.87 V/mm (200 mV/mil) when connected to a matching 3300 XL Proximitor Sensor.

Q : What is the acceptable tolerance window for setting the Gap Voltage?

The acceptable field installation window is between -9.0 Vdc and -11.0 Vdc.

Product Applications

Thermal power plants/nuclear power plants/hydropower stations: Steam turbines, gas turbines, high-power generators, feedwater pumps, cooling fans.

Petrochemical plants/refineries: Centrifugal compressors (such as cracked gas compressors), reciprocating compressors, large high-pressure pumps, extrusion presses.

Iron and steel metallurgical plants: Blast furnace blowers, oxygen generator compressors, large rolling mill drive chains.

Large air separation plants/fertilizer plants: Air compressor units, ammonia compressors.
