Description：

The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component isbackward compatible and interchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducer systemcomponents5. This compatibility includes the 3300 5 mmprobe, for applications in which an 8 mm probe is too largefor the available mounting space6,7.

Specification：

Frequently asked questions

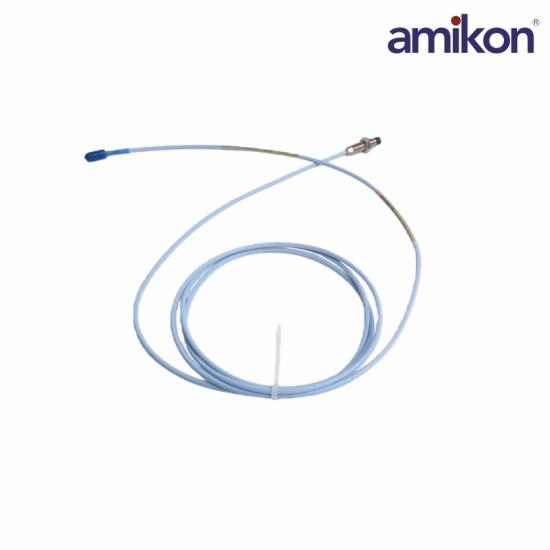

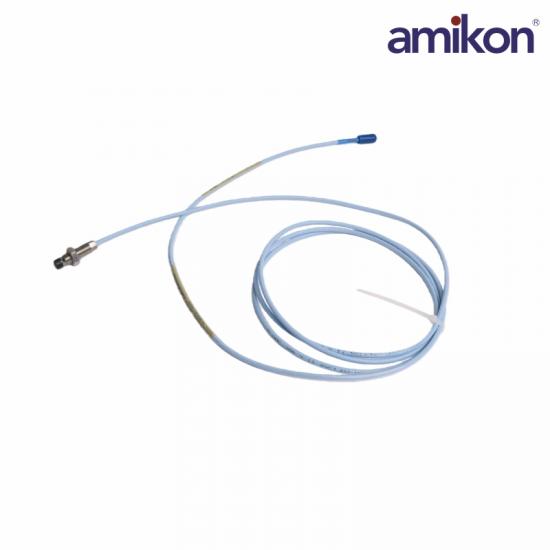

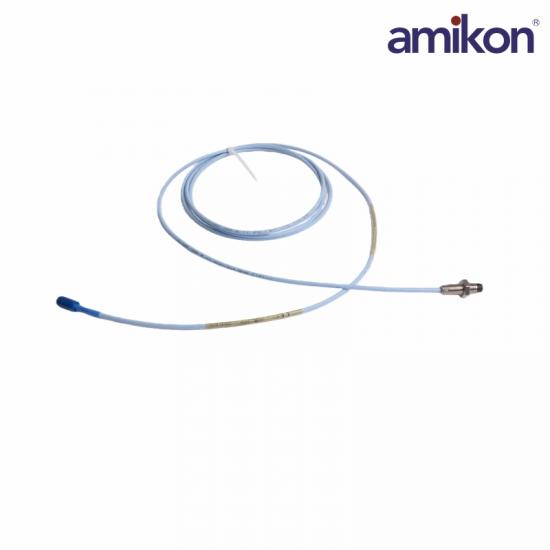

Q1: What is the Bently Nevada 330101-20-45-05-02-05 Proximity Probe?

A1: It is a non-contact proximity probe used for measuring shaft vibration and displacement in rotating machinery monitoring systems.

Q2: What is the 330101-20-45-05-02-05 linear measurement range?

A2: The 330101-20-45-05-02-05 probe provides a linear range of 2 mm (80 mils), enabling accurate displacement and vibration monitoring.

Q3: What is the 330101-20-45-05-02-05 operating temperature range?

A3: The 330101-20-45-05-02-05 probe operates within −51°C to +177°C (−60°F to +351°F), making it suitable for harsh industrial environments.

Q4: What is the 330101-20-45-05-02-05 incremental scale factor?

A4: The 330101-20-45-05-02-05 incremental scale factor is 200 mV/mil (7.87 mV/µm), ensuring precise signal sensitivity and measurement accuracy.

Product Applications

Power Industry: Used for monitoring shaft vibration and axial displacement in steam turbines, gas turbines, and large generator sets to ensure the stability of power generation equipment under high-speed rotation.

Petroleum and Chemical Industry: Installed on large centrifugal compressors, pumps, and fans to monitor shaft condition and prevent production downtime risks due to unit failure.

Heavy Industry (Mining, Metallurgy): Used to monitor bearing wear and mechanical vibration in heavy rotating equipment such as large mills and fans.
