Model Number: 330101-25-44-10-02-05

Unthreaded Length Option: 25 = 2.5 in

Overall Case Length 0ption: 44 = 4.4in

Total Length Option: 10 = 1.0 meter(3.3 feet)

Connector and Cable-Type Option: 02=Miniature coaxial ClickLoc'connector, standard cable

Agency Approval Option: 05=CSA,ATEX, lECEx Approvals

Operating Temperature: -40°C to +150°C (-40°F to +302°F) for the probe

Storage Temperature: -50°C to +160°C (-58°F to +320°F)

Humidity: 0 to 100% RH (non-condensing)

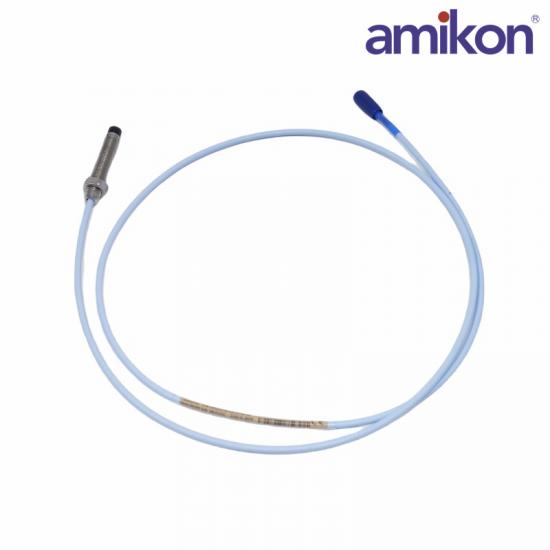

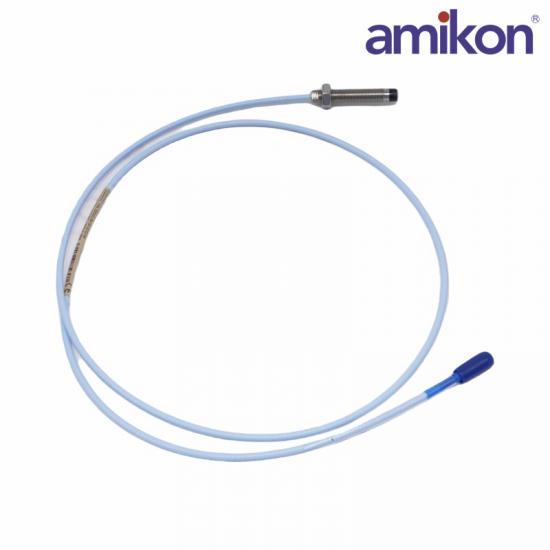

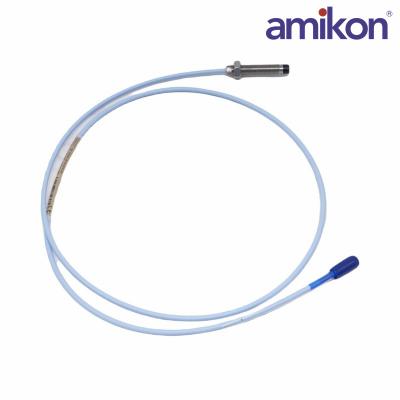

The Bently Nevada 330101-25-44-10-02-05 is a high-performance 3300 XL 8 mm Proximity Probe engineered for continuous vibration and shaft position monitoring in rotating machinery. As part of the renowned 3300 XL 8 mm Proximity Transducer System, this probe delivers accurate non-contact measurements for critical assets including steam turbines, gas turbines, compressors, pumps, motors, generators, and other industrial rotating equipment.

The probe also offers backward compatibility with many legacy 3300 Series 5 mm and 8 mm transducer system components, providing a practical upgrade path for existing installations. In applications where installation space is limited, the broader 3300 family also supports 5 mm probes while maintaining compatibility with the monitoring system, giving engineers greater flexibility when designing or upgrading machinery protection systems.

Frequently Asked Questions

Q : What is the diameter of the 330101-25-44-10-02-05 probe tip?

A : The probe tip has a nominal diameter of 8 mm.

Q : What thread type does this 330101-25-44-10-02-05probe use?

A : It uses an English thread size of 3/8-24 UNF.

Q : Is the cable on this part number armored or unarmored?

A : The -02 option designates a standard unarmored cable with a ClickLoc coaxial connector.

Q : Can I connect this 1.0-meter probe directly to a monitor rack?

A : No. This probe must be connected to a matching 3300 XL Proximitor Sensor via a dedicated Extension Cable.

Product Applications

Power Industry (Power Plants): Shaft vibration, shaft displacement, and speed measurement for key equipment such as large steam turbine generator sets, gas turbines, and feedwater pumps in thermal power plants, nuclear power plants, and hydropower stations.

Oil and Gas (Refineries/Natural Gas Plants): Condition monitoring of high-risk, continuously operating units such as crude oil transfer pumps, large centrifugal gas compressors, and hydrogenation units.

Chemical and Petrochemical (Chemical Plants): Mechanical protection of equipment such as ethylene units, cracked gas compressors, and large mixers.

Metallurgy and Steel Plants: Wear and vibration monitoring of blast furnace blowers, large rolling mill units, and roll bearings.

Mining and Cement Plants: Fault early warning for heavy rotating equipment such as large mining mills, crushers, and large ventilation fans.

Paper and Large Manufacturing Plants: Continuous condition monitoring of paper machine main drive shafts and large pumps.
