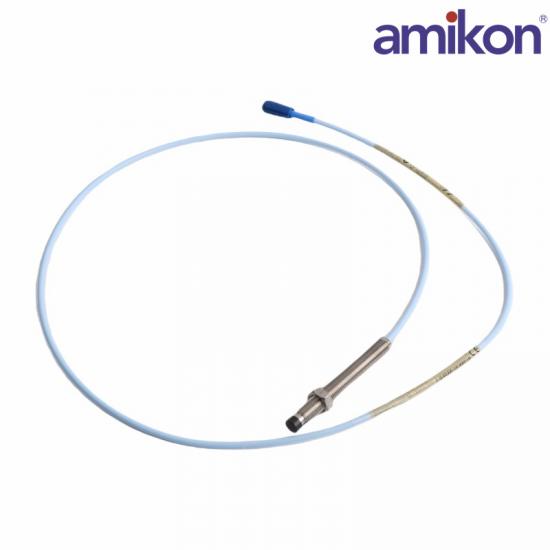

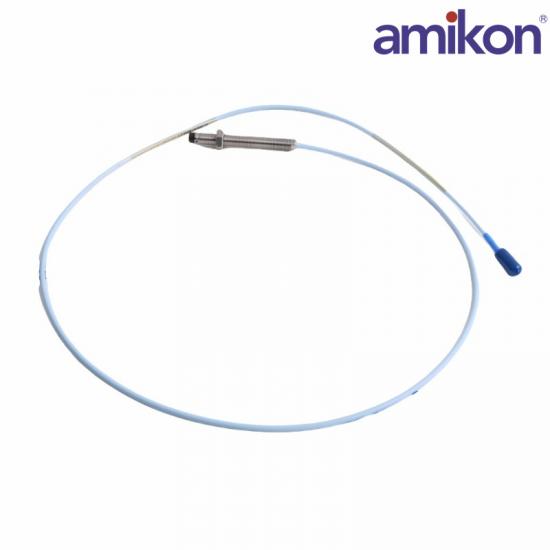

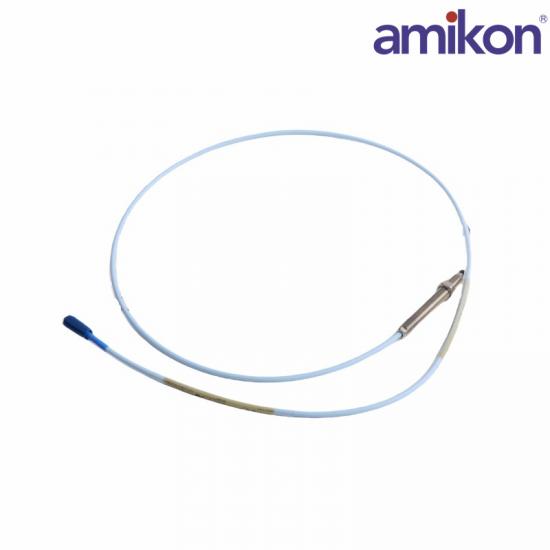

The system provides an output voltage that is directly proportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system's primary applications are vibration and positionmeasurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3.The 3300 XL 8 mm system delivers the most advance dperformance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Frequently Asked Questions

Q : What does the prefix "330101" signify?

A: It designates a Bently Nevada 3300 XL 8 mm proximity probe with a 3/8-24 UNF English thread and a standard cable without stainless steel armor.

Q : What does the "-30" option code mean?

A: It represents an Unthreaded Length of 3.0 inches, which is the smooth portion of the probe case starting from the tip.

Q : What is the linear range of this 8 mm probe?

A: The linear range is 80 mils (2.0 mm), typically starting at 10 mils (0.25 mm) and ending at 90 mils (2.25 mm) from the probe tip.

Q : What is the operating temperature range for the probe tip?

A: The probe tip and cable are rated for a wide temperature range of -51 °C to +177 °C (-60 °F to +350 °F).

Product Applications

Power Industry Plants: Vibration monitoring and mechanical protection for large rotating equipment such as steam turbines, generators, and boiler feed pumps in thermal power plants, hydropower stations, and nuclear power plants.

Oil and Gas Plants: Large centrifugal compressors, process gas compressors, fans, and heavy-duty pumps in upstream drilling and production lines, midstream long-distance pipelines, and downstream refineries.

Chemical and Petrochemical Plants: Condition monitoring of compressor units in various continuous, high-temperature, and high-pressure chemical production lines such as ethylene and synthetic ammonia plants.

Metallurgical and Mining Plants: Real-time condition monitoring and fault diagnosis of large rolling mills, heavy-duty large electric motors used in mining, and key supporting rotating systems.
