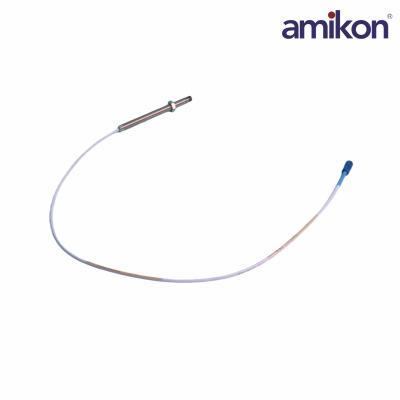

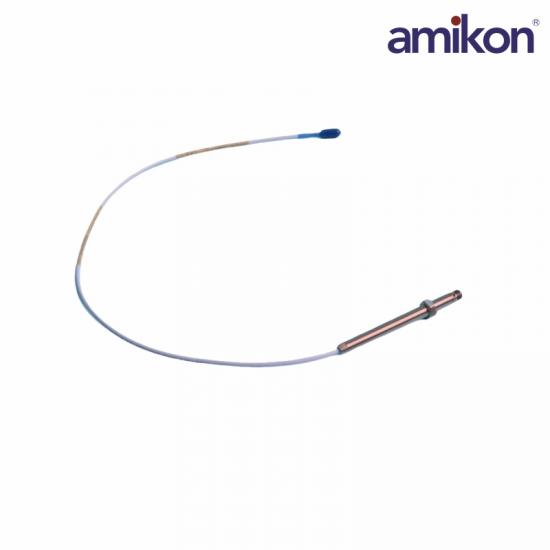

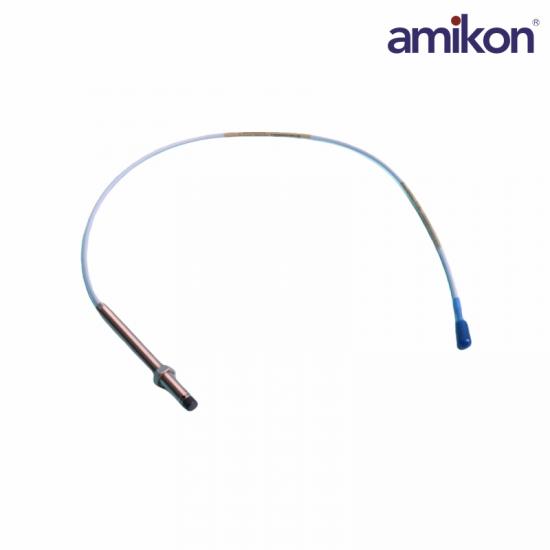

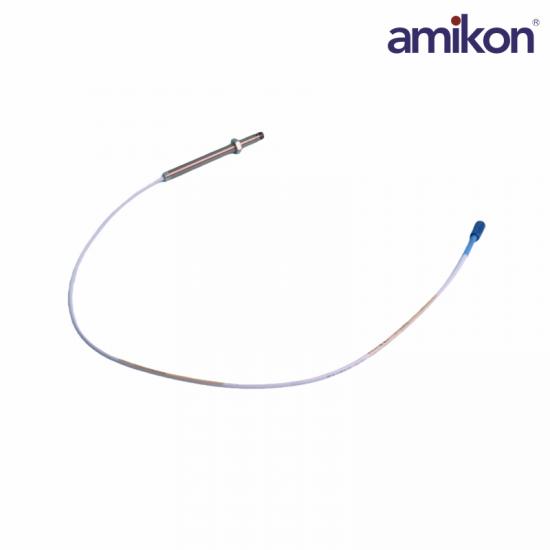

Bently Nevada 330101-33-66-10-02-05 3300 XL 8 mm Proximity Probe

330101-33-66-10-02-05
330101-33-66-10-02-05
330101-33-66-10-02-05

Bently Nevada 330101-33-66-10-02-05 3300 XL 8 mm Proximity Probe

✉  INQUIRE NOW

BENTLY NEVADA · 3300 XL 8 mm Proximity Transducer System

330101-33-66-10-02-05

3300 XL 8 mm Proximity Probe

MANUFACTURERBently Nevada
MODEL330101-33-66-10-02-05
PART NUMBER330101-33-66-10-02-05
PRODUCT TYPE3300 XL 8 mm Proximity Probe
SYSTEM FAMILY3300 XL 8 mm Proximity Transducer System
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    330101-33-66-10-02-05

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    Bently Nevada

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

Bently Nevada 3300 XL 8 mm Proximity Transducer System

330101-33-66-10-02-05

Price and Availability Inquiry

The Bently Nevada 330101-33-66-10-02-05 is the 3300 XL 8 mm Proximity Probe configuration. 3/8-24 UNF probe without armor, configured with 3.3-inch unthreaded length and 6.6-inch case.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 330101-33-66-10-02-05 and required quantity in your inquiry.

BENTLY NEVADA 330101-33-66-10-02-05

Technical Specifications

Source-verified identification, order-code, operating and installation data.

01Product IdentityOfficial catalog identification
MANUFACTURER
Bently Nevada
ORDER NUMBER
330101-33-66-10-02-05
PRODUCT DESIGNATION
3300 XL 8 mm Proximity Probe
PROBE BODY
3/8-24 UNF; without armor
02Order-Code ConfigurationDecoded official order code
UNTHREADED LENGTH 33
3.3 in
OVERALL CASE LENGTH 66
6.6 in
TOTAL LENGTH 10
1.0 m (3.3 ft)
CABLE / CONNECTOR 02
Standard cable; no connector protector
03Probe ConstructionPublished mechanical data
TIP MATERIAL
PPS
CASE MATERIAL
AISI 303 / 304 stainless steel
CABLE TYPE
75 Ω triaxial; FEP insulated
MINIMUM BEND RADIUS
25.4 mm (1.0 in)
04Operating DataPublished environmental data
PROBE TEMPERATURE
−52 to +177 °C
THREAD
3/8-24 UNF
LEAD ARMOR
None
APPROVAL OPTION 05
CSA / ATEX / IECEx

Bently Nevada 330101-33-66-10-02-05 Product Support

Frequently Asked Questions

Insertion geometry, cable configuration, system integration, approvals and ordering guidance for 330101-33-66-10-02-05.

01

How do the 3.3 inch unthreaded and 6.6 inch case dimensions affect installation?

Codes 33 and 66 specify 3.3 inches of unthreaded length and a 6.6 inch overall case. Verify insertion depth, bracket clearance and target gap against the machine drawing.

02

Which body thread and armor option are built into this variant?

The probe body uses a 3/8-24 UNF thread and the 330101 construction is without armor. Confirm that the installed lead does not require armored protection.

03

Which cable termination is provided by option 02?

Option 02 supplies standard 75 Ω triaxial, FEP-insulated cable without a connector protector. Inspect the mating connection and provide external protection if required by the installation.

04

How should this geometry be integrated with a 3300 XL 8 mm system?

Match the probe to compatible 3300 XL 8 mm extension-cable and Proximitor components, then confirm the complete calibrated system length before commissioning.

05

Which certification package accompanies suffix 05?

Suffix 05 selects the multiple-approval option for CSA, ATEX and IECEx. Check that the approval marking meets the installation location.

06

Which material and temperature limits support application review?

The PPS tip and AISI 303 or 304 stainless-steel case operate over the published −52 to +177 °C probe range; minimum cable bend radius is 25.4 mm.

07

Which dimensions and options should procurement verify before release?

Verify 330101-33-66-10-02-05, 3.3 inch unthreaded length, 6.6 inch case, 1.0 m standard cable, no armor, no connector protector and approval option 05.
