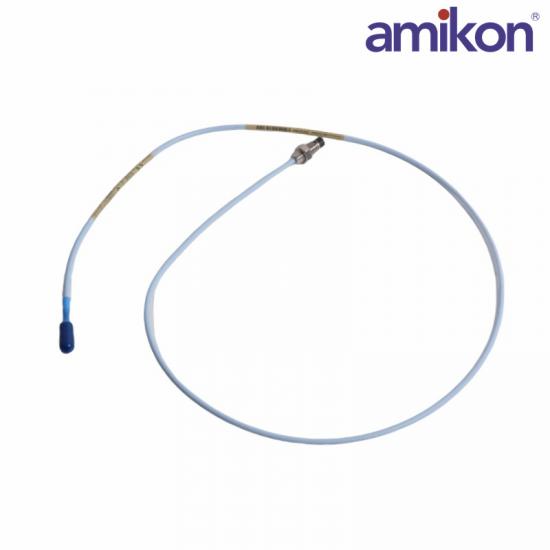

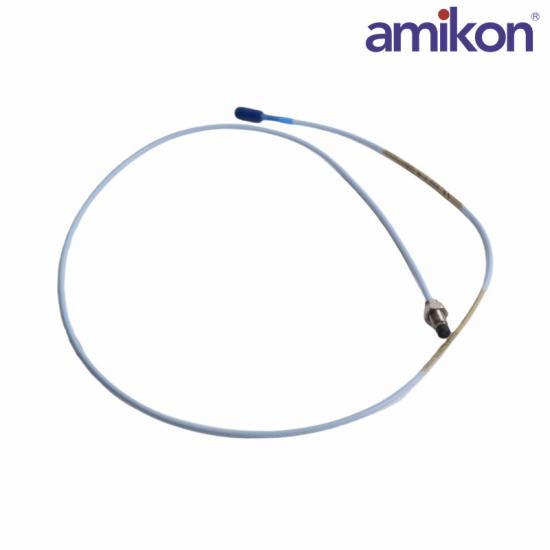

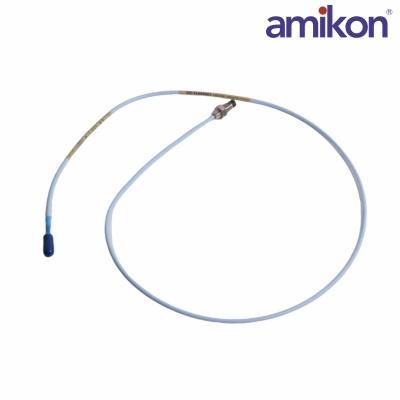

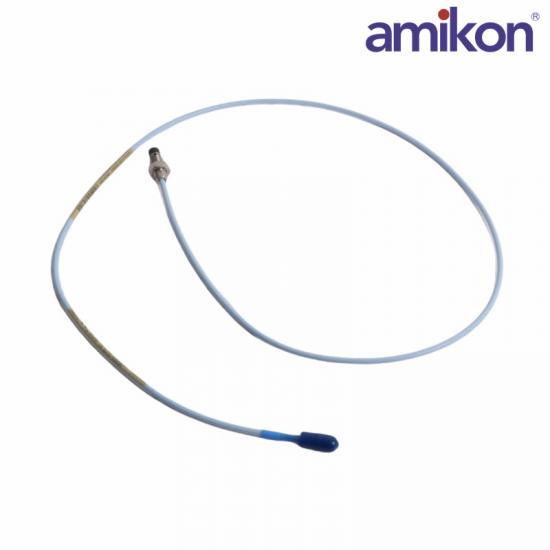

The Bently Nevada 330101-36-80-10-02-05 is a premium proximity probe from the 3300 XL 8 mm Proximity Transducer System, specifically engineered for non-contact vibration and position measurement. Its robust design, high precision, and compliance with industry standards make it a preferred choice for monitoring and protecting critical machinery in sectors such as oil and gas, power generation, and industrial manufacturing.

The 330101-36-80-10-02-05 probe uses eddy current technology to measure the gap between the probe tip and a conductive target surface, such as a rotating shaft.

The 330101-36-80-10-02-05 probe is designed to withstand harsh industrial environments, including extreme temperatures, high pressures, and corrosive atmospheres, ensuring consistent performance over time.

This 330101-36-80-10-02-05 model adheres to API 670 standards, a benchmark for machinery protection and monitoring, ensuring reliable operation in safety-critical applications.

The 330101-36-80-10-02-05 comes with an extended cable length of 36 ft (11 m), making it ideal for applications requiring greater distance between the probe and monitoring system.

8 mm Tip Diameter: Standard size suitable for a wide range of industrial applications.

Model: 330101-36-80-10-02-05

Probe Tip Diameter: 8 mm

System Linear Range: ±2 mm (80 mils)

System Sensitivity: 7.87 mV/µm (200 mV/mil)

Probe cable: 36 ft (11 m)

Operating Temperature:

Probe: -35°C to +177°C

Cable: -51°C to +177°C
