Manufacturer: Bently Nevada

Product Number: 330101-XX-XX-20-02-05 MOD:147773-00-12

Product Type: Proximity Probes

Dimension: 18.5x18.5x1.5cm

Weight: 0.08kg

Total Length Option: 2.0 meters (6.6 feet)

Connector and Cable-Type Option: Miniature coaxial ClickLoc connector, standard cable

Agency Approval Option: CSA, ATEX, IECEx  Approvals

Storage Temperature : -51 degrees Celsius to +177 degrees Celsius

Unthreaded Length Option: 0 mm

Operating and Storage Temperature: -52°C to +177°C (-62°F to +350°F)

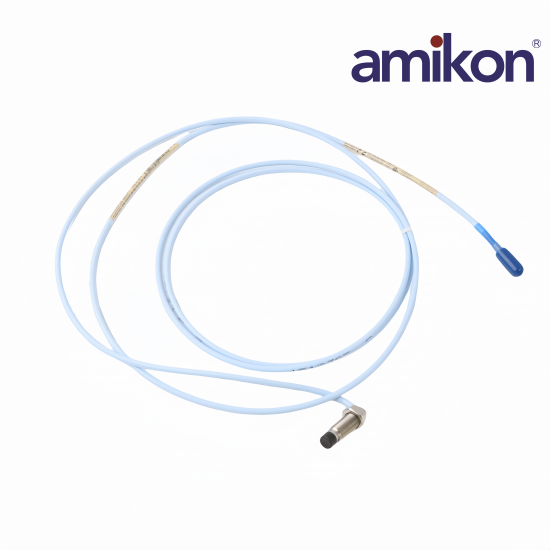

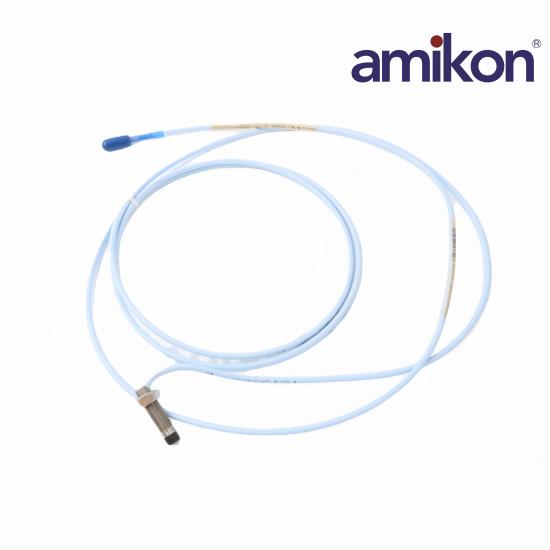

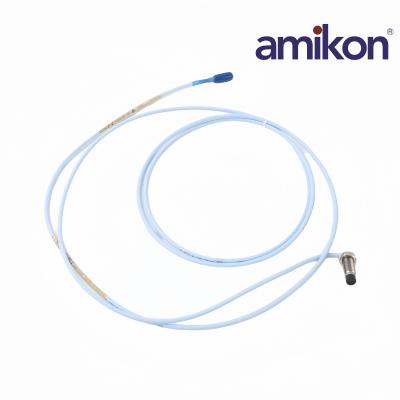

330101-00-20-10-02-05 is a Proximity Probe  manufactured by Bently Nevada and used in Proximity Transducer System. The Proximity Transducer System and Sensors of the 3300 XL series work with replaceable probes of different length, armor, and connectors made by Bently Nevada. The 3300 XL 8 mm system provides the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-metre system also completely complies with the API 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. This level of performance is provided by all 3300 XL 8 mm proximity transducer systems, which also offer total interchangeability of probes, extension cables, and Proximitor sensors, removing the need to match or bench calibrate individual components. Each component of the 3300 XL 8 mm Transducer System is backwards compatible and interchangeable4 with non-XL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, which is useful in applications where an 8 mm probe would be too large for the limited mounting area.
