The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and canmeasure both static (position) and dynamic (vibration) values. The system's primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor' reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advanced performance in our eddycurrent proximity transducer systems. The standard 3300 XL 8 mm 5-metresystem also fully complies with the American Petroleum Institute's (APl) 670Standard (4th Edition) for mechanical configuration, linear range, accuracy, andtemperature stability. All 3300 XL 8 mm proximity transducer systems providethis level of performance and support complete interchangeability of probes,extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Frequently Asked Questions

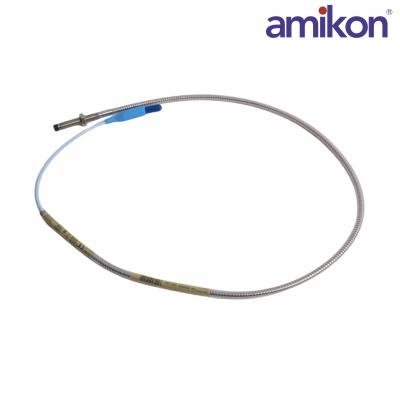

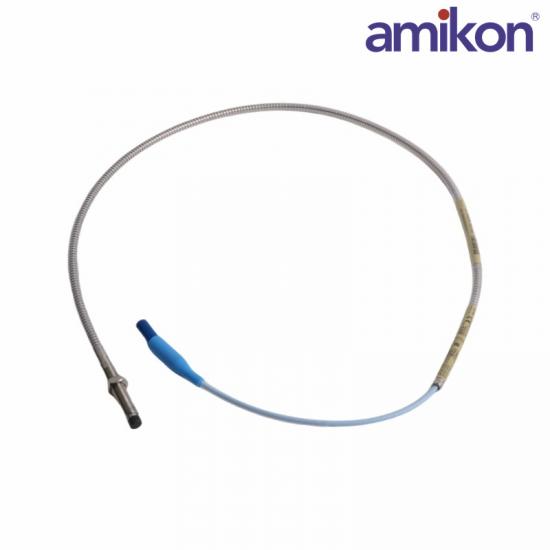

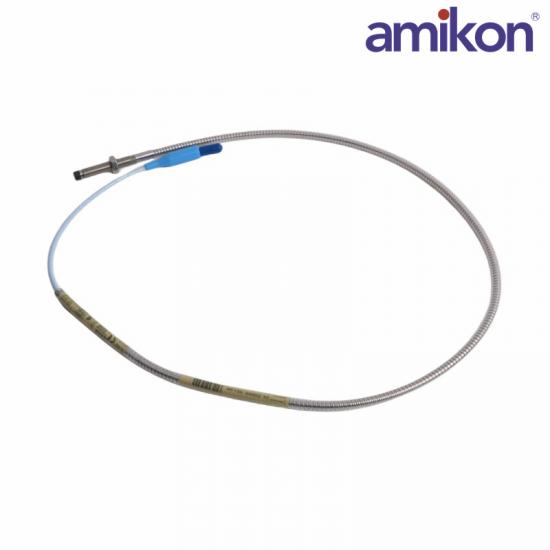

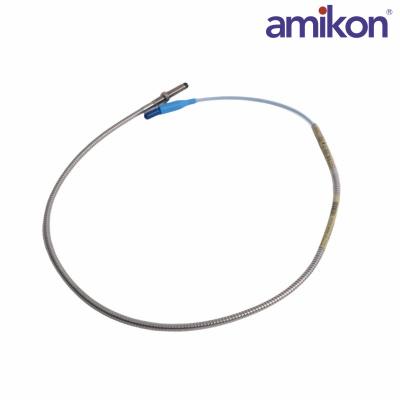

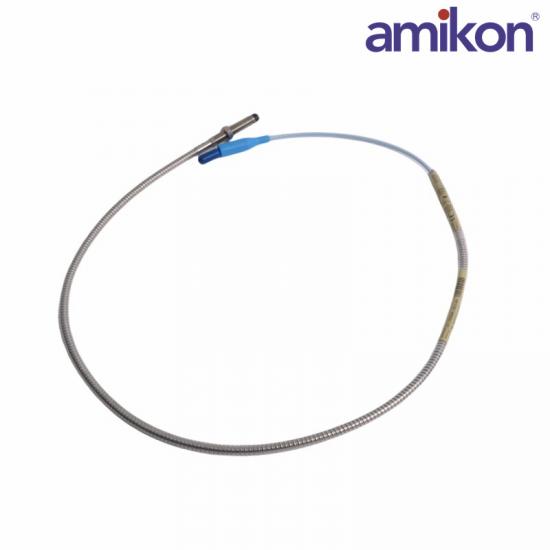

Q : What is the 330102-00-20-30-12-CN?

A: It is a 3300 XL Series 8 mm Eddy Current Proximity Probe manufactured by Bently Nevada. It is a non-contact sensor used for high-precision machinery condition monitoring.

Q : What does the thread code "330102" mean?

A: It indicates a 3300 XL 8 mm probe with a 3/8-24 UNF English reverse mount thread.

Q : Can this probe withstand high temperatures inside a turbine?

A: Yes. The probe tip is made of Polyphenylene Sulfide (PPS) engineering plastic, and the cable is Teflon-insulated. It has a standard operating temperature range of -51 °C to +177 °C (-60 °F to +350 °F).

Q : Which extension cable should be paired with this 3.0-meter probe?

A: The 3300 XL 8mm system only supports total lengths of 5.0 meters or 9.0 meters. Therefore, a 3.0m probe must be paired with either a 2.0-meter or a 6.0-meter extension cable.

Product Applications

Power Industry: Monitoring of shaft vibration and displacement in steam turbines and gas turbines of large thermal power plants.

Petrochemical Industry: Key rotating machinery such as centrifugal compressors, large centrifugal pumps, and fans in oil refineries and chemical plants.

Steel and Manufacturing Industry: Monitoring of mechanical condition and bearing operation of blast furnace blowers, large electric motors, and compressor units.
