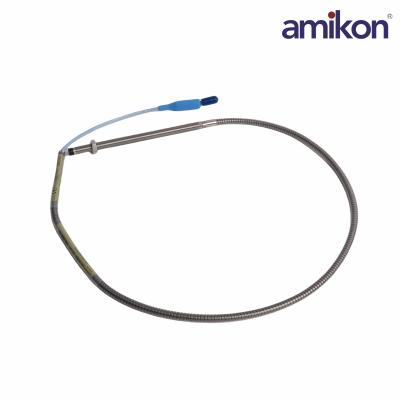

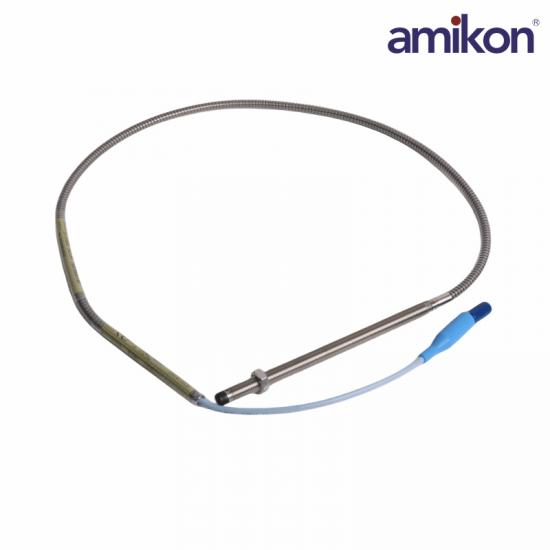

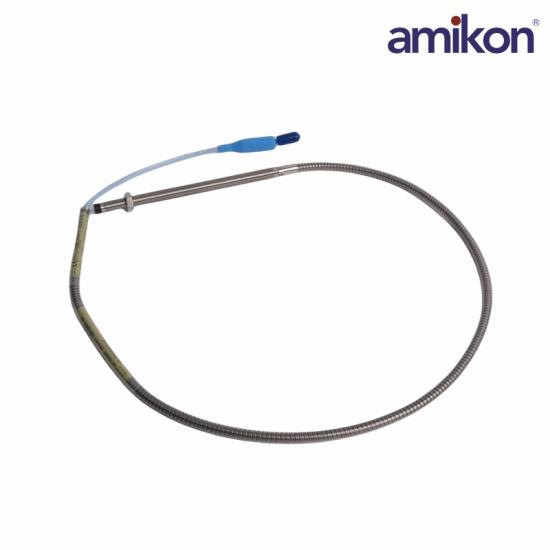

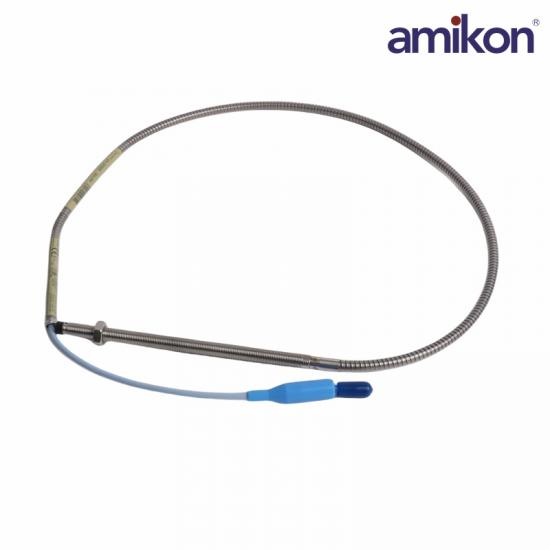

Product Number: 330102-00-35-05-02-05

Power Requirement: –17.5 Vdc to –26 Vdc

Supply Sensitivity: Less than 2 mV change

Output Resistance: 50 Ω

Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical

Linear Range: 2 mm (80 mils)

Standard 5 or 1 meter System: 7.87 V/mm (200 mV/mil) ± 5%

Standard 9 meter System: 7.87 V/mm (200 mV/mil) ± 6.5%

Minimum: 50.8 mm (2 in)

Recommended Minimum: 76.2 mm (3 in)

Probe Tip Material: Polyphenylene sulfide (PPS)

Probe Case Material: AISI 303 or 304 stainless steel (SST)

The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems.  The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum institute's(APl)670 Standard for mechanical configuration, linear range,accuracy,and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes,extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component isbackward compatible and interchangeable4 with other non-XL3300 series 5 mm and 8 mm transducer systemcomponents5,This compatibility includes the 3300 5 mmprobe, for applications in which an 8 mm probe is too largefor the available mounting space6,7.
