Description：

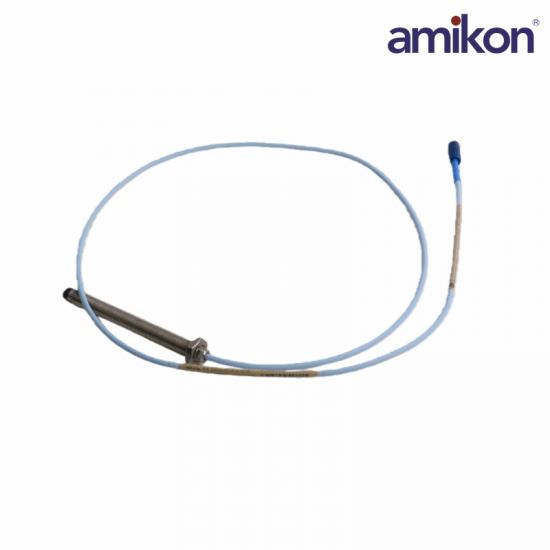

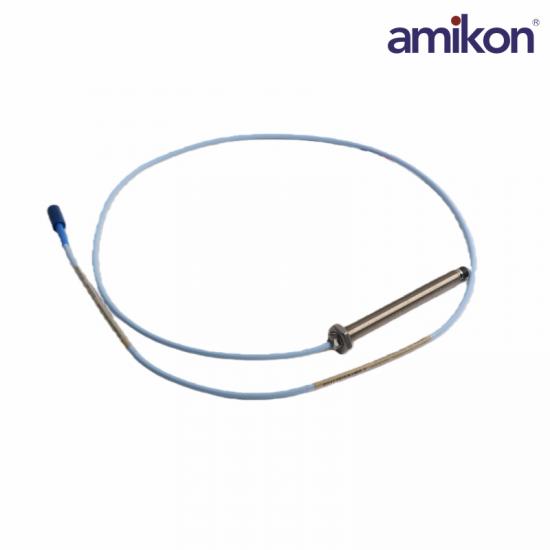

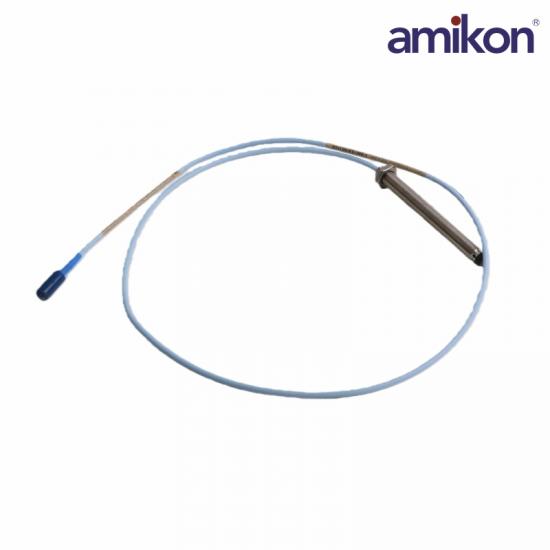

The Bently Nevada 330103-00-03-15-01-CN is a 3300 XL 8 mm proximity probe used for industrial vibration monitoring. Key specifications for this model typically include a 0 mm unthreaded length, 30 mm case length, 1.5-metre total length, miniature coaxial ClickLoc connector, and specific CN approvals.

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (APi)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 xL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component isbackward compatible and inter changeable 4 with other non-XL 3300 series 5 mm and 8 mm transducer systemcomponents5. This compatibility includes the 3300 5 mmprobe, for applications in which an 8 mm probe is too large

for the available mounting space6,7.

Specification：

Frequently asked questions

Q1: What is the Bently Nevada 330103-00-03-15-01-CN Proximity Probe?

A1: It is a 3300 XL 8 mm proximity probe designed for non-contact vibration and displacement measurement in rotating machinery monitoring systems.

Q2: What is the 330103-00-03-15-01-CN unthreaded length of this probe?

A2: The 330103-00-03-15-01-CN unthreaded length option “00” indicates 0 mm.

Q3: What is the 330103-00-03-15-01-CN overall case length?

A3: The 330103-00-03-15-01-CN overall case length option “03” corresponds to 30 mm.

Q4: What is the 330103-00-03-15-01-CN total probe length?

A4: The 330103-00-03-15-01-CN total length option “15” indicates a probe length of 1.5 metres.

Q5: What connector type is used?

A5: It uses a Miniature coaxial ClickLoc™ connector (option 01) for secure and reliable signal connection.

Product Applications

Power Generation: Used for monitoring shaft vibration and displacement in steam turbines, water turbines, and gas turbines.

Petrochemical: Applied to large units such as centrifugal compressors, blowers, pumps, and extruders.

Metallurgy: Used for high-speed gearboxes and large fans.

Process Industry: Condition monitoring of critical rotating equipment such as air separation units and gearboxes.
