The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and canmeasure both static (position) and dynamic (vibration) values. The system'sprimary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor' reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advanced performance in our eddycurrent proximity transducer systems. The standard 3300 XL 8 mm 5-metresystem also fully complies with the American Petroleum Institute's (APl) 670Standard (4th Edition) for mechanical configuration, linear range, accuracy, andtemperature stability. All 3300 XL 8 mm proximity transducer systems providethis level of performance and support complete interchangeability of probes,extension cables, and Proximitor sensors, eliminating the need to match orbench calibrate individual components

Frequently Asked Questions

Q1: What does the complete part number 330103-00-07-20-02-CN represent?

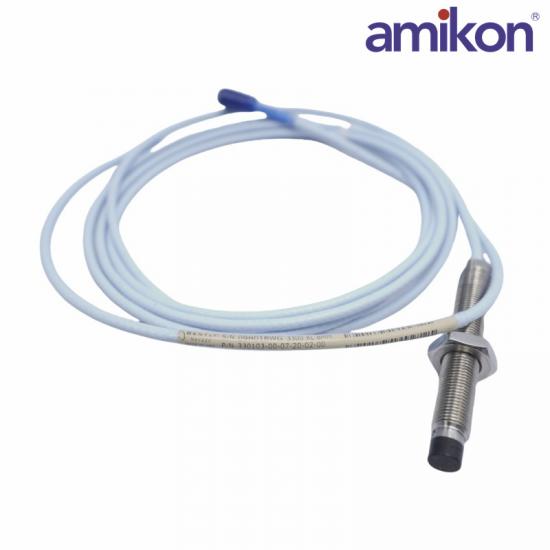

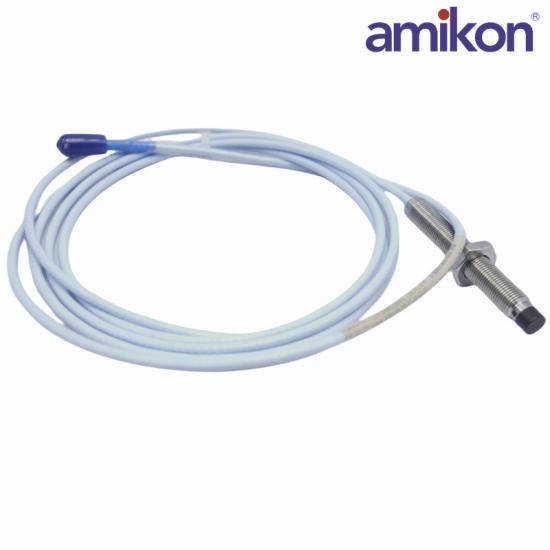

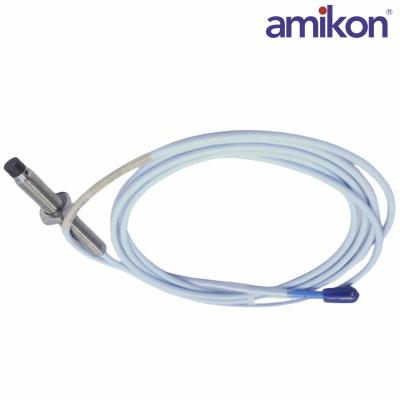

A1: It is a Bently Nevada 3300 XL 8mm reverse-mount proximity probe with a 0mm unthreaded length, 70mm case length, 2.0-meter total cable length, miniature coaxial ClickLoc connector, and CN (China) hazardous area approvals.

Q2: What is the significance of the "330103" prefix?
A2: "330103" specifies that the probe is an 8mm sensor designed for reverse-mount housing applications, typically featuring an M10×1 thread.

Q3: What is the total electrical length of this specific probe?
A3: The "-20" option dictates a 2.0-meter system length. It must be paired with an 8.0-meter extension cable to match a standard 5.0-meter or 9.0-meter Proximitor system (depending on the Proximitor config).

Q4: What is the linear range of this 8mm eddy current probe?
A4: The standard linear range is 2.0 mm (80 mils), starting at approximately 0.25 mm (10 mils) from the target face up to 2.25 mm (90 mils).

Product Applications
Power Industry: Steam turbine generator sets and hydroelectric turbine units in large thermal power plants.
Oil and Gas: Centrifugal compressors, large fans, gas turbines, and pumps in oil refineries and chemical plants.
Metallurgy and Mining: Blast furnace blowers, large rolling mills, and main drive equipment in steel plants.
Coal Chemical Industry and Heavy Industry: Large compressor units and various key rotating equipment in air separation units.
