The system provides an output voltage that is directlyproportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system'sprimary applications are vibration and positionmeasurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advancedper formance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Frequently Asked Questions

Q1: What does the base model number 330103 signify?

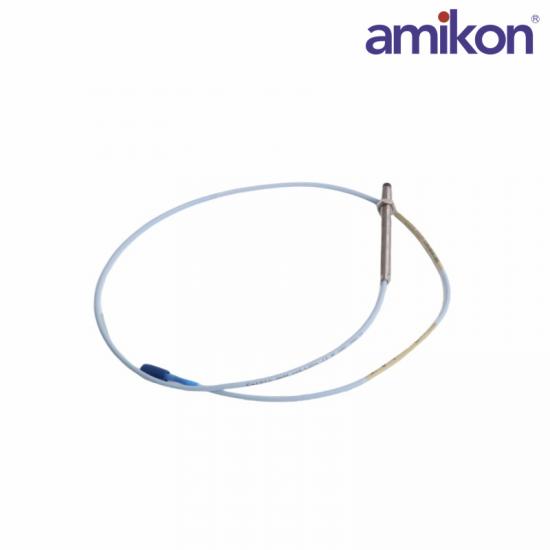

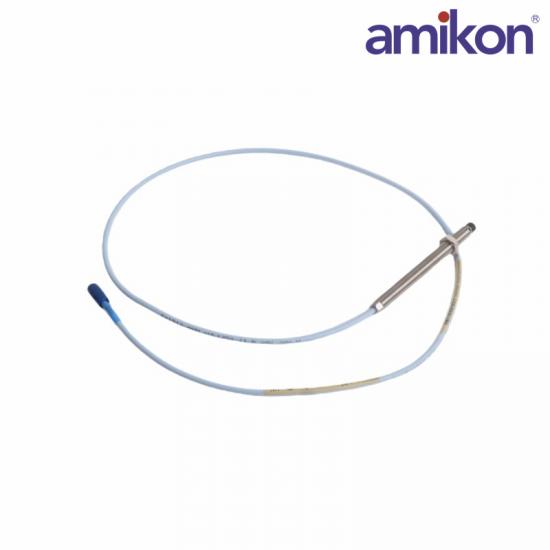

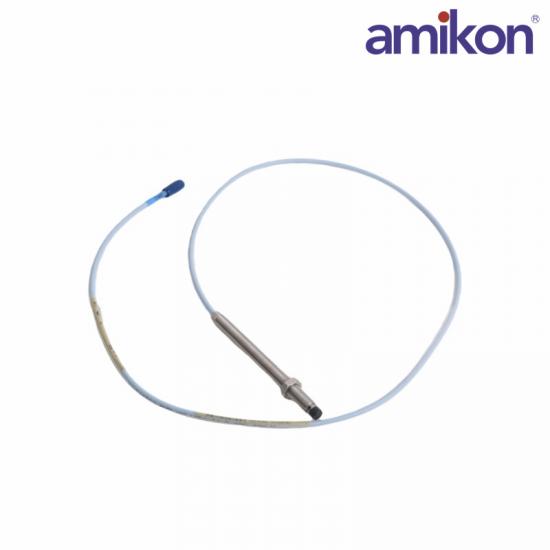

It indicates a Bently Nevada 3300 XL 8mm proximity probe with metric M10x1 threads and no armor.

Q16: What is the minimum target size needed for accurate readings?

The target diameter must be at least 30 mm (1.2 inches) for flat surface monitoring.

Q17: What is the maximum operating temperature for the 330103-00-08-15-02-05 probe tip?

The tip and cable can safely operate in temperatures up to 177 °C (350 °F).

Q21: What is the standard scale factor (ASF) of the system?

The nominal scale factor is 7.87 V/mm (200 mV/mil) when paired with the proper Proximitor.

Product Applications

Oil and Gas: Monitoring of large centrifugal compressors and natural gas compressors

Petrochemicals: Shaft displacement and vibration of various industrial pumps, fans, and large motors

Power and Energy: Bearing vibration and keyphasor speed measurement of steam turbines, gas turbines, and hydroelectric generator sets

Municipal Engineering: Mechanical bearings for large blowers and key fluid dynamic pressure systems in water treatment
