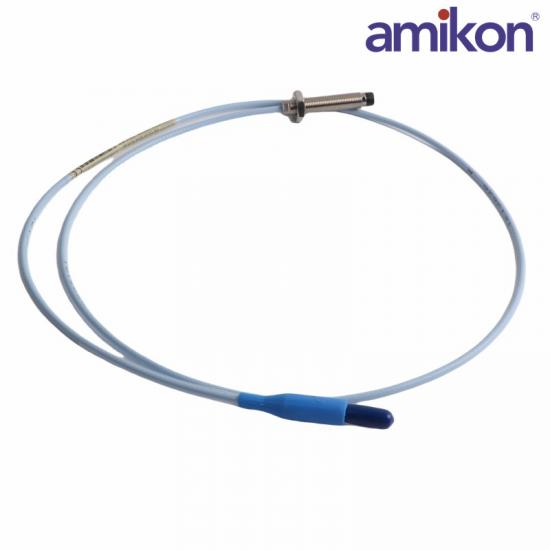

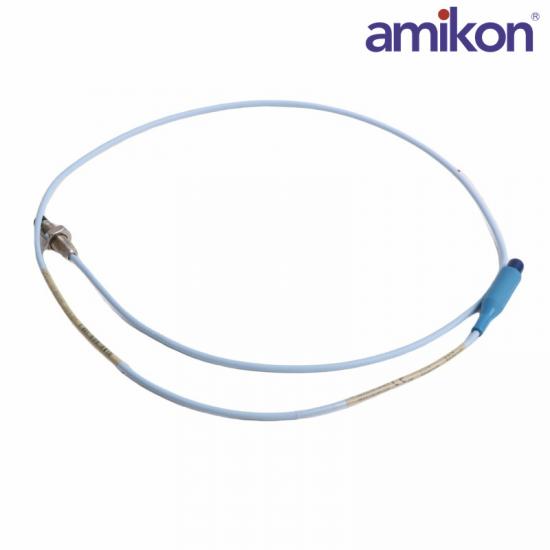

The Bently Nevada 330103-00-10-10-01-05 Proximity Probe is a model from Bently Nevada’s 3300 Series of proximity probes, which are widely used for high-precision displacement and vibration measurement in rotating machinery.

The 330103-00-10-10-01-05 proximity probe operates based on eddy current technology to detect shaft displacement and vibration in rotating machinery. It is a non-contact measurement tool that offers precise, reliable data crucial for condition monitoring and predictive maintenance.

The 330103-00-10-10-01-05 probe uses eddy current technology to measure the distance between the probe and a conductive target. As the distance changes, the probe’s electrical characteristics (impedance) change, providing a direct measurement of shaft displacement.

330103-00-10-10-01-05 Measurement Technology: Eddy current

Measurement Range: ±0.5 inches (±12.7 mm)

Sensitivity: ±0.001 inches (0.025 mm)

Output Signal: 4-20 mA or 0-10 V

Operating Temperature Range: -40°C to 250°C

Storage Temperature Range: -40°C to 100°C

330103-00-10-10-01-05 Operating Voltage: 24 V DC

Cable Length: Typically 10-15 feet (3-5 meters)

Mounting Type: 1/2-20 UNF threaded or custom mounting options

Housing Material: Stainless steel (corrosion-resistant)

Probe Tip Material: Hardened stainless steel

Frequency Response: Suitable for low to high-frequency vibration measurements

Resolution: 0.001 inches (0.025 mm)
