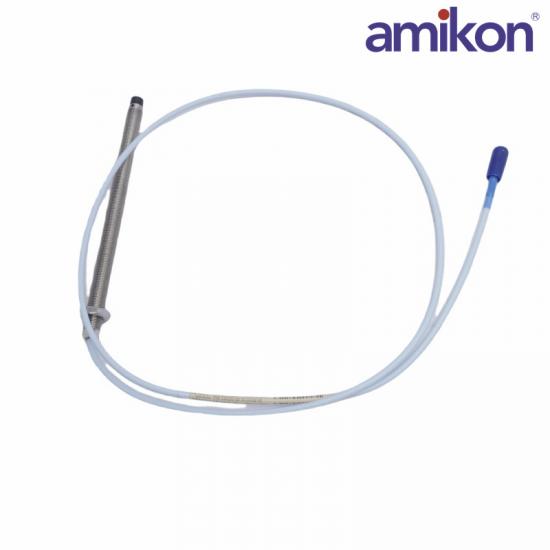

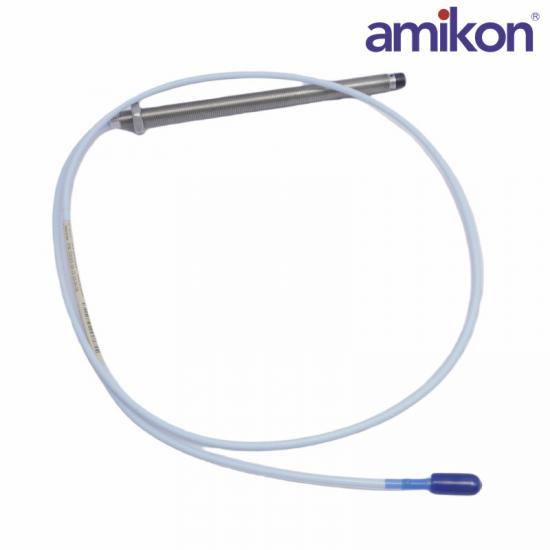

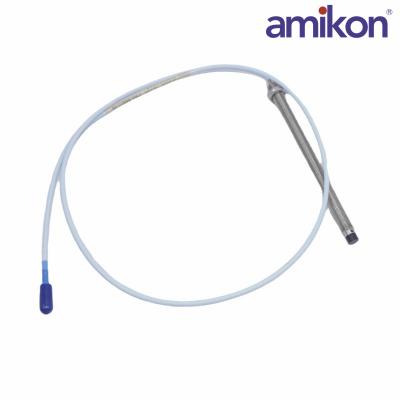

The Bently Nevada 330103-00-15-10-02-00 is an M10 × 1 threaded 3300 XL 8 mm proximity probe developed for use within the 3300 XL 8 mm eddy-current proximity transducer system. When connected to a compatible 3300 XL extension cable and Proximitor Sensor, the probe performs non-contact measurement of the distance between its tip and a conductive shaft surface. The complete system can provide both static shaft-position data and dynamic vibration measurements, making it particularly suitable for machinery protection and condition monitoring on rotating equipment fitted with fluid-film bearings.

The 3300 XL 8 mm system delivers advanced electrical and mechanical performance for demanding industrial monitoring applications. The standard 5-meter system complies with the requirements of API Standard 670, Fourth Edition, including mechanical configuration, linear range, measurement accuracy, and temperature stability. This performance helps provide consistent and repeatable measurement results under changing machine and environmental conditions.

Frequently Asked Questions

Q: What exactly is the 330103-00-15-10-02-00?
A: It is a proximity probe component of the Bently Nevada 3300 XL 8mm Eddy Current Proximity Transducer System.

Q: How does this sensor work?
A: It uses the eddy current principle. The probe tip emits a high-frequency electromagnetic field that interacts with the metal target, measuring gap changes by monitoring impedance shifts.

Q: What does the base part number "330103" specify?A6: It indicates a 3300 XL 8mm Probe with M10×1 metric threads and a reverse mount housing.

Q: What does the first option "-00" mean?
A: It means Unthreaded Length = 0 mm. The probe body is fully threaded from the tip to the back.

Product Applications
Power Industry: Monitoring steam turbines, water turbines, and large generators in power plants.
Petrochemical Industry: Centrifugal compressors, large blowers, and various key pumps used in oil refineries and chemical plants.
Metallurgy and Steel Industry: Monitoring blast furnace blowers, main motors, and high-speed gearboxes in steel plants.
Machinery Manufacturing: Supporting factory testing and condition monitoring of equipment for large fan and pump manufacturers.
