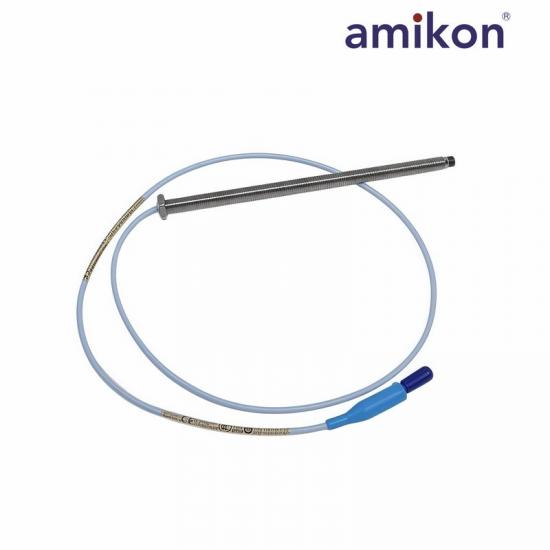

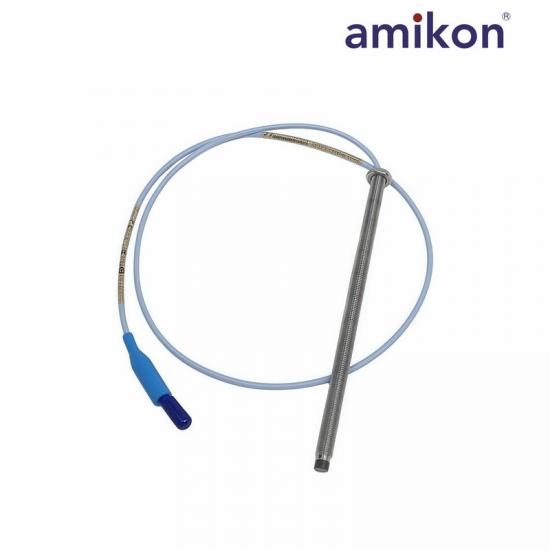

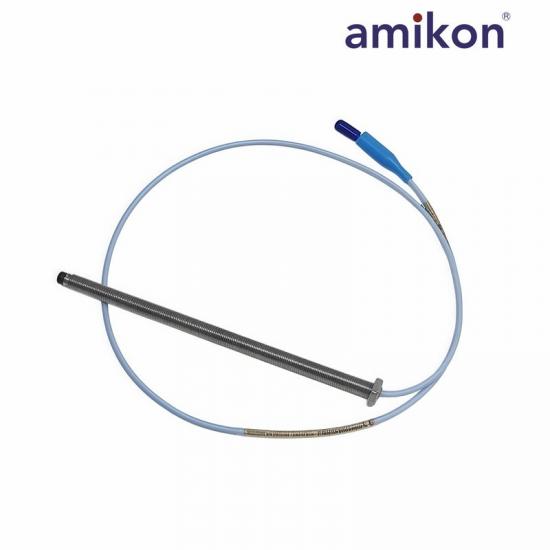

Bently Nevada 330103-00-21-10-11-CN 3300 XL 8 mm M10 FluidLoc Proximity Probe

Bently Nevada 330103-00-21-10-11-CN 3300 XL 8 mm M10 FluidLoc proximity probe
Bently Nevada 330103-00-21-10-11-CN 3300 XL 8 mm M10 FluidLoc proximity probe
Bently Nevada 330103-00-21-10-11-CN 3300 XL 8 mm M10 FluidLoc proximity probe

Bently Nevada 330103-00-21-10-11-CN 3300 XL 8 mm M10 FluidLoc Proximity Probe

✉  INQUIRE NOW

BENTLY NEVADA · 3300 XL 8 MM PROXIMITY SYSTEM

330103-00-21-10-11-CN

M10 × 1 · 210 mm Case · 1.0 m FluidLoc Cable

CASE THREADM10 × 1
UNTHREADED LENGTH0 mm
OVERALL CASE LENGTH210 mm
TOTAL PROBE LENGTH1.0 m (3.3 ft)
CABLE & CONNECTORFluidLoc · Protected ClickLoc
AGENCY CODECN

INDUSTRIAL CONTROL SPARE PARTS PARTNER

20 Years of Experience in Industrial Control Supply

AMIKON supplies industrial control spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    330103-00-21-10-11-CN
Inquire Now

3300 XL 8 MM · M10 × 1 STANDARD PROBE

330103-00-21-10-11-CN

3300 XL 8 mm M10 FluidLoc Proximity Probe

The 330103-00-21-10-11-CN is a Bently Nevada 330103 standard-mount probe for a 3300 XL 8 mm proximity transducer system. Its exact configuration uses an M10 × 1 case without armor, 0 mm unthreaded length, 210 mm overall case length, 1.0 m FEP-insulated triaxial FluidLoc cable and option 11 miniature coaxial ClickLoc termination with a factory-fitted connector protector. The complete CN suffix is preserved for nameplate and certification verification.

Model330103-00-21-10-11-CN
Product TypeProximity Probe
DeliveryDHL · FedEx · UPS
Fast quotation supportSend the model and required quantity directly to Manager Maple using the contact options on the right.

Your AMIKON Contact

MMapleSales Manager
WhatsApp+86 18030132585
Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 330103-00-21-10-11-CN and required quantity.

330103-00-21-10-11-CN

Technical Specifications

Official Bently Nevada technical and ordering data organized for system matching, termination, installation and replacement review.

01
Product IdentityExact probe family and standard 1 m system performance data
ManufacturerBently Nevada, a Baker Hughes company
Complete ordered model330103-00-21-10-11-CN
Base probe330103 metric standard-mount probe
Transducer family3300 XL 8 mm
Linear range2 mm (80 mils)
Incremental scale factor7.87 V/mm (200 mV/mil) ±5% for a standard 1 m system
Frequency response0 to 10 kHz, +0 / -3 dB
Recommended radial gap-9 Vdc, approximately 1.27 mm (50 mils)
02
Cable & TerminationIntegral FluidLoc lead and protected ClickLoc termination
Total probe cable length1.0 m (3.3 ft)
Cable construction75 Ω triaxial, FEP insulated
Connector option 11Miniature coaxial ClickLoc with factory-fitted connector protector
FluidLoc functionHelps prevent oil and other liquids leaking through the cable interior
Extension cableNot used in a 1.0 m system
Minimum cable bend radius25.4 mm (1.0 in)
Maximum connector torque0.565 N·m (5 in·lbf)
ClickLoc tighteningFinger-tight until the connectors click
03
ConstructionProbe materials and exact metric mechanical configuration
Probe tip materialPolyphenylene sulfide (PPS)
Probe case materialAISI 303 or 304 stainless steel
Case threadM10 × 1
Unthreaded length0 mm
Overall case length210 mm
Probe tip diameter8.0 mm (0.31 in)
ArmorNot fitted; 330103 configuration
Maximum tensile strength330 N (75 lbf), probe case to probe lead
04
Ordering & InstallationDecoded ordering fields and installation checks
Ordering structure330103-AA-BB-CC-DD-EE
Code 00 (AA)0 mm unthreaded length
Code 21 (BB)210 mm overall case length
Code 10 (CC)1.0 m total probe length
Code 11 (DD)Protected ClickLoc connector with FluidLoc cable
Agency suffix (EE)CN — verify against the product nameplate and supplied certificate
Matched system lengthUse a 1 m 3300 XL Proximitor Sensor; no extension cable
Metric length ruleCase length must exceed unthreaded length by at least 20 mm

330103-00-21-10-11-CN PRODUCT SUPPORT

Frequently Asked Questions

Compatibility, direct termination, M10 installation, order-code, CN suffix and replacement checks for this exact 330103 configuration.

01

Which Proximitor Sensor is compatible with 330103-00-21-10-11-CN?

Use a 3300 XL 8 mm Proximitor Sensor configured for a complete 1.0 m system. Match the sensor system length, probe family and target calibration before commissioning.

02

Does this 1.0 m FluidLoc probe require an extension cable?

No. Baker Hughes states that one-meter 3300 XL 8 mm systems do not use an extension cable. Connect this probe directly to the compatible 1 m Proximitor Sensor and do not add cable that changes the calibrated system length.

03

What does the complete 00-21-10-11-CN order code specify?

It specifies 0 mm unthreaded length, 210 mm overall case length, 1.0 m total probe length, option 11 FluidLoc cable with a miniature coaxial ClickLoc connector and factory-fitted protector, plus the CN suffix that must be confirmed from the supplied identification and certification.

04

How should the option 11 protected ClickLoc and FluidLoc termination be installed?

Join compatible 3300 XL ClickLoc connections finger-tight until they click. Keep the protected connection clean, avoid twisting the lead, maintain the 25.4 mm minimum bend radius and never exceed the 0.565 N·m connector torque limit.

05

What installation dimensions must be checked for this M10 probe?

Confirm an M10 × 1 mounting interface, 0 mm unthreaded length, 210 mm overall case length, bracket and insertion depth, cable clearance and the required operating gap. The mounting arrangement must not load or sharply bend the integral lead.

06

What must be verified for the CN agency suffix?

The Rev. AM standard ordering table lists agency options 00 and 05 but does not define CN. Keep the complete CN model unchanged and verify its meaning, approvals and installation restrictions against the probe nameplate, supplied certificate and site hazardous-area requirements before use.

07

What must be confirmed before replacing 330103-00-21-10-11-CN?

Match the complete suffix, 330103 unarmored metric construction, M10 × 1 thread, 0 mm unthreaded length, 210 mm case, 1.0 m system length, option 11 protected ClickLoc/FluidLoc termination, CN certification record, compatible 1 m Proximitor Sensor and target material calibration.
