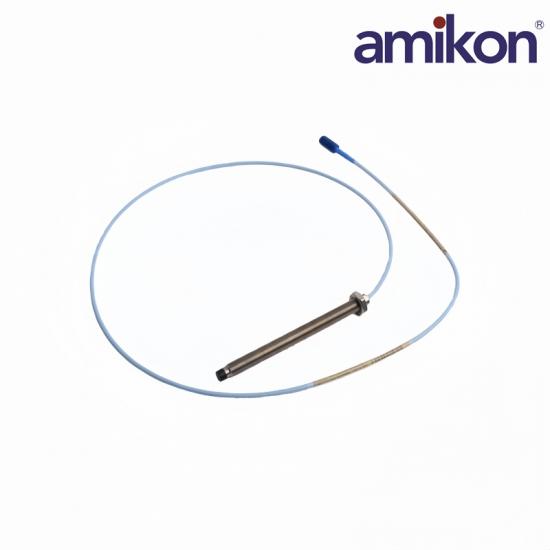

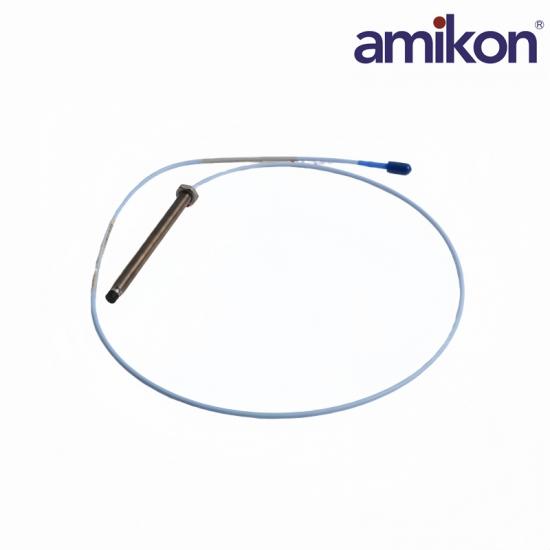

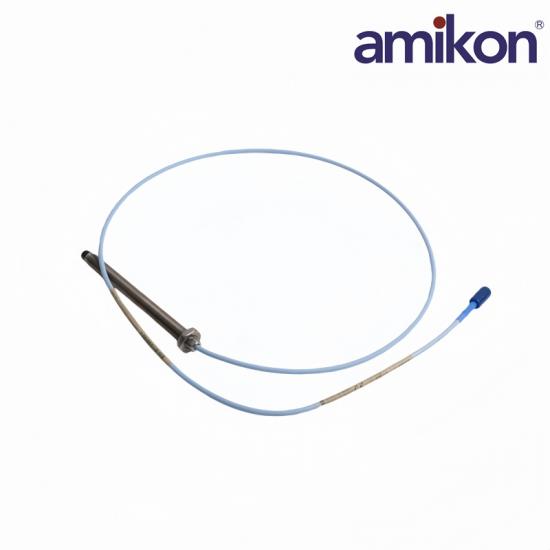

Bently Nevada 330103-02-04-10-02-CN 3300 XL 8 mm M10 Proximity Probe

330103-02-04-10-02-CN
330103-02-04-10-02-CN
330103-02-04-10-02-CN

Bently Nevada 330103-02-04-10-02-CN 3300 XL 8 mm M10 Proximity Probe

✉  INQUIRE NOW

BENTLY NEVADA · 3300 XL Proximity Transducer System

330103-02-04-10-02-CN

3300 XL 8 mm M10 Proximity Probe

MANUFACTURERBently Nevada
MODEL330103-02-04-10-02-CN
PART NUMBER330103-02-04-10-02-CN
PRODUCT TYPE3300 XL 8 mm M10 Proximity Probe
SYSTEM FAMILY3300 XL Proximity Transducer System
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    330103-02-04-10-02-CN

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    Bently Nevada

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

Bently Nevada 3300 XL Proximity Transducer System

330103-02-04-10-02-CN

Price and Availability Inquiry

The Bently Nevada 330103-02-04-10-02-CN is a 3300 XL 8 mm M10 Proximity Probe with M10 × 1 mounting, 20 mm unthreaded length, 40 mm overall case length and a 1.0 m probe lead.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 330103-02-04-10-02-CN and required quantity in your inquiry.

Bently Nevada 330103-02-04-10-02-CN

Technical Specifications

Official order-code, mechanical, cable, interface and system-reference data for 330103-02-04-10-02-CN.

01Product IdentityExact probe identification
ManufacturerBently Nevada
Part number330103-02-04-10-02-CN
Probe series3300 XL 8 mm
Probe bodyM10 × 1, unarmored
02Mechanical ConfigurationOrder-code dimensions and construction
Unthreaded length20 mm
Overall case length40 mm
Probe tip diameter8 mm
Mounting threadM10 × 1
03Cable & InterfaceProbe lead and connection data
Integral probe cable1.0 m
Cable construction75 Ω triaxial, FEP-insulated standard cable
Maximum connector torque0.565 N·m (5 in·lbf)
Connector protectorNot included (option 02)
04Ordering & SystemOrder options and matched-system reference
Approval optionCN, country-specific ordering suffix
Minimum cable bend radius25.4 mm (1.0 in)
Probe DC resistance (1.0 m)7.59 ± 0.50 Ω
Matched-system linear range2.0 mm (complete system)

Bently Nevada 330103-02-04-10-02-CN Product Support

Frequently Asked Questions

Product-specific configuration, installation and ordering guidance for 330103-02-04-10-02-CN.

01

Which dimensions distinguish this short M10 probe from the 80 mm case variant?

This order code specifies a 40 mm overall case and a 20 mm unthreaded section with an M10 × 1 thread. The 330103-02-08-10-02-CN variant instead has an 80 mm overall case.

02

When is the 40 mm case worth checking for a constrained mounting location?

Use the 40 mm case dimension as a mechanical fit criterion where the machine drawing limits available depth; confirm thread engagement and target clearance before installation.

03

How are the lead and extension cable selected for this 40 mm probe?

The integral lead is 1.0 m. Its length plus any 3300 XL 8 mm extension cable must equal the selected Proximitor Sensor's calibrated total system length.

04

How should the standard ClickLoc joint be assembled and protected?

Tighten the gold-plated ClickLoc connector by hand until it clicks. Connector option 02 does not include a protector, so select a compatible protector if the installation requires additional environmental protection.

05

Does the short 330103 case include cable armor?

No. The 330103 base is unarmored; its standard probe lead is 75 Ω triaxial, FEP-insulated cable. Do not treat the electrical cable construction as an armor specification.

06

Which calibration context applies to the published 2.0 mm sensing range?

The range belongs to a complete matched 3300 XL 8 mm system under the manufacturer's specified calibration conditions, normally with an AISI 4140 steel target. Other target materials require calibration review.

07

Which order details prevent confusion with 330103-02-08-10-02-CN?

Check the 04 case-length field for 40 mm rather than the 08 field for 80 mm, then verify the 20 mm unthreaded length, 1.0 m lead, option 02 connector and complete CN suffix.
