Manufacturer: Bently Nevada

Product No.: 330103-02-08-10-02-RU

Unthreaded Length Option: 20mm

Overall Case Length Option: 80mm

Total Length Option: 1.0 meter (3.3 feet)

Temperature Range: -52°C to +260*C (-62°F to +500°F)

Weight: 34 g/m (0.4 oz/ft)

Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical

Output Resistance: 50 Q

Supply Sensitivity: Less than 2 mV

The 3300 XL probe and extension cable also reflect improvements over previous designs. A patentedTipLoc molding method provides a more robust bond between the probe tip and the probe body. Theprobe's cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to moresecurely attach the probe cable and probe tip. You can also order 3300 XL 8 mm probes and extensioncables with an optional FluidLoc cable option. This option prevents oil and other liquids from leaking out ofthe machine through the cable's interior.

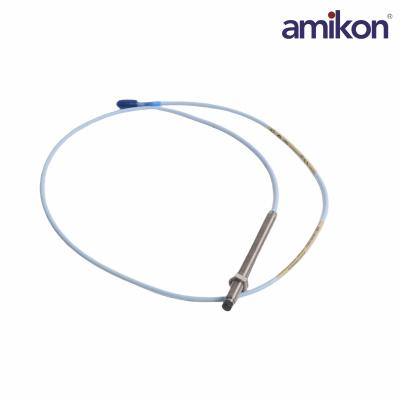

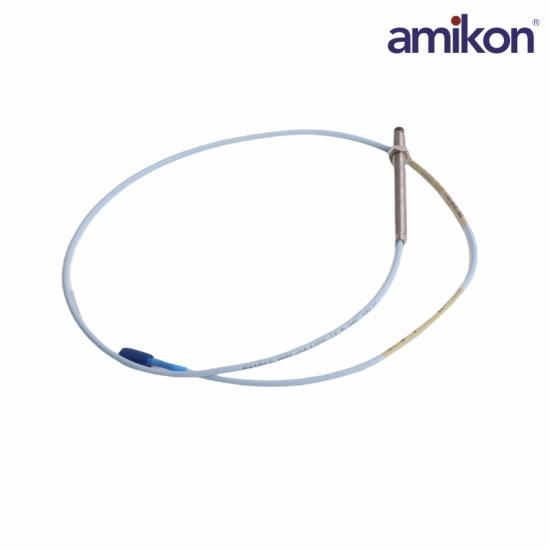

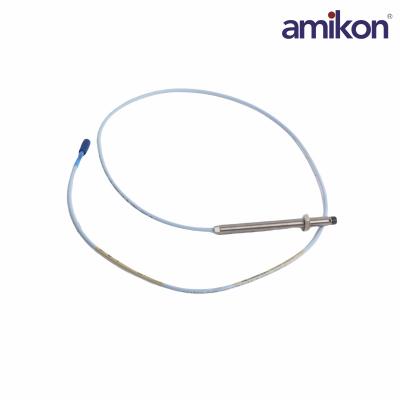

The Bently Nevada 330103-02-08-10-02-RU 3300 XL 8 mm Probe is a high-performance industrialproximity sensor designed for use with the 3300 XL Proximity Transducer System. This 8 mm probe isengineered to provide accurate and reliable vibration monitoring, essential for the predictive maintenanceof industrial machinery. lt is ideal for a wide range of applications, including power generation, oil and gasand manufacturing, where precise measurements of vibration, displacement, and condition are crucial.
