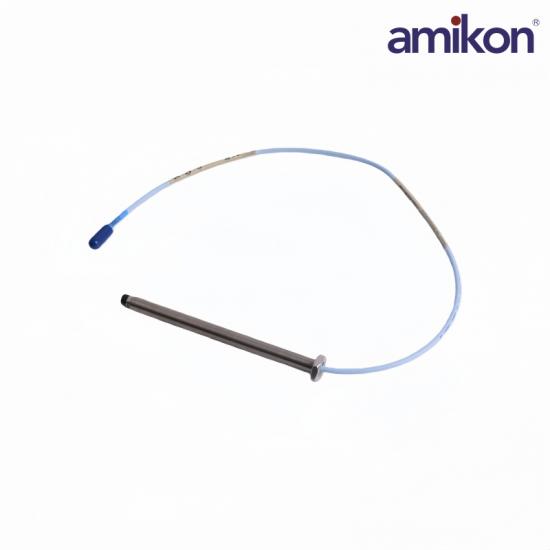

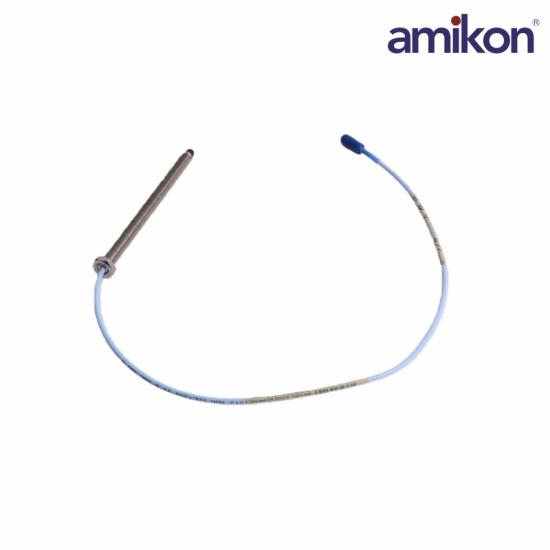

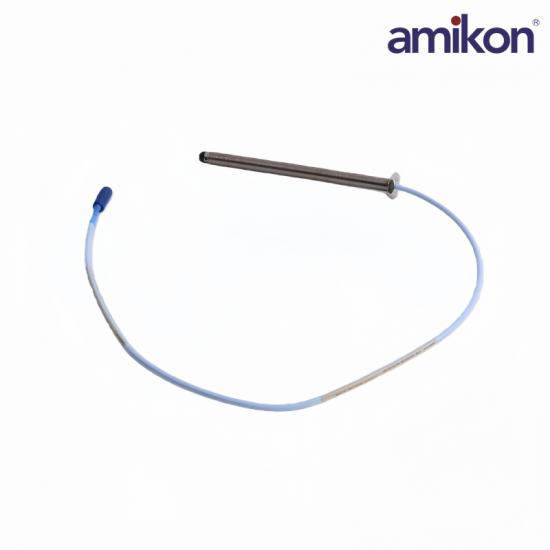

Bently Nevada 330103-08-13-05-02-00 3300 XL 8 mm Proximity Probe

330103-08-13-05-02-00
330103-08-13-05-02-00
330103-08-13-05-02-00

Bently Nevada 330103-08-13-05-02-00 3300 XL 8 mm Proximity Probe

✉  INQUIRE NOW

BENTLY NEVADA · 3300 XL Proximity Transducer System

330103-08-13-05-02-00

3300 XL 8 mm Proximity Probe

MANUFACTURERBently Nevada
MODEL330103-08-13-05-02-00
PART NUMBER330103-08-13-05-02-00
PRODUCT TYPE3300 XL 8 mm Proximity Probe
SYSTEM FAMILY3300 XL Proximity Transducer System
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    330103-08-13-05-02-00

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    Bently Nevada

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

Bently Nevada 3300 XL Proximity Transducer System

330103-08-13-05-02-00

Price and Availability Inquiry

The Bently Nevada 330103-08-13-05-02-00 is a 3300 XL 8 mm proximity probe with M10 × 1 mounting, an unarmored probe with an 80 mm unthreaded section, 130 mm case length, 0.5 m total cable length and miniature coaxial ClickLoc connector.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 330103-08-13-05-02-00 and required quantity in your inquiry.

Bently Nevada 330103-08-13-05-02-00

Technical Specifications

Official order-code, mechanical, interface, performance and environmental data for this 3300 XL 8 mm probe variant.

01Product IdentityExact probe identification
ManufacturerBently Nevada
Order number330103-08-13-05-02-00
Product designation3300 XL 8 mm Proximity Probe
Product family3300 XL Proximity Transducer System
02Mechanical ConfigurationOrder-code dimensions and construction
Mounting threadM10 × 1
Cable armorWithout armor
Unthreaded length80 mm
Overall case length130 mm
03Cable & InterfaceProbe lead and connection data
Total probe length0.5 m
ConnectorMiniature coaxial ClickLoc
Approval optionNo agency approvals required (code 00)
Cable construction75 Ω triaxial, FEP-insulated standard cable
04Performance & Environment3300 XL system-level ratings
Linear range2 mm (80 mils), approx. 0.25–2.3 mm
Nominal scale factor7.87 V/mm (200 mV/mil)
Frequency response0–10 kHz, +0/−3 dB
Probe temperature−52 to +177 °C (standard probe)

Bently Nevada 330103-08-13-05-02-00 Product Support

Frequently Asked Questions

Product-specific configuration, compatibility, application and ordering guidance for 330103-08-13-05-02-00.

01

How is 330103-08-13-05-02-00 configured?

It is a 3300 XL 8 mm probe with M10 × 1 mounting, 80 mm unthreaded length, 130 mm overall case length, 0.5 m total probe length, miniature coaxial ClickLoc connector; approval code 00 means no agency approvals are required.

02

Which mounting thread and armor construction does this variant use?

The probe uses a M10 × 1 mounting thread and is supplied without armor. Match both features when replacing an installed probe.

03

What do order-code fields 08 and 13 specify?

Order-code field 08 specifies an 80 mm unthreaded section, and field 13 specifies a 130 mm case length. The total probe length is 0.5 m.

04

What connector and cable length are specified by this order?

The order specifies a 0.5 m total probe cable and connector code 02, a miniature coaxial ClickLoc connector. Verify the installed extension cable and Proximitor Sensor compatibility for the complete 3300 XL system.

05

What does the final 00 approval option indicate?

Code 00 indicates that no agency approvals are required. Confirm the installed-area approval requirements before selecting a replacement variant.

06

Does this probe alone form a complete 3300 XL transducer system?

No. The probe is one component; use a compatible 3300 XL extension cable and Proximitor Sensor to build a complete calibrated system. System-level performance ratings apply to the complete transducer system.

07

What should be checked before replacing this probe?

Provide the complete order number 330103-08-13-05-02-00 and quantity, then compare the installed M10 × 1 thread, 80 mm unthreaded section, 130 mm case length, 0.5 m lead, connector and approval needs.
