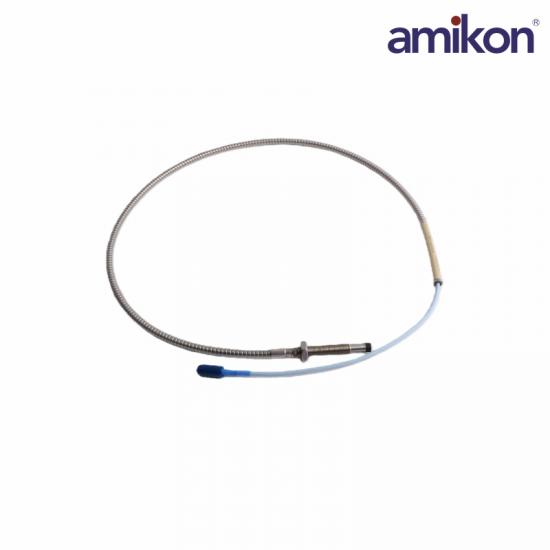

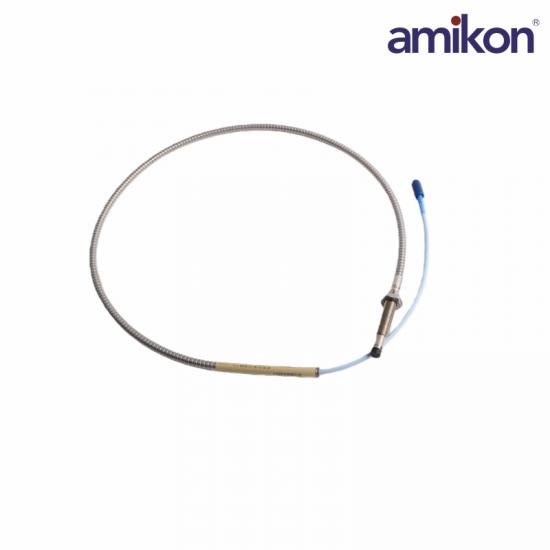

Bently Nevada 330104-00-06-05-02-05 Armored 3300 XL 8 mm Proximity Probe

330104-00-06-05-02-05
330104-00-06-05-02-05
330104-00-06-05-02-05

Bently Nevada 330104-00-06-05-02-05 Armored 3300 XL 8 mm Proximity Probe

✉  INQUIRE NOW

BENTLY NEVADA · 3300 XL 8 mm

330104-00-06-05-02-05

Armored 3300 XL 8 mm Proximity Probe

MANUFACTURERBently Nevada
MODEL330104-00-06-05-02-05
PART NUMBER330104-00-06-05-02-05
PRODUCT TYPEArmored 3300 XL 8 mm Proximity Probe
SYSTEM FAMILY3300 XL 8 mm
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    330104-00-06-05-02-05

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    Bently Nevada

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

Bently Nevada 3300 XL 8 mm

330104-00-06-05-02-05

Price and Availability Inquiry

Bently Nevada 330104-00-06-05-02-05 is an armored M10 × 1 forward-mount probe configured with a 0.5 m (1.6 ft) standard lead for the 3300 XL 8 mm proximity transducer system.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 330104-00-06-05-02-05 and required quantity in your inquiry.

Bently Nevada 330104-00-06-05-02-05

Technical Specifications

Official ordering-code, mechanical, cable, connector and system-compatibility data for the 330104-00-06-05-02-05 metric proximity probe.

01Product IdentityExact ordering-code identification
ManufacturerBently Nevada
Model330104-00-06-05-02-05
Probe series3300 XL 8 mm
Product typeArmored proximity probe
02Mechanical ConfigurationMetric probe geometry
Case threadM10 × 1
Cable armorFlexible AISI 302/304 stainless steel
Unthreaded length0 mm
Overall case length60 mm
03Cable & ConnectorPublished probe-lead construction
Total probe length0.5 m (1.6 ft)
Cable construction75 Ω triaxial, FEP insulated
Connector optionminiature coaxial ClickLoc
Connector protectorNot factory installed
04System & ApprovalIntegration and ordering controls
Probe tip diameter8.0 mm
Minimum bend radius25.4 mm (1.0 in)
System linear range2 mm (80 mils)
Agency approvalCSA, ATEX and IECEx approvals

Bently Nevada 330104-00-06-05-02-05 Product Support

Frequently Asked Questions

Product-specific configuration, application and ordering guidance for 330104-00-06-05-02-05.

01

Which short armored-probe build is identified by 330104-00-06-05-02-05?

330104-00-06-05-02-05 is an M10 × 1 forward-mount 3300 XL 8 mm probe with 0 mm unthreaded length, 60 mm overall case length, 0.5 m (1.6 ft) total lead and stainless-steel cable armor.

02

Which mounting dimensions apply to the 60 mm case of 330104-00-06-05-02-05?

Match the M10 × 1 thread, 0 mm unthreaded length and 60 mm case length. The nominal threaded portion is 60 mm, based on the encoded dimensions.

03

How should the 0.5 m lead of 330104-00-06-05-02-05 be combined with an extension cable?

The probe lead is 0.5 m (1.6 ft). Select the extension cable and Proximitor Sensor so the complete installed transducer system has the required total system length.

04

Which minimum bend radius applies to 330104-00-06-05-02-05?

Connector option 02 specifies a miniature coaxial ClickLoc connector with standard 75 Ω FEP-insulated triaxial cable and no factory-installed connector protector. Observe the published 25.4 mm minimum cable bend radius.

05

Can the armored 330104-00-06-05-02-05 probe be interchanged within the 3300 XL family?

Use it with a 3300 XL 8 mm extension cable and Proximitor Sensor. XL components are interchangeable; mixing with compatible non-XL 3300 5 mm or 8 mm components limits performance to the non-XL system specification.

06

Which certification suffix is ordered on 330104-00-06-05-02-05?

The ordering suffix is 05. The official ordering table identifies CSA, ATEX and IECEx approvals.

07

Which mechanical checks are required before tightening 330104-00-06-05-02-05?

Confirm the complete part number, M10 × 1 mounting thread, encoded case dimensions, 0.5 m (1.6 ft) lead, connector option 02, approval suffix 05, system length and target-material calibration before ordering or commissioning.
