The system provides an output voltage that is directlyproportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system'sprimary applications are vibration and positionmeasurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (APl)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Frequently Asked Questions

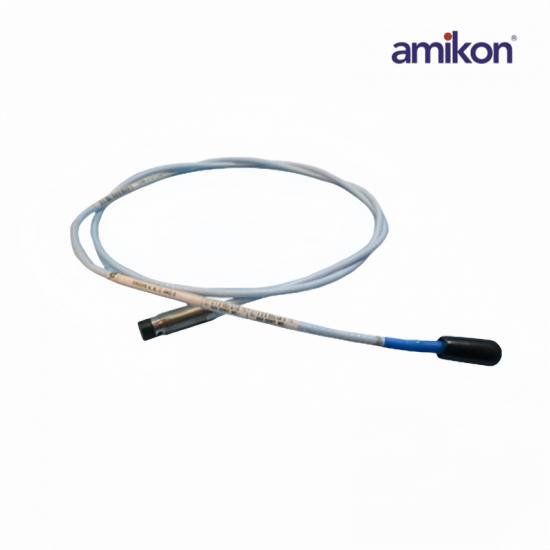

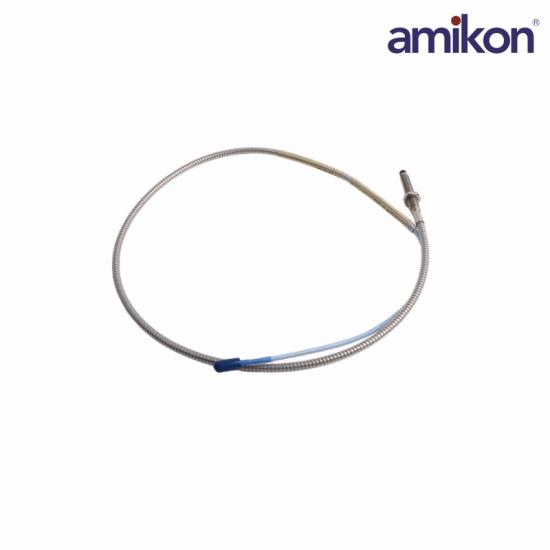

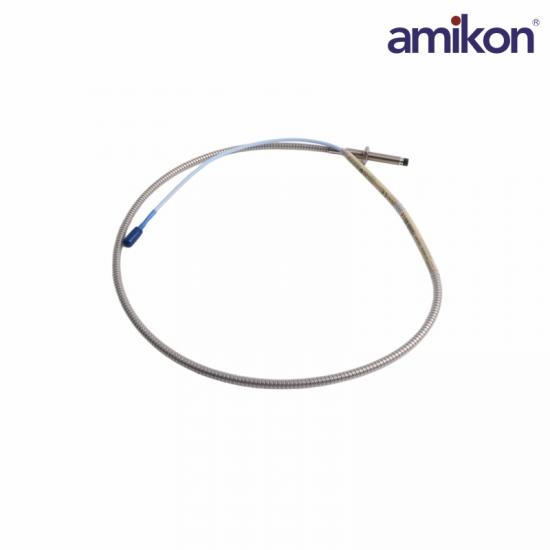

Q1: What is the Bently Nevada 330104-00-06-10-02-CN?

A1: It is a proximity probe used for non-contact measurement of shaft vibration and position in rotating machinery condition monitoring systems.

Q2: What does the “06” overall case length option represent?

A2: “06” indicates an overall case length of 60 mm.

Q3: What does the “10” total length option represent?

A3: “10” specifies a total cable length of 1.0 metre (3.3 feet).

Q4: What connector and cable type does it use?

A4: The “02” option refers to a miniature coaxial ClickLoc™ connector with a standard cable, ensuring secure and reliable connections.

Q5: What is the 330104-00-06-10-02-CN main function of this proximity probe?

A5: It measures shaft displacement and vibration without physical contact, enabling accurate machinery condition monitoring and protection.

Product Applications

Power Industry (Power Plants): Used for monitoring the vibration of main shafts in steam turbines, water turbines, and fans.

Petroleum and Petrochemical Industries: Used for monitoring shaft displacement and speed in centrifuges, compressors, and fans in oil refineries and chemical plants.

Iron and Steel Metallurgy: Used for monitoring the condition of rotating machinery in high-temperature and high-vibration environments.

Mechanical Manufacturing and Fans/Pumps: Applied to rotor dynamics research in various large pumps, fans, and their gearboxes.
