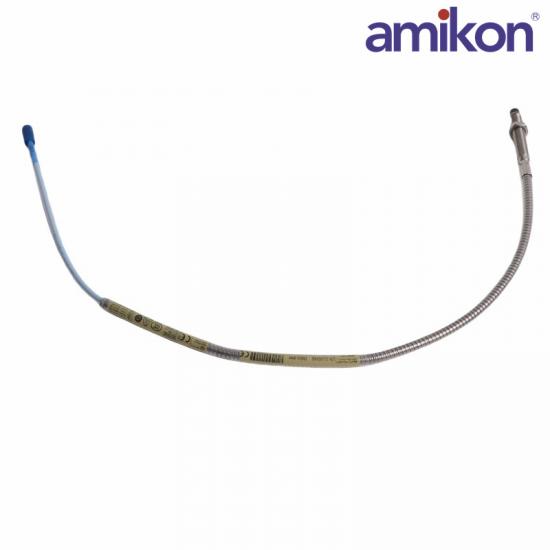

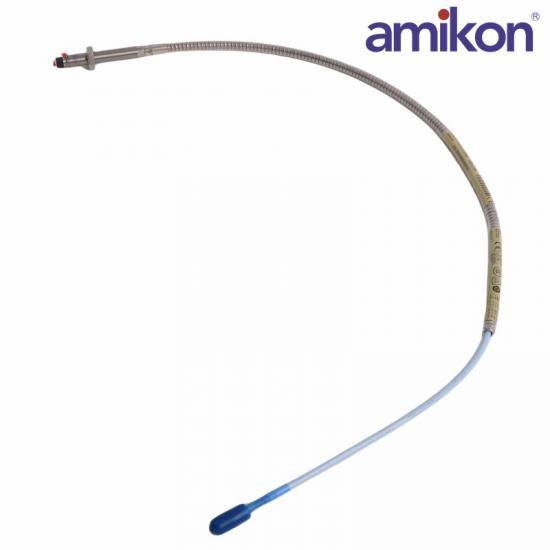

The Bently Nevada 330104-00-06-50-01-00 is a 3300 XL 8 mm Proximity Probe designed for use as part of the 3300 XL 8 mm Proximity Transducer System. Within the complete system, the probe provides non-contact measurement between the probe tip and an observed conductive target surface.

The operating principle of the system is based on an output voltage that is directly proportional to the distance between the probe tip and the conductive surface being observed. As the physical gap between the probe and target changes, the system produces a corresponding change in output voltage.

This proportional relationship allows the 3300 XL 8 mm Transducer System to measure both static and dynamic values. The same proximity measurement principle can therefore be used for different machinery measurement requirements.

Frequently Asked Questions

Q : What does the specific part number 330104-00-06-50-01-00 stand for?
It breaks down as: 330104 (3300 XL 8mm probe with M10×1 thread), -00 (0mm unthreaded length), -06 (60mm case length), -50 (5.0m total length), -01 (Miniature coaxial ClickLoc connector with fluid-resistant cable), and -00 (Standard approvals/No hazardous area certification).

Q : What thread type does the "330104" prefix indicate?
It indicates a standard M10×1 metric thread configuration.

Q : What is the physical measurement area of the 8mm tip?
The 8mm tip measures standard non-contact target distances up to 2.0 mm (80 mils) linear range.

Q : What is the target material used for standard calibration?
The system is factory-calibrated using AISI 4140 steel. Other target metals require recalibration or scaling factors.

Product Applications

Power Generation: Gas turbines, steam turbines, hydro-generator sets, large blowers, feedwater pumps.
Oil & Gas / Petrochemical: Large centrifugal compressors, reciprocating compressors, pyrolysis gas compressors, pipeline pumps.
Iron & Steel: Blast furnace blowers, blast furnace gas residual pressure turbine power generation units (TRT), large rolling mill drive shafts.
Machinery & Machine Tools: High-speed precision spindles, ultra-large industrial gearboxes.
