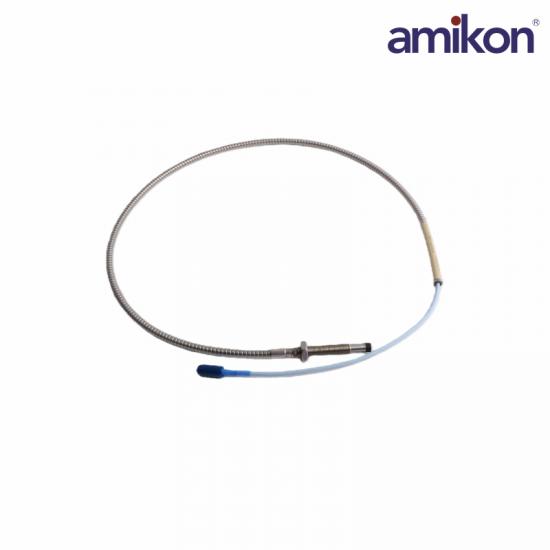

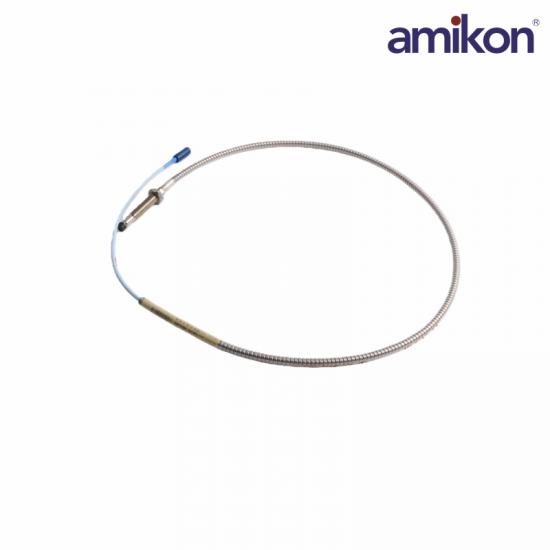

Model: Bently Nevada 3300 XL8 mm Proximity Probe

Product Number: 330104-00-06-50-02-00

Unthreaded Length: 0 mm

Overall Case Length: 60 mm

Total Length: 5.0 meters(16.4 feet)

Connector Type: Miniature coaxial ClickLoc connector

Cable Type: Standard cable

Agency Approvals: None required

Probe Tip: Polyphenylene sulfide (PPS)

Probe Case: AlSl 303 or 304 stainless steel

Weight: 0.323 kg

Standard Probe: -52°Cto +177°C(-62°F to +350°F)

Extended Temperature Range: -52C to +218C for probe tip; -51C to +260°C for cable and connector

Power Supply: -17.5 Vdc to -26 Vdc (12 mA max

The Bently Nevada 3300 XL 8 mm Proximity Probe (Part No. 330104-00-06-50-02-00)is for precision measurement in industrial applications, offering robust and reliableperformonce. tfeotures  mnioture cooxial Cickoc connectorond stondard coble, designed foruse in harsh condtons. The probe's caseis mode of high-quolity AIs 303 or304 stainless steel, ensuring durability and resistance to environmental factors.

Frequently asked questions：

Q: What is the 330104-00-06-50-02-00 maximum operating temperature of the probe?

A: The 330104-00-06-50-02-00 standard probe operates at temperatures up to +177°C, while the extended range can handle up to +218°C for the probe tip.

Q: Can this probe be used in wet conditions?

A: Yes, the 330104-00-06-50-02-00 probe features a FluidLoc cable option to prevent liquids from leaking through the cable, making it suitable for harsh environments

Q: What is the 330104-00-06-50-02-00 weight of the probe?

A: The probe weighs approximately 0.323 kg

Q: Can I use this probe with other targets?

A: The system accuracy and specifications are optimized for AlSl 4140 steel targets.
