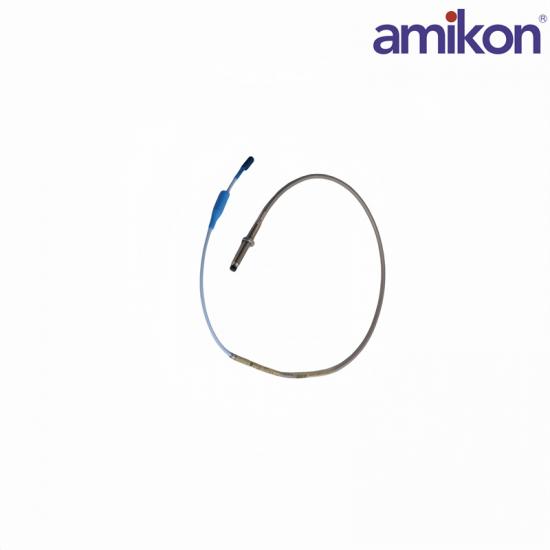

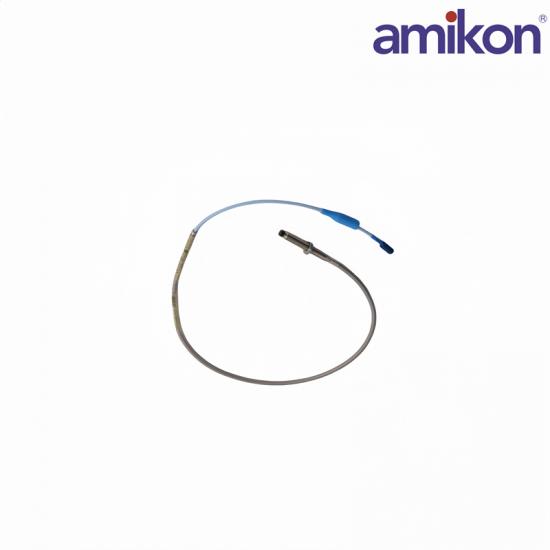

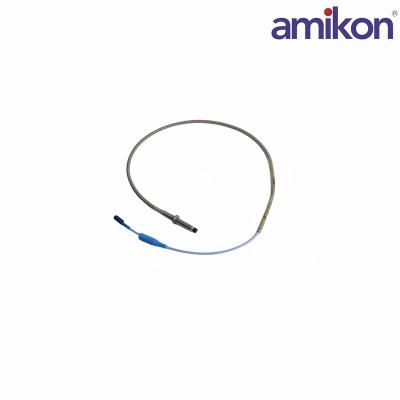

Bently Nevada  330104-00-07-10-01-CN  Proximity Probe

The Bently Nevada 330104-00-07-10-01-CN Proximity Probe is a high-precision sensor used in industrial applications for monitoring the condition of rotating machinery.

Eddy Current Technology: This probe utilizes eddy current sensing technology, allowing it to measure the displacement and vibration of machinery without physical contact. This technology is crucial for monitoring critical machinery such as turbines, compressors, and generators.

Measurement Capabilities: It can accurately measure shaft displacement, with a typical range up to 80 mils (2 mm). This is essential for assessing the health of rotating equipment.

Rugged Construction: Designed for harsh industrial environments, the 330104 probe can withstand extreme temperatures (typically from -40°C to +121°C) and high-pressure conditions, making it suitable for oil and gas applications.

330104-00-07-10-01-CN | Proximity Probes | Bently Nevada

Model: 330104 - 3300 XL 8 mm Proximity Probes

Unthreaded Length Option: 00 - 0 mm

Overall Case Length Option: 07 - 70 mm

Total Length Option: 10 - 1.0 metre (3.3 feet)

Connector and Cable Type Option: 01 - Miniature coaxial ClickLoc connector with connector protector, standard cable Unless otherwise noted, the following specifications are for a 3300 XL 8 mm Proximitor Sensor, extension cable and 8 mm probe between +18˚C and +27˚C (+64˚F to +80˚F) at a maximum altitude of 2000 meters,with a -24 Vdc power supply, a 10 kΩ load, an AISI 4140 steel target, and a probe gapped at 1.27 mm (50 mils).

Accepts one non-contacting 3300-series 5 mm, 3300 8 mm or 3300 XL 8 mm Proximity Probe and Extension Cable.

Power Requires -17.5 Vdc to -26 Vdc

without barriers at 12 mA maximum consumption, -23 Vdc to -26 Vdc with barriers.

Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range.

Less than 2 mV change in output voltage per volt change in input voltage.
