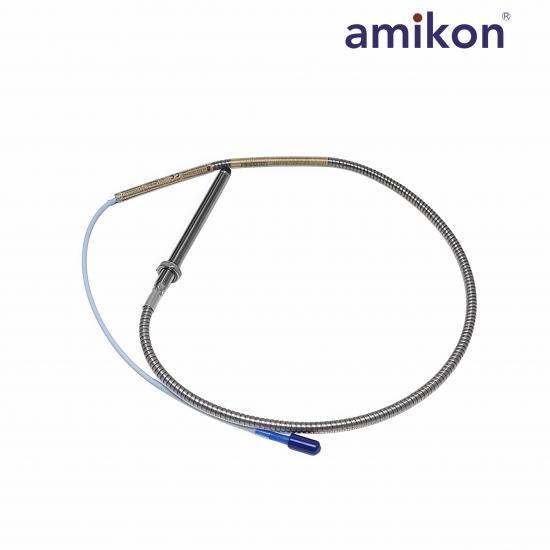

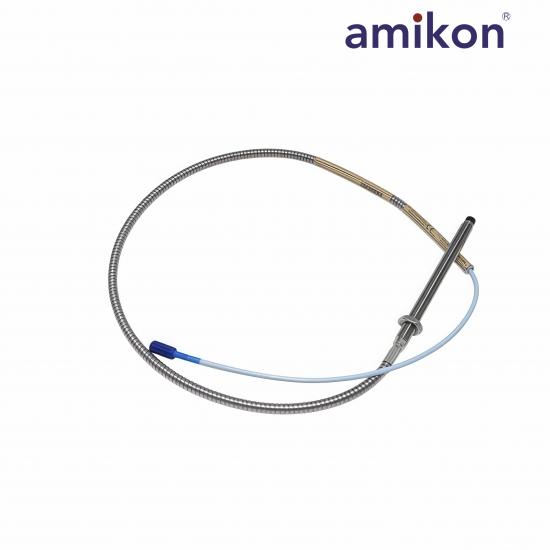

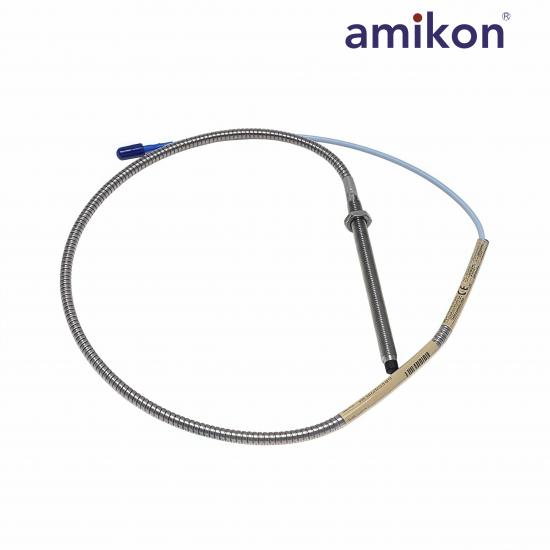

Bently Nevada 330104-00-13-10-02-05 3300 XL 8 mm Proximity Probe

330104-00-13-10-02-05
330104-00-13-10-02-05
330104-00-13-10-02-05

Bently Nevada 330104-00-13-10-02-05 3300 XL 8 mm Proximity Probe

✉  INQUIRE NOW

BENTLY NEVADA · 3300 XL 8 MM PROXIMITY SYSTEM

330104-00-13-10-02-05

3300 XL 8 mm Proximity Probe

MANUFACTURERBently Nevada
MODEL330104-00-13-10-02-05
PART NUMBER330104-00-13-10-02-05
PRODUCT TYPE3300 XL 8 mm Proximity Probe
SYSTEM FAMILY3300 XL 8 mm Proximity System
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    330104-00-13-10-02-05

  • Product Origin:

    USA

  • Brand/Manufature:

    Bently Nevada

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

3300 XL 8 MM · M10 × 1 ARMORED PROBE

330104-00-13-10-02-05

3300 XL 8 mm Proximity Probe

Bently Nevada 330104-00-13-10-02-05 is an armored 3300 XL 8 mm proximity probe with an M10 × 1 thread, 0 mm unthreaded length, 130 mm overall case length and 1.0 m total length. Option 05 identifies CSA, ATEX and IECEx approvals in the official ordering information.

Model330104-00-13-10-02-05
Product TypeProximity Probe
DeliveryDHL · FedEx · UPS
Fast quotation supportSend the model and required quantity directly to Manager Maple using the contact options on the right.

Your AMIKON Contact

MMapleSales Manager
WhatsApp+86 18030132585
Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 330104-00-13-10-02-05 and required quantity.

330104-00-13-10-02-05

Technical Specifications

Manufacturer-verified 3300 XL 8 mm performance, ordering configuration and mechanical data for the exact 330104-00-13-10-02-05 probe.

01
Product IdentityExact model and system family
ManufacturerBently Nevada
Full model330104-00-13-10-02-05
Base part number330104
Product family3300 XL 8 mm
Product typeProximity probe
02
System Performance3300 XL 8 mm transducer data
MeasurementStatic position and dynamic vibration
Linear range2 mm (80 mil)
Nominal scale factor7.87 V/mm (200 mV/mil)
Frequency response0 to 10 kHz, +0 / −3 dB
Recommended radial gap−9 Vdc; approx. 1.27 mm
03
Target & ConstructionMechanical data
Case threadM10 × 1
Unthreaded length0 mm
Overall case length130 mm
Total probe length1.0 m (3.3 ft)
Probe materialsPPS tip · AISI 303 or 304 stainless steel case
04
Cable & ConnectorProbe lead and installation data
Standard probe cable75 Ω triaxial · FEP insulated
ArmorFlexible AISI 302 or 304 stainless steel · FEP jacket
Connector optionMiniature coaxial ClickLoc · standard cable · no protector
Temperature range−52 to +177 °C (−62 to +350 °F)
Agency approvalOption 05 · CSA, ATEX and IECEx

330104-00-13-10-02-05 Product Support

Frequently Asked Questions

Compatibility, performance, installation and ordering guidance for the exact 330104-00-13-10-02-05 probe.

01

How is 330104-00-13-10-02-05 configured?

It is an armored 3300 XL 8 mm probe with an M10 × 1 thread, 0 mm unthreaded length, 130 mm case length, 1.0 m total length, option 02 standard cable and option 05 agency approvals.

02

Which Proximitor system length should be used with this 1.0 m probe?

The official system-length guidance defines the 1.0 m configuration as probe only. Match it to a 1.0 m 3300 XL Proximitor Sensor and do not add an extension cable.

03

What performance should a matched 1.0 m system provide?

With matched 3300 XL 8 mm components, the official data specifies a 2.0 mm (80 mil) linear range and an incremental scale factor of 7.87 V/mm (200 mV/mil) ±5% from 0 °C to +45 °C.

04

Where can this probe be applied?

The 3300 XL 8 mm system is intended for non-contact vibration and position measurements on fluid-film bearing machines, and can also support Keyphasor reference and speed measurements when the application guidance is followed.

05

What should be checked during installation?

Verify the M10 × 1 mounting thread, keep M10 thread engagement at or below 15 mm, set the radial-vibration gap near -9 Vdc (about 1.27 mm or 50 mils), and do not exceed 0.565 N·m connector torque.

06

What does connector option 02 specify?

Option 02 is a miniature coaxial ClickLoc connector with standard cable and no connector protector. Route and protect the connection accordingly.

07

What does agency option 05 mean for ordering?

Option 05 identifies CSA, ATEX and IECEx approvals in Datasheet 141194. Confirm the exact hazardous-area installation requirements against the product label and the current approvals guide.
