Description：

The system provides an output voltage that is directlyproportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system'sprimary applications are vibration and positionmeasurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurementss.

The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (APl)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Specification：

Frequently asked questions

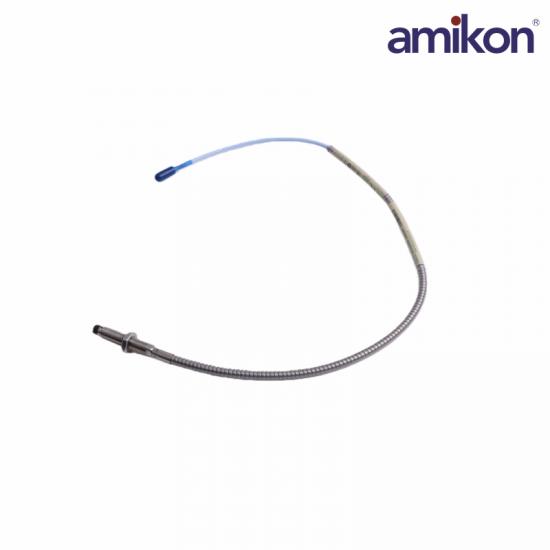

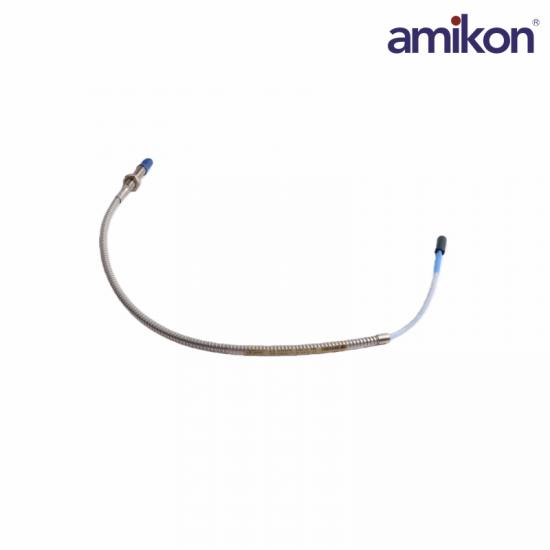

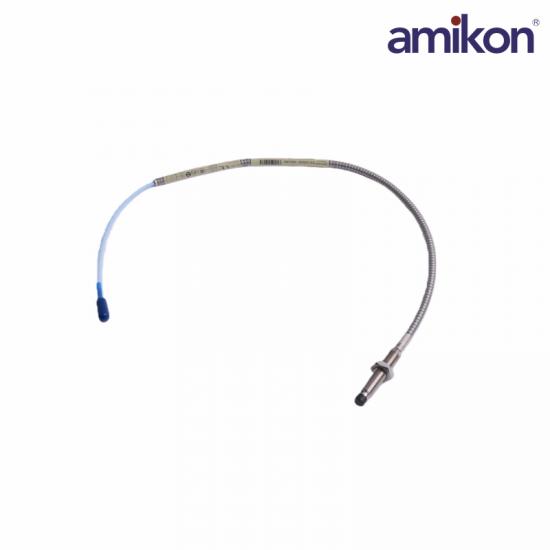

Q1: What is the Bently Nevada 330104-00-20-10-02-05?

A1: It is a proximity probe used for non-contact measurement of shaft vibration and position in rotating machinery monitoring systems.

Q2: What does the “20” case length option represent?

A2: “20” indicates an overall case length of 200 mm.

Q3: What does the “10” cable length option represent?

A3: “10” specifies a total cable length of 1.0 meter (3.3 feet).

Q4: What is the 330104-00-20-10-02-05 operating temperature range?

A4: The 330104-00-20-10-02-05 probe operates within −51°C to +177°C, making it suitable for harsh industrial environments.

Q5: What is the 330104-00-20-10-02-05 main function of this proximity probe?

A5: It measures shaft position and vibration without physical contact, enabling reliable condition monitoring and machinery protection.

Product Applications

Power Plant: Measurement of shaft vibration, shaft displacement, phase angle and rotational speed of steam turbines, water turbines and generator sets.

Refinery and Petrochemical Plant: Online monitoring of high-risk, high-temperature and high-pressure equipment such as large blowers, compressors, air separation units, centrifugal compressors, etc.

Steel Mill and Pump Plant: Vibration analysis of large pumps, gearboxes, bearings.

Natural Gas Industry: Natural gas transmission and processing equipment
